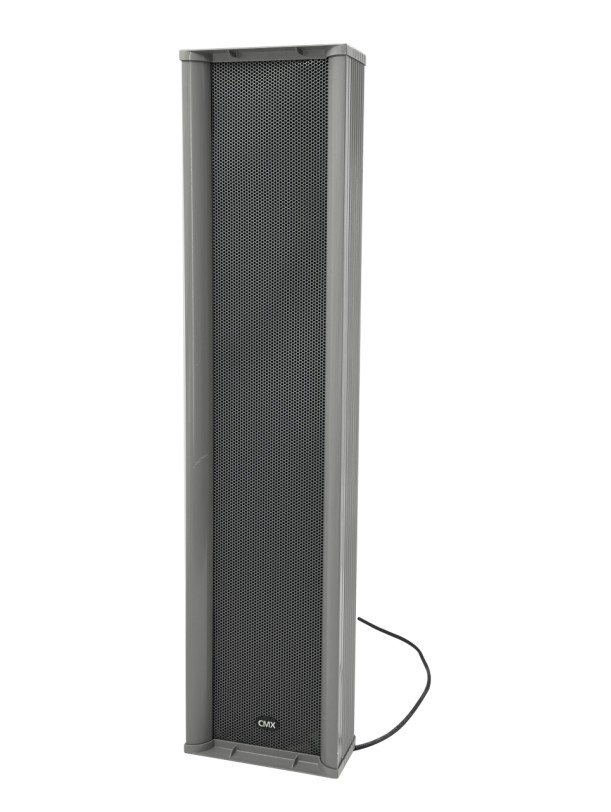

DI-9740B DI-9760B 40W & 60W Outdoor IP Speaker
Waterproof Speaker Weatherproof Speaker IP66 Waterproof Active Speaker Metal Speaker Outdoor Column Speakers IP Speaker IP Audio SolutionsDI-9740B & DI-9760B is IP based active speaker of 40W and 60W two versions, which are built-in ip decoder, amplifier and waterproof speaker for all in one outdoor IP audio solution for park, zoo, mountain area, garden, tourism places etc. One RJ45 port for CAT6 cable communication both for audio signal and control data.
Waterproof Speaker Weatherproof Speaker IP66 Waterproof Active Speaker Metal Speaker Outdoor Column Speakers IP Speaker IP Audio Solutions
Description:
The Outdoor IP Speaker is the main equipment of the IP network PA system. IP Network Outdoor Waterproof Column Speaker is a network all-digital analog-to-digital conversion signal processor with a high-fidelity speaker based on TCP/IP transmission protocol. The modern network playback terminal, with the integrated design of the processor and the column speaker, can be mounted to any place with access to network. The machine can output the remote audio data stream as the audio signal and give a sound directly, with intelligent control of the host.
Feature:
- Outdoor IP speaker for all in one outdoor IP public address or IP PA sound application
- Ideal for park, garden, playground, parking outdoor sound system.
- IP active column speaker with IP decoder, class-d amplifier and two way speaker.
- All metal extruded aluminum alloy enclosure with cast aluminum top and bottom plates.
- IP66 waterproof rated outdoor IP powered column speaker.
- Support to work with exiting LAN/WAN/Internet network.
- Rated power output of 40W/60W and Max 80W/120W two versions.
- Easy and secure installation through the supplied metal mounting brackets.
- By using IP microphone DI-9700TM enable to paging to individual or group or all speakers.
- By using software to create different groups of flexible operation.
- By using server software enable to control different program and volume in remote place.
- By using server software enable to timely broadcast scheduled multiple programs automatically.

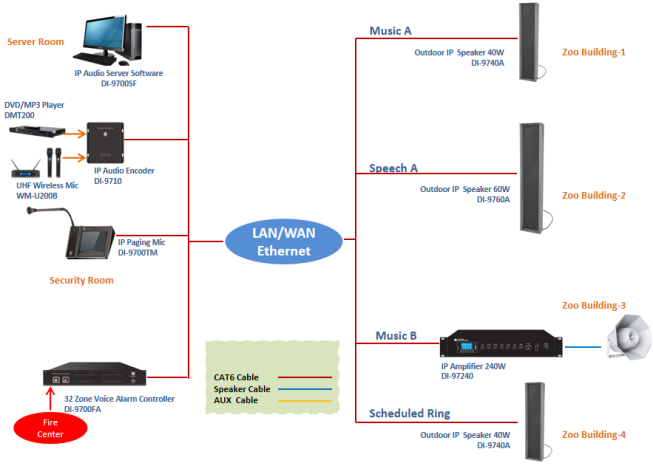

- Basic configuration by server software, IP microphone and IP speaker to set up simple IP sound system.
- Minimum system upgrade cost by add more IP system without exiting system layout change.
Specification:
Model | DI-9740B | DI-9760B |
Description | Outdoor IP Speaker | |
Power Output | 40W RMS & 80W Max | 60W RMS & 120W Max |
Transmit Speed | 10/100Mbps | |
Communication Protocol | TCP/IP, UDP, IGMP (group broadcasting) | |
Audio Format | MP3/MP2 | |
Sampling Rate | 16K~48KHz | |
Transmission Speed | 10/10Mbps | |
Audio Mode | 16 digit stereo CD level | |
Frequency Response | 20Hz~20KHz (+1dB, -3dB) | |
T.H.D | ≤0.3% | |
S/N Ratio | >70dB | |
Connector | one RJ45 port for LAN | |
Indicator | Status and power indicators | |
Material | Aluminum | |
Dimension | 150×125×62mm | 227×125×710mm |
