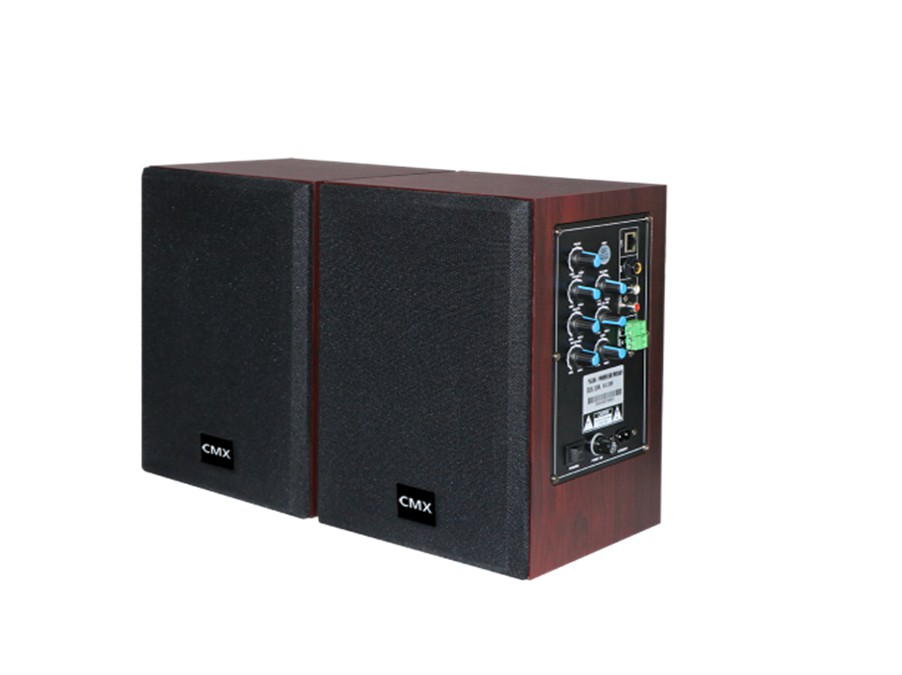

DI-9723 & DI-9723F IP Network Powered Speaker
IP Speaker IP Audio SolutionsDI-9723 is one IP based active speaker, built-in ip decoder, amplifier and speaker all in one solution, work with IP audio software, IP paging call station to set up multiple zone up to 600 IP audio solutions.
IP Speaker IP Audio Solutions
IP Network Powered Speaker
DI-9723 & DI-9723F
Features
- IP network powered speaker with IP addressable network decoder
- IP network audio active speaker package of wooden
- One IP network active speaker DI-9723 and one passive speaker DI-9723F
- The network audio active speaker is built-in network decoder, an active speaker built-in a stereo 20W+20W amplifier and a 20W passive speaker
- Economy solution for multiple room IP audio applications
- Each room only installed one pair of IP active loudspeakers
- Non-dedicated LAN/WAN or Ethernet system of network system
- No need aux cable and speaker cable wiring
- Aux & Microphone input & attenuators, with silent/bass/treble/master/Echo attenuators.
- Control data and aux data transmission both by CAT6 cable via Ethernet
- Wooden cabinet and fabric grille with 6.5”+1.5” two way loudspeaker system
- With wall mount hock bracket for easy installation
- Option: Simplified economy version DI-9723C+DI-9723F
- Option: Wireless Teaching system version DI-9723G+DI-9723F
- Option: 100V in from analog PA system to auto standby as backup when IP PA system failure
Description
IP-9723 is IP powered speaker is an all in one network audio system solution, which is the most convenient audio over internet solution of which no signal cable and no speaker cable wiring is needed. The simplest connection is plug in the RJ45 communication port via CAT6 cable over existing LAN/WAN/Ethernet network, input source, paralleled connect with another passive speaker DI-9723F, power on, then it can communicate with the server and enable all functions of a network audio system. IP-9723 The IP network active speaker is built-in audio decoder, an active speaker with stereo 20W+20W digital amplifier to power another 20W passive speaker DI-9723F. The connectors of this active speaker include one communication control port by RJ45, one 20w power output to amplify another passive speaker, AC power switch, one status and one power indicators. Aux & Mic input & attenuators, with silent/bass/treble/master/Echo attenuators, thus external microphone or media player from local room could be played via this IP loudspeaker. The IP network active speaker is of wall mount design, so it cloud be installed in anywhere of the non-dedicated network. It is high economy solution to use one this package for each classroom, hospital, prison and office such multiple room applications. The biggest advantages of the network audio system are: Super distance audio transmission, simultaneous maximum program task and non-dedicated network wiring. Optional versions of Simplified economy version DI-9723C+DI-9723F and Wireless Teaching system version DI-9723G+DI-9723F, 100V in from analog PA system to auto standby as backup when IP PA system failure.
Specifications
Model | DI-9723 |
Description | IP Network Powered Speaker |
Network Input | Standard RJ45 port |
Transmit Speed | 10/100Mbps |
Communication Protocol | TCP/IP, UDP & IGMP |
Audio Format | MP3/MP2 |
Sampling Rate | 8K~48KHz |
Transmission Speed | 10/10Mbps |
Audio Mode | 16 digit stereo CD level |
Frequency Response | 20Hz~16KHz (+1dB, -3dB) |
T.H.D | ≤0.1% |
S/N Ratio | >70dB |
Power Output | 4Ω, 20W + 20W stereo Class-D amplifier |
Aux Input | One input, 400mV, RCA type |
Connector | one RJ45 port for LAN, one speaker output to passive loudspeaker Aux & Microphone input & attenuators, with silent/bass/treble/master/Echo attenuators. |
Indicator | Status and power indicators |
Working Temp | 5℃ ~40℃ |
Humidity | 20%~80% |
Power Consumption | ≤40W |
Power Supply | ~220V-240V/50Hz |
Dimensions | 260x140x188mm |
Weight | 6Kg |
