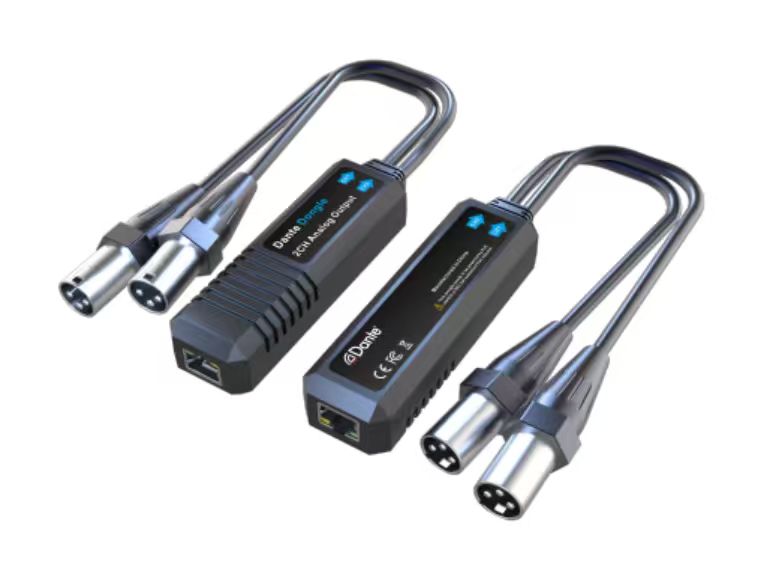

DANTE-XO2 Dante 2CH Analog Output Dongle
Dante Amplifier Dante AudioThanks for choosing the DANTE-XO2. lt connects to your Dante network and supports Analog 0X2 channels audio,allowing analog amplifier to yourDante audio network.
Dante Amplifier Dante Audio
Features
- Plug and Play
- 24-bit audio support
- 0X2 audio channels
- Supports 802.3af PoE
Technical Specification
Audio | |
| Max signal level | +18 dBu |
| Output Gain | -6 dBu |
| Frequency Response | 20Hz to 20kHz(-/+0.5dB) |
| Impedance | 150 Ohm balanced75 Ohm unbalanced |
| Dynamic Range | >100 dB |
| Signal to Noise Ratio | >100 dB |
| THD | <0.01% @+4 dBU |
| Dante | |
| Sample Rate | 44.1kHz,48kHz,96kHz |
| Bit Depth | 24 |
| Dante Device latency | 1,2 or 5ms (configurable using Dante Controller) |
| Model Name | DANTE-XO2 |
| General | |
| Operation Temperature | -510+55℃(+23°to +131°F) |
| Storage Temperature | -25to+70℃(-13°to +158°F) |
| Power | 802.3afPoE |
| Power Consumption | 2.6WIMax) |
| Dimension{W*H*D) | 30x28 x114 mm |
| Cable length | 300mm |
| Net weight | 145g |
