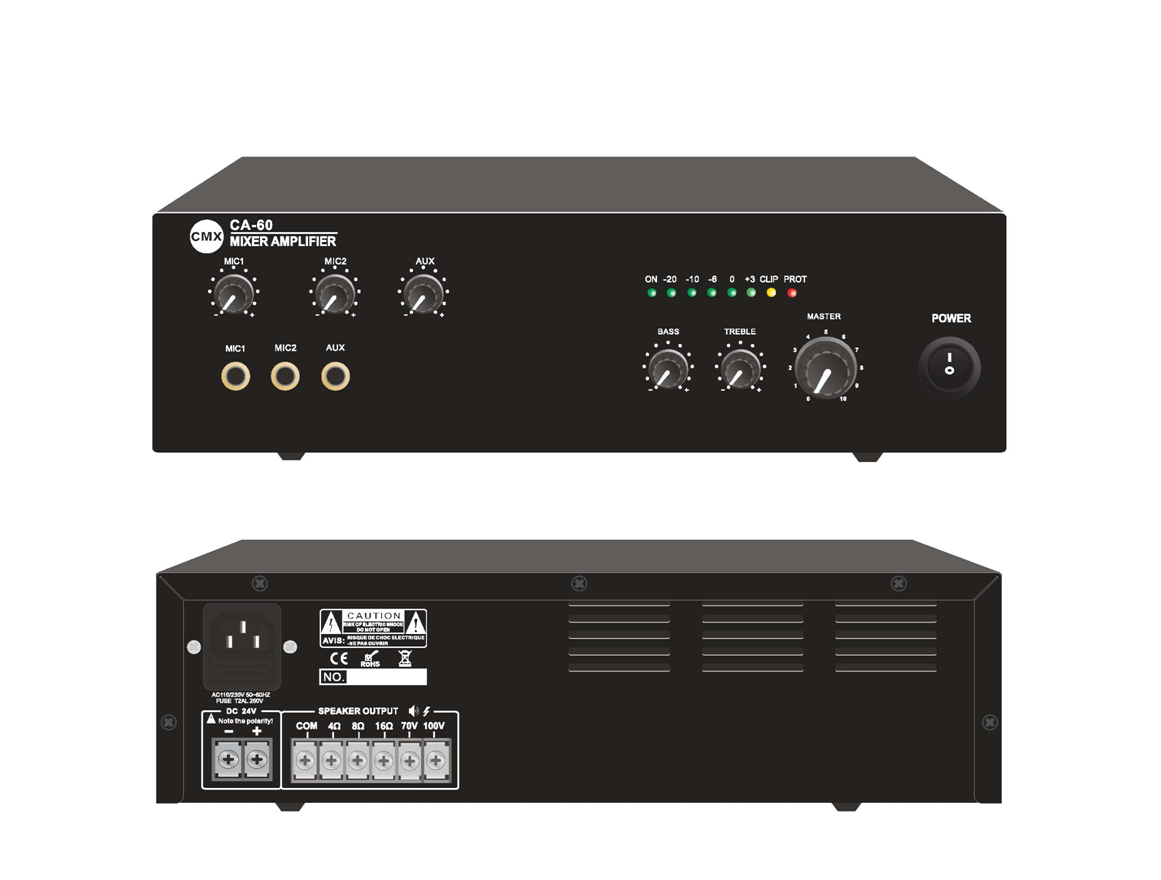

Compact Mixer Amplifier CA-30/CA-60
Mixer Amplifiers PA Amplifiers 100V 70V AmplifiersCA-60 & CA-30 is economy 60 watts & 30 watts mixer amplifier for background music system and paging system, it is tabletop compact size, with 2 mic and aux inputs, support 100V, 70V and low impedance speaker connection.
Mixer Amplifiers PA Amplifiers 100V 70V Amplifiers
Compact Mixer Amplifier
CA-30/CA-60
Feature:
- Compact mini size public address amplifier
- Rate power output at 30W & 60W
- Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
- LED indicators for power, clip, protect and output level meters
- Mic1-2 inputs and Aux input on front panel
- Volume control for Mic1-2, Aux, bass/treble and master
- Complete amplifier protection includes short-circuit, clip, overload and high temp
- 230V AC & 24V DC both power supply system
Specification:
Model | CA-30 | CA-60 |
Description | Compact Mixer Amplifier | |
Rated Power Output | 30W | 60W |
Speaker Outputs | 100V or 70V & 4 Ohm-8 Ohm-16 Ohm | |
Connector | Mic1 input by unbalanced 6.3mm phone jack Mic2 input by unbalanced 6.3mm phone jack Aux input by unbalanced 6.3mm phone jack | |
Input | MIC1-2: 5-8mV, 600Ω; Aux, 150-470mV, 10KΩ, unbalanced | |
Frequency Response | 60Hz-15kHz(±3dB) | |
S/N Ratio | Line ≥ 85dB, Mic≥ 72dB | |
THD | Less than 0.5% | |
Protection | Short-circuit, clip, overload and high temp protection | |
Power Consumption | 60W | 100W |
Power Supply | 230V AC & 24V DC; 50-60Hz | |
Dimension | 320×210×90mm | |
Weight | 3.5kg | 4.0kg |
