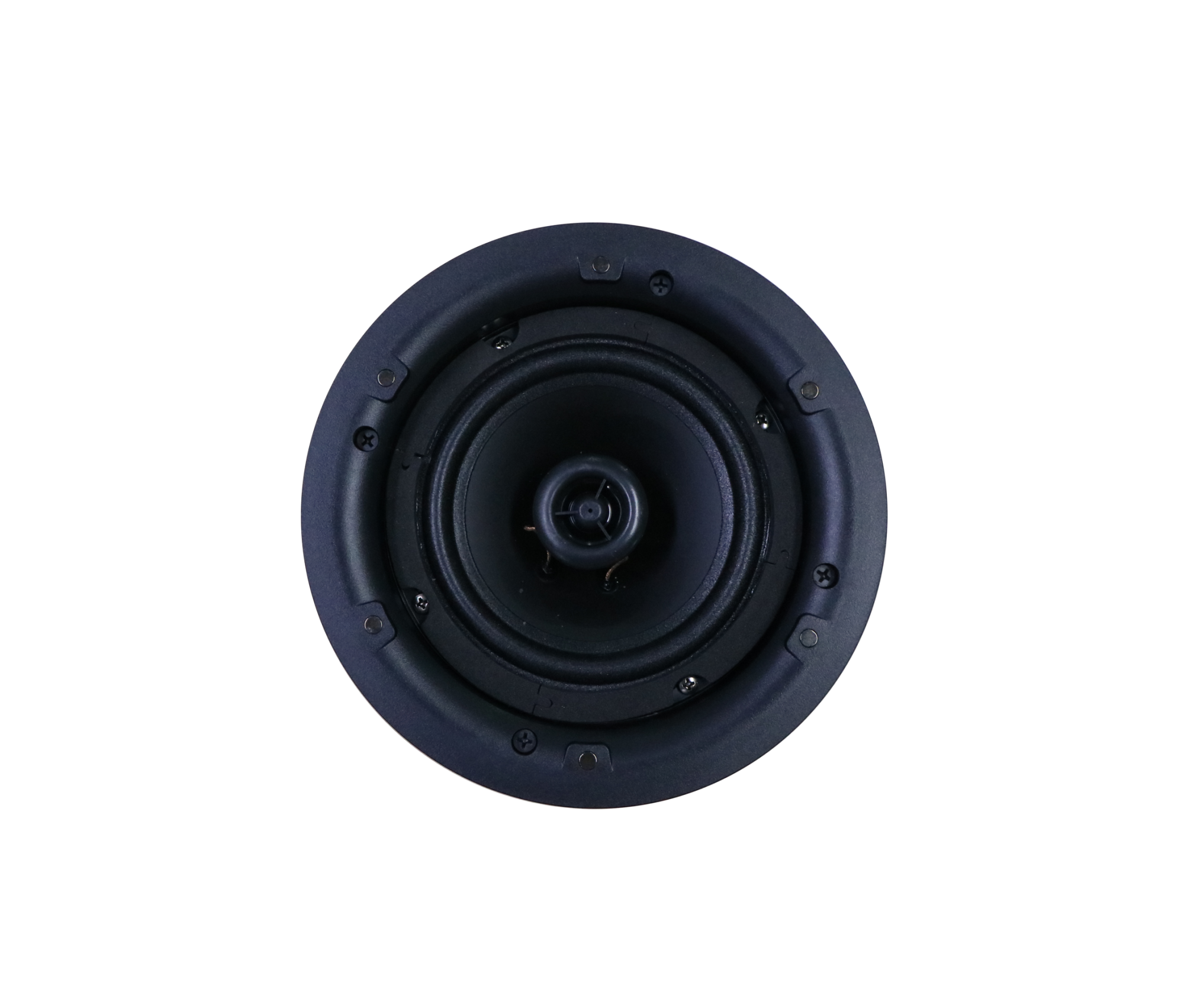

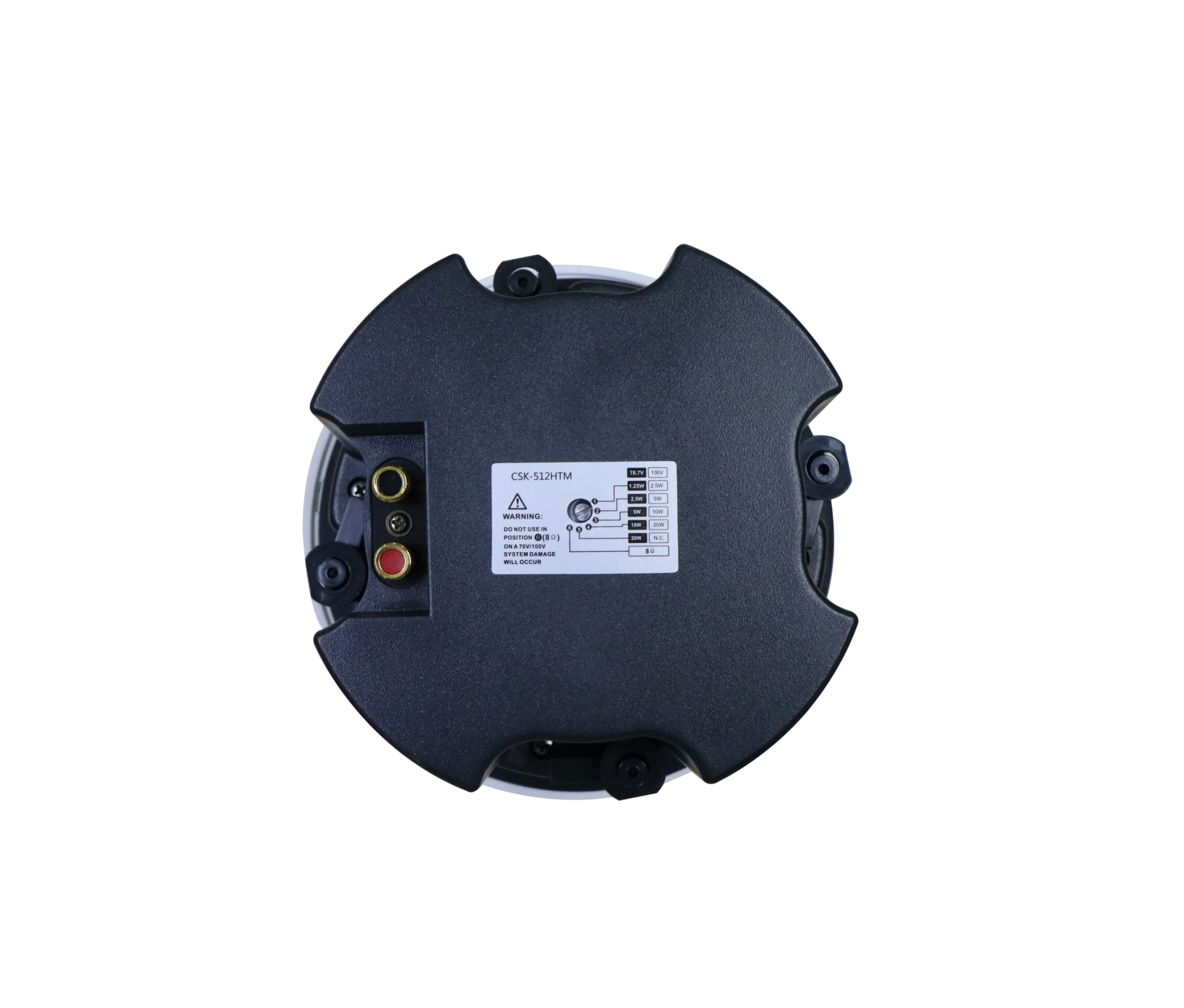

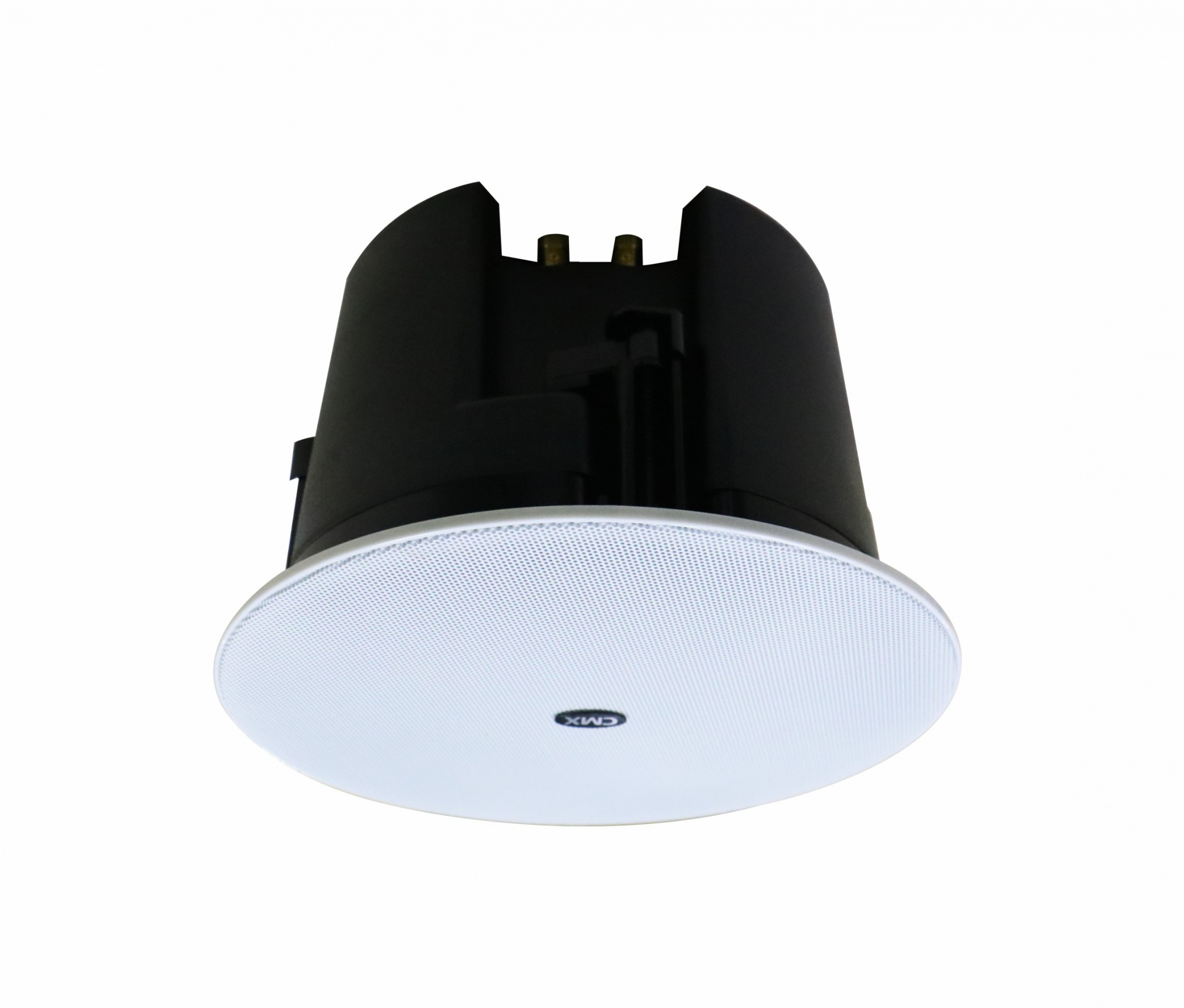

CSK-512HTM 5.25” 2-Way Ceiling Speaker
PA Speakers 100V 70V Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS SpeakerCSK-512HTM 5.25” 2-Way Ceiling Speaker，5.25” bass speaker with 1” tweeter，Power taps of 20W-10W-5W-2.5W & 8 Ohm，hi-flex polypropylene cone main driver for extended low frequency response
PA Speakers 100V 70V Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker
Features:
- High grade slim line 2-way ceiling speaker
- 100V line ceiling speaker with transformer & back can
- hi-flex polypropylene cone main driver for extended low frequency response
- 5.25” bass speaker with 1” tweeter
- Power taps of 20W-10W-5W-2.5W & 8 Ohm
- Magnetic frameless grille& ABS baffle& ABS back can
- Flush mount easy and secure installation
- Exclusive grill design allows true frameless speakers
- Options: CSK-512HT (100V); CSK-512HR ( 8 Ohm, with crossover)
Specifications:
Model | CSK-512HTM |
| Description | 5.25” 2-Way Ceiling Speaker |
| Power Output | 20W/40W Max 8 Ohms |
| Power Taps | 20W-10W-5W-2.5W & 8 Ohm |
| Sensitivity 1W/1m | 89dB |
| MAX SPL | 101dB |
| Frequency Response | 60-20KHz |
| Finish | Baffle: ABS, black; Grille: magnetic steel, white |
| Speaker Driver | 5.25' bass +1' tweeter two way system |
| Cutout Size | Ø 180mm |
| Dimensions | Ø205×130mm |
| Weight | 1.5Kg |

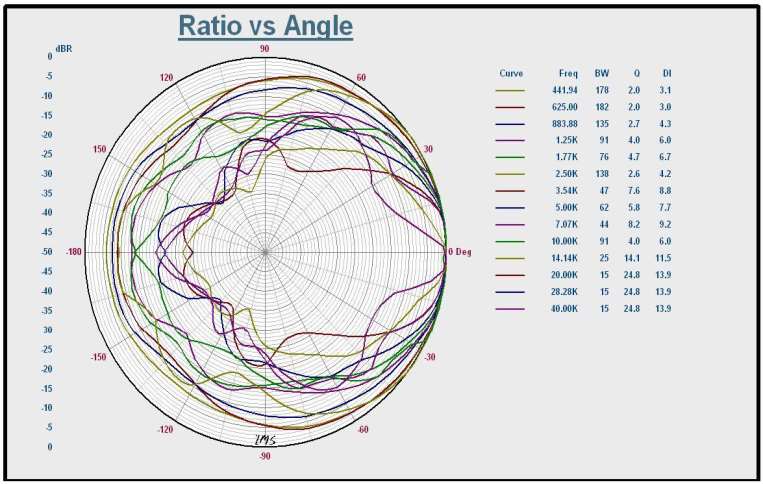

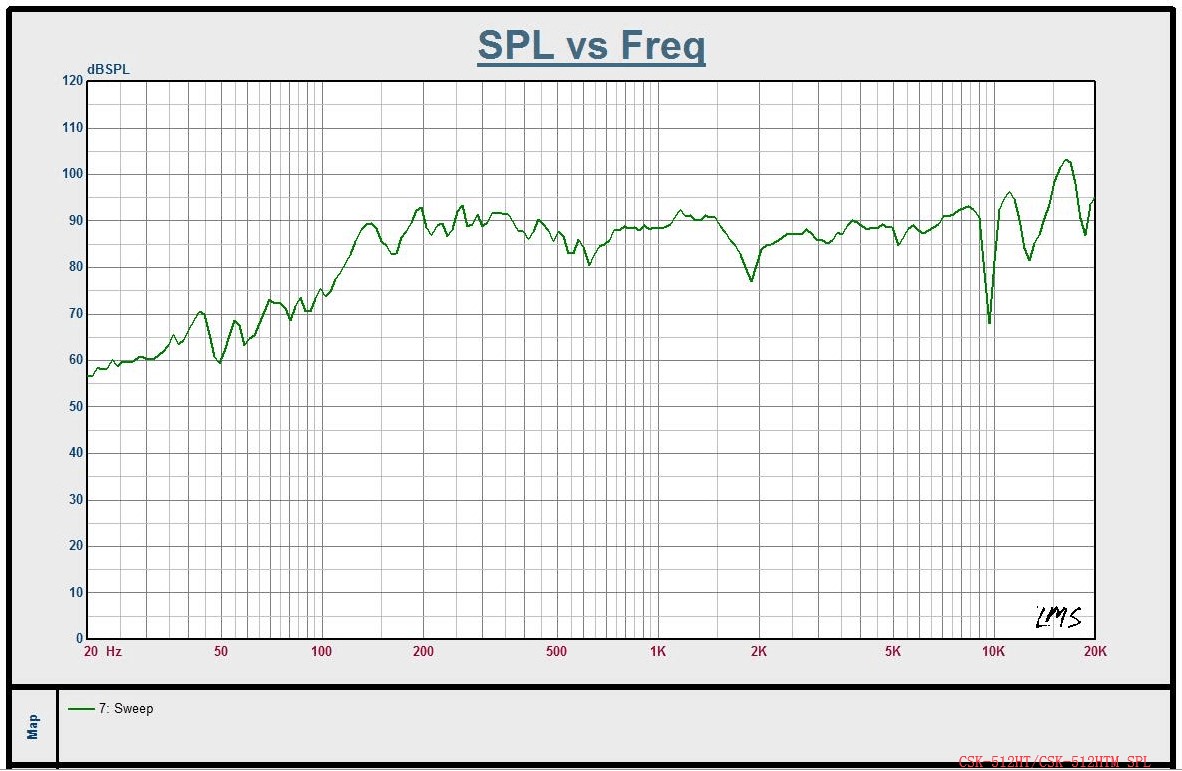

Polar Diagram & Frequency Response:
