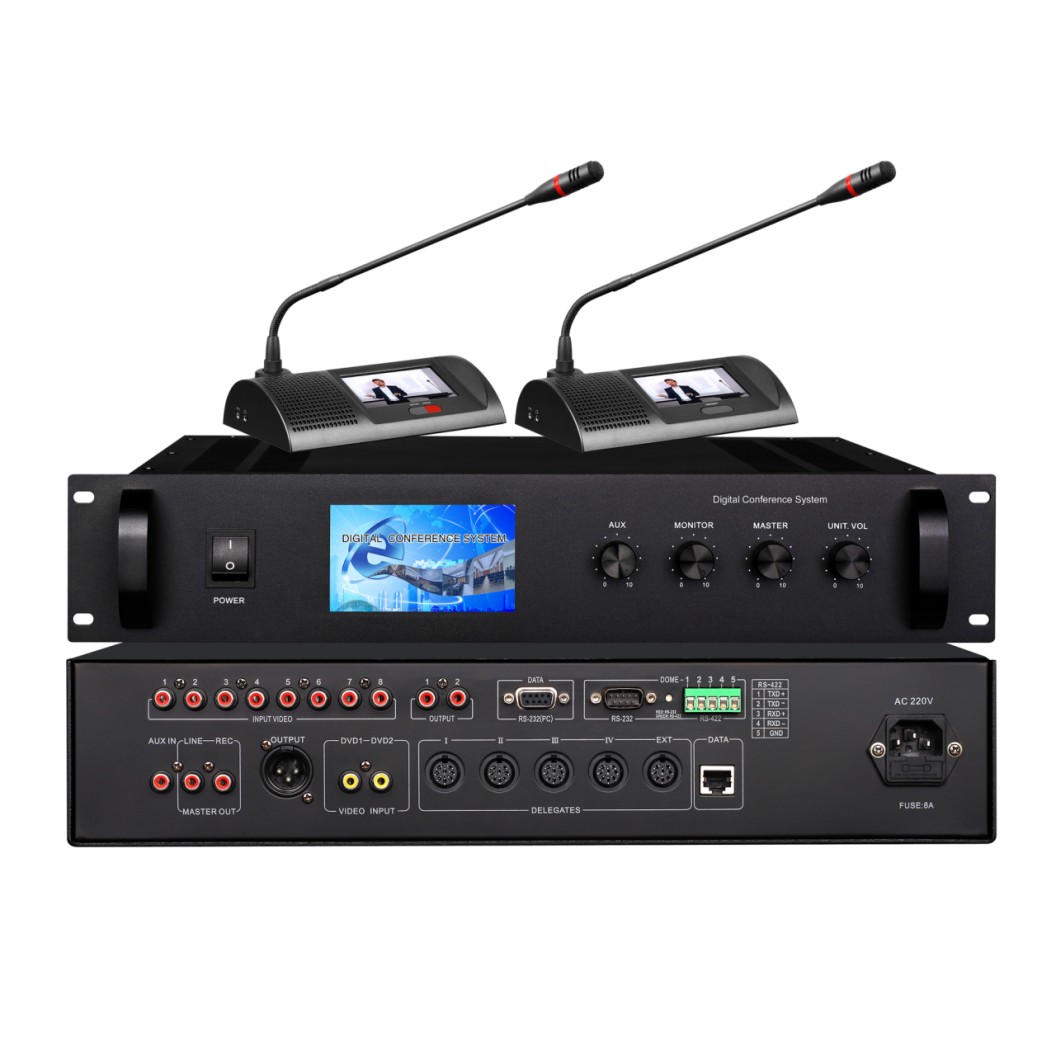

CS-100 Digital AV Conference System Master Controller (Touch Screen) , Chairman Unit S101, Delegate Unit S102
Conference System Digital Conferencing SolutionsDigital AV Conference System Master Controller (Touch Screen) CS-100, Chairman Unit CS-101, Delegate Unit CS-102 is full AV digital conference system is of discussion, voting and contribution system, more features are option to have auto video tracking, recording, simultaneous interpretation system.
Conference System Digital Conferencing Solutions
Digital AV Conference System Master Controller (Touch Screen)
CS-100
Features:
- Designed accordance to ISO9001 and IEC914 standards
- Digital AV conference system with touch screen display for discussion, voting, contribution & auto-video tracking.
- Digital audio conference system integration with video conference system
- Power consumption of main unit 400W, each unit can support 50 units meeting microphone (1 chairman microphone & 49 delegate microphone) and expandable to 600 units by extension controller
- Combing video and audio signal in one cable for central management, sharing and display
- This system can work with computer or without computer after setting
- Master controller and microphone can display videos from camera or external video devices
- Master controller has following features: 1) Manage the meeting with software, support double screen display; 2) Voting function (yes, no & abstain); 3) Electing function (single-ballot and multiple-ballot); 4) Contribution: audience response (100, 75, 50, 25, 0); 5) Auto-video tracking function; 6) Chairman can set following discuss work mode: free mode, FIFO mode(1-9 microphone unit), Limit mode (1-9 microphone unit),etc.
- TFT LCD display panel with touch control function, touch screen on main unit and microphone
- Equipped with 2 video inputs, Five groups of terminal interconnection interface for microphone connection, Build-in RS-232 interface for PC connection, Build-in video processor, support auto video tracking function
- Connection ports: - 1 aux input (RCA) - 1 line output(RCA ) - 1 REC output (RCA )- 1 master output (XLR)- 2 DVD video inputs (RCA)- 8 cameras ( or domes ) inputs ( RCA )- 2 auto-tracking cameras control- 2 video output ( BNC )- 5 mic connectors- 1 computer control connector ( RS-232 )
Specification:
Model | CS-100 |
Description | Digital AV Conference System Master Controller |
System Capacity | 50 units and 600 units by cascaded more extension controller |
Power Supply | AC110V/240V 50Hz/60Hz |
Power Consumption | 400W |
T.H.D. | <0.05% |
S/N Ratio | >75dB |
Frequency Response | 100Hz-18KHz |
Audio Input | RCAx1 |
Audio Output | RCAx2, XLRx1 |
Display | 4.3 inch 24 bit TFT LCD touch screen |
Output Impedance | 47KΩ |
Video Input | BNCx4 RCAx2, 75Ω |
Video Output | BNCx1 |
Control Type | RS-232 |
System Connection | 8-PIN DINx5 |
Dimension | 488x324x84mm |
Net Weight | 10.3Kg |

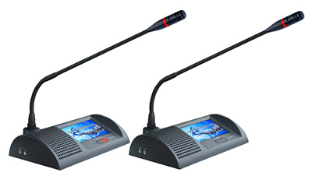

CS-101 Chairman Discussion & Voting Unit (Touch Screen)
CS-102 Delegate Discussion & Voting Unit (Touch Screen)
Features:
- Digital AV conference system of discussion, voting, contribution & auto-video tracking function
- S101 is chairman unit with priority over S102 delegate unit
- Digital video conference system by 8 PIN cable for audio & video transmission
- Super cardioid directive condenser pickup
- Special anti-jamming circuit design without interference with mobile, wi-fi, Bluetooth and radio system
- Each controller supports 10 chairman microphones and 50 delegate microphones
- AV microphone built-in hi-fi monitor speaker
- Built-in 4.3 inch LCD touch screen of 480 x272 resolutions
- The video tracking could be shared and displayed on the microphone LCD
- Support multiple discussion modes: free, first in first out, and limited discussion
- Support free discussion quantity of 1, 2, 3 and 5
- With round ring indicator will be light on when microphone on
- Flexible gooseneck microphone of black color and voice pick up distance up to 15-60cm
- Each microphone with 3.5mm headphone & REC output & volume attenuator
- Power supply direct from digital conference system controller S100
Specification:
Model | CS-101 | CS-102 |
Description | Chairman Unit | Delegate Unit |
System Capacity | 50 units and 600 units by cascaded more extension controller | |
Connection Way | Hand in hand by 8 PIN cable | |
Power Supply | 24V DC by controller CS-100 | |
Power Consumption | 2W | |
Output | ||
Voice Pickup Distance | 15-60cm | |
Sensitivity | -44dB±2dB | |
Max SPL | 125dB | |
THD | <0.05% | |
S/N Ratio | >85dB | |
Frequency Response | 40Hz-20KHz | |
Direction | 0°/180°>20dB, 1kHz | |
Indicator | Red round ring indicator light on when microphone on | |
Gooseneck Length | 410mm or 17” | |
Display | 4.3” Touch screen LCD to display the ID and working status. | |
Connector | 3.5mm headphone and REC output, 2×8 PIN connector | |
Finish | ABS in black | |
Dimension | 217×127×50mm | |
Weight | 1kg | |
