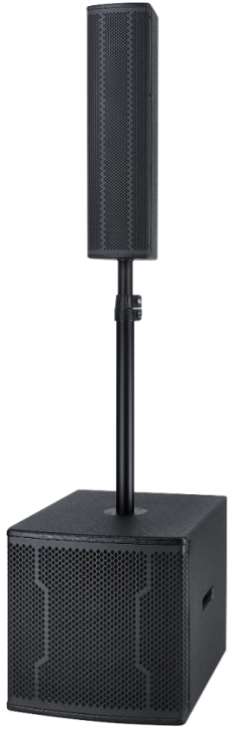

Active Subwoofer & Column Speaker Set ALS-159A
Active Line Array Powered Line Array Portable Line ArrayHigh quality sound reinforcement system with active 15" subwoofer and 9 x 4.5" satellite column speaker, powered by a high efficiency class-D bi-amplifier. Cabinets are made from 15mm MDF and coated in a hard-wearing textured coating with integral carrying handle for the sub cabinet. The column links to the sub via a Speakon® connector and mounts on top with the supplied telescopic pole. The Active subwoofer and column speaker set prominent feature is even sound dispersion level to ensure the li
Active Line Array Powered Line Array Portable Line Array
Features:
- All in one portable sound system set Active Subwoofer & Column Speaker Set.
- Complete set with active subwoofer, column speaker & amplifier with mounting pole &connection lead.
- Built-in DSP (Digital signal processor) with 4 pre-set modes for various live performance & fixed installation.
- Top-level sound quality from 30Hz to 20k Hz ideal for live sound & fixed installation.
- Long distance sound projection and better than 128dB SPL distribution towards the audience.
- Satellite module with 9 x 4.5” drivers paired with an active 15” woofer in a bass reflex enclosure.
- 2400 watt 2-way peak power of powerful but compact design.
- Great and dynamic power performance thanks to bi-amplification system.
- Stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.
- Lightweight and easy to carry for mobile use or rental use.
- Design and elegance for an easy integration even in the most demanding installations.
- Compact dimensions enable the listener to enjoy even sound dispersion no matter distance near or far away.
Description:
High quality sound reinforcement system with active 15" subwoofer and 9 x 4.5" satellite column speaker, powered by a high efficiency class-D bi-amplifier. Cabinets are made from 15mm MDF and coated in a hard-wearing textured coating with integral carrying handle for the sub cabinet. The column links to the sub via a Speakon® connector and mounts on top with the supplied telescopic pole. The Active subwoofer and column speaker set prominent feature is even sound dispersion level to ensure the listener enjoy high quality sound performance no matter distance is near or far away. Clean and understated looks provide a minimal profile whilst delivering powerful and high quality sound projection for performers, DJs and conference.
Specification:
| Model | ALS-159A | |
| Description | Active Subwoofer & Column Speaker Set | |
| Satellite Module | LAS-904D | ALS-15SUB |
| Components | Passive Column Speaker 9X4.5" (25mm) | Active Sub-woofer 1X15"(380mm) |
| Impedance | 8 Ohms | 8 Ohms |
| DSP | 2 In 2 Out DSP with 4 pre-sets | |
| Input | Bal/unbal, XLR, -2dBu/+4dBu | |
| Output | Balanced XLR | |
| Frequency Response | -10dB, Sub: 30-450Hz; Column: 100-18KHz | |
| Max SPL @ 1W/1m | Sub: 133dB; Column: 128dB | |
| Sensitivity @ 1W/1m | Sub: 106dB; Column: 100dB | |
| THD | ≤0.1% @ 1kHz (1W@4 Ohms) | |
| Dispersion | Horizontal: 120°and vertical: 30° | |
| Amplifier | Class-D Bi-amp | |
| Amp Output Power RMS | Sub: 1000W; Column: 600W | |
| Protection | Thermal, RMS, soft limiter | |
| Power Out Max. | 4500 W peak, 2400 W Continuous | |
| Cooling | Convention | |
| Finish | 15mm thickness high density plywood in black | |
| Dimension | 146x1150x150 (mm) | 523×480×580 (mm) |
| Weight | 14kg | 30kg |
