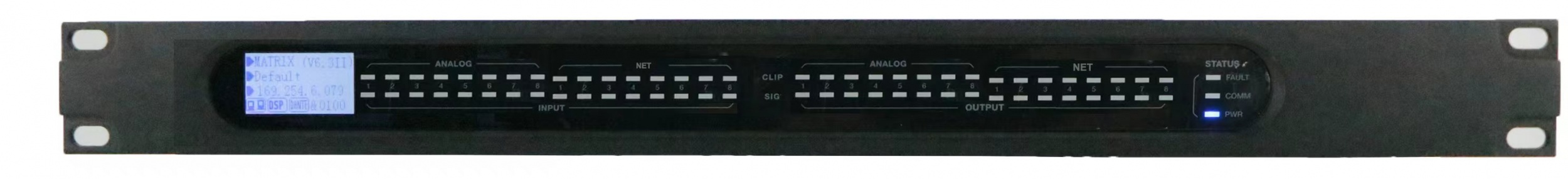

8x8 Digital Matrix with Remote Paging Mic & Remote Panel PA-8000 / PA-8000RM / PA-8000SV
Professional Loudspeakers Digtal Signal ProcessorThe PA-8000 8×8 Matrix with integrated 8×8 phoenix terminal balanced analog I/O (Including 8 Channels) and 8×8 IP audio channels (48/96kHz/24-bit), forming a hybrid simulation-network audio hub. Equipped with a user-programmable DSP processor
Professional Loudspeakers Digtal Signal Processor
Description:
The PA-8000 8×8 Matrix with integrated 8×8 phoenix terminal balanced analog I/O (Including 8 Channels) and 8×8 IP audio channels (48/96kHz/24-bit), forming a hybrid simulation-network audio hub. Equipped with a user-programmable DSP processor.The method achieves acoustic echo cancellation (AEC), adaptive noise suppression (ANS), and a feedback control (AFC) enables real-time processing across all channels. With 2 control ports via dry contacts or RS-485 protocol implementation achieves seamless integration with third-party systems.
Features:
- 8x8 digital matrix system,with 8 analog inputs / 8 analog outputs by phoenix balanced terminal
- Built in LCD display to show information of id,state,name and so on
- Built in DSP processor (digital signal processor),feedback suppression,high-pass filter,low-pass filter,limiter,mute,auto mixer,echo cancellation & noise reduction,gain adjusting,preset management
- With PC software to configure all functions of the editing software
- Support remote paging mic PA-8000RM and remote panel PA-8000SV
- Use TCP/IP for local area network control and audio transmission. Utilize dual network ports for connection, facilitating customers to form a daisy chain and expand control panels, paging stations and other equipment. The maximum support is 100M
- Support RS-485 protocol enables seamless integration with third-party systems
- Support 2 relay port used for future control function
PA-8000SV Remote Control Panel
- Communication through CAT6 cable up to 999 m
- Direct power supply from matrix controller
- Audio sources selection and volume control
- 8 units capacity for each matrix controller

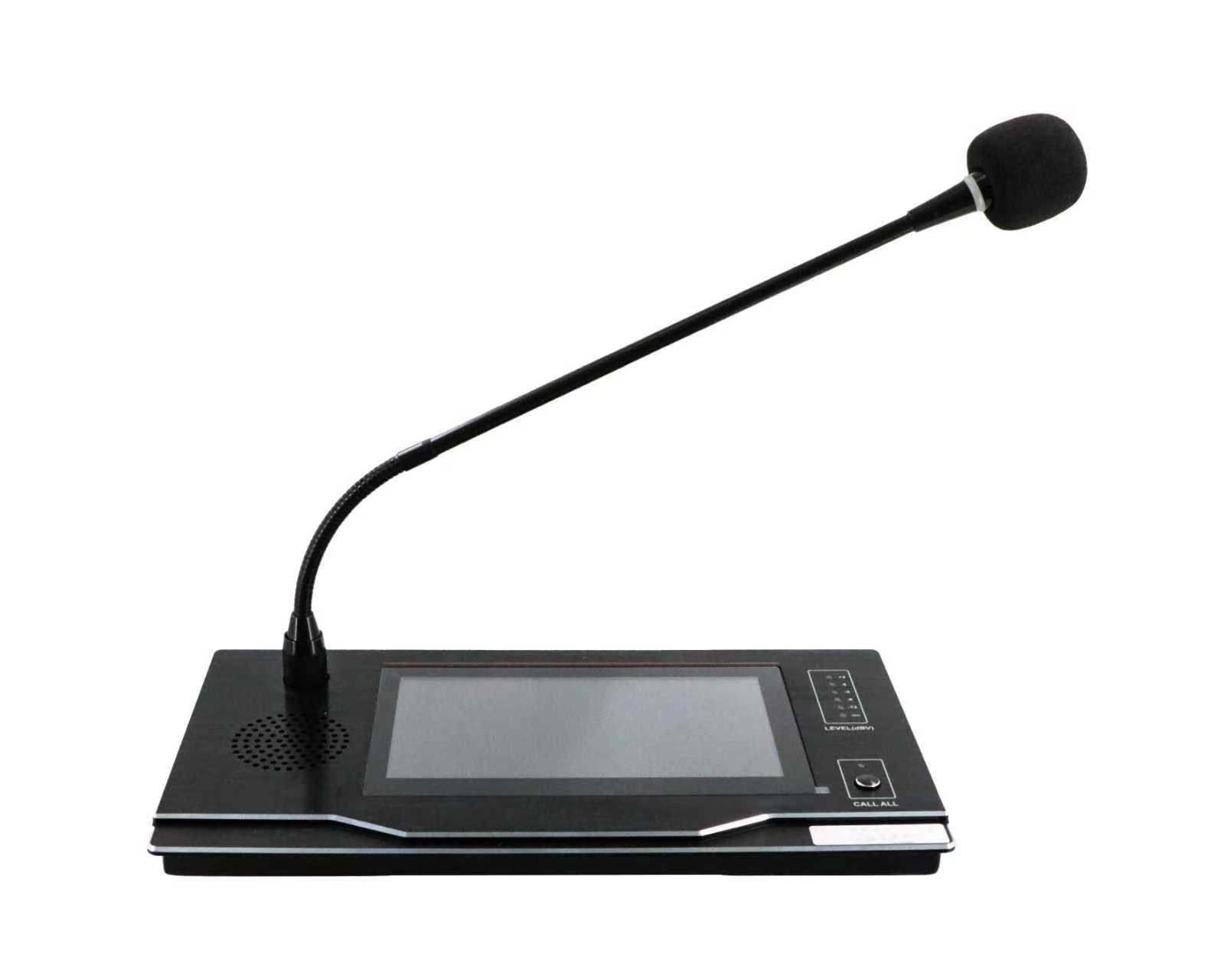

PA-8000RM Touch Screen Remote Microphone
- Communication through CAT6 cable by switch
- Touch screen
- Up to 8 Mics working simultaneously connection

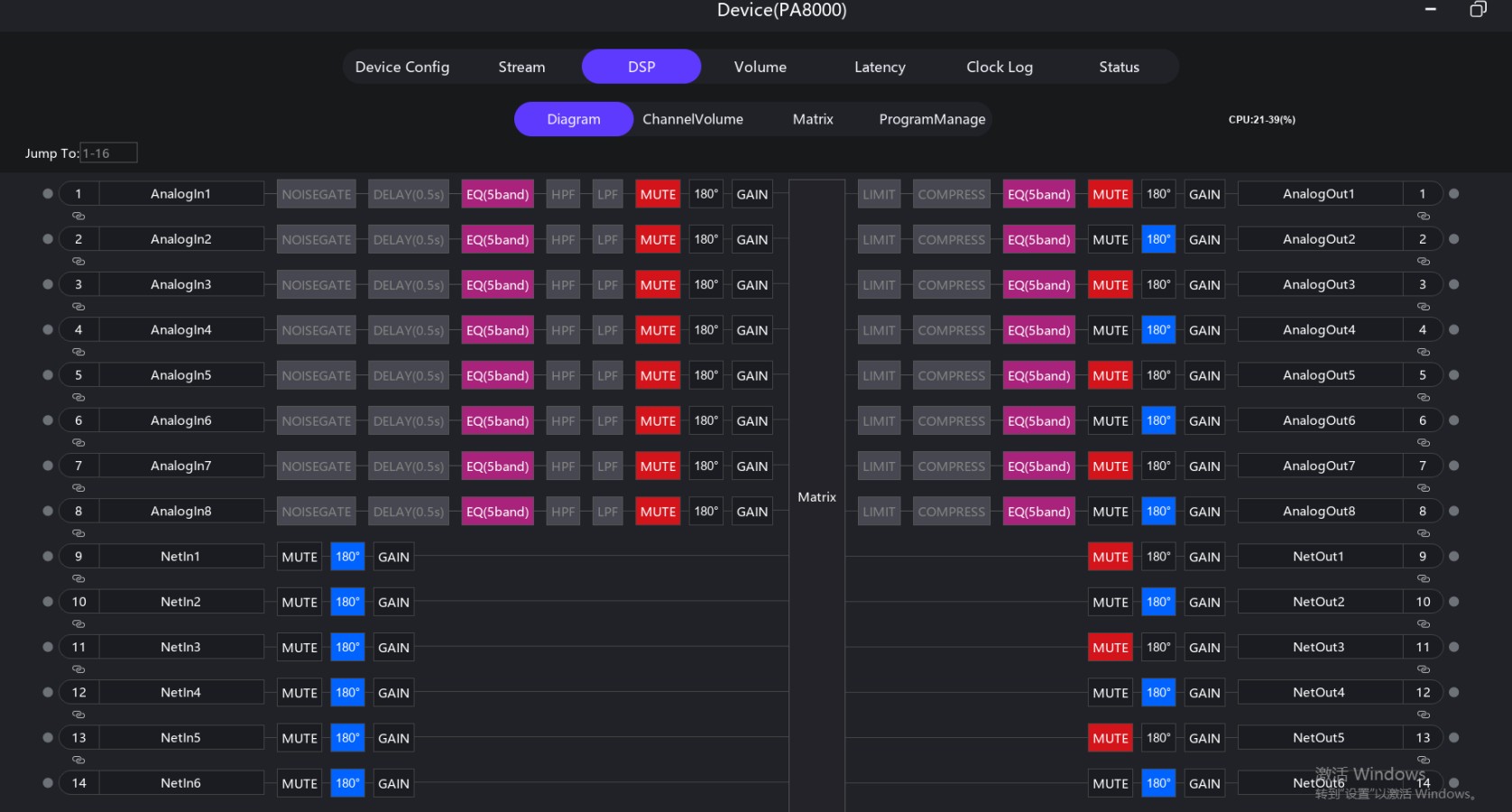

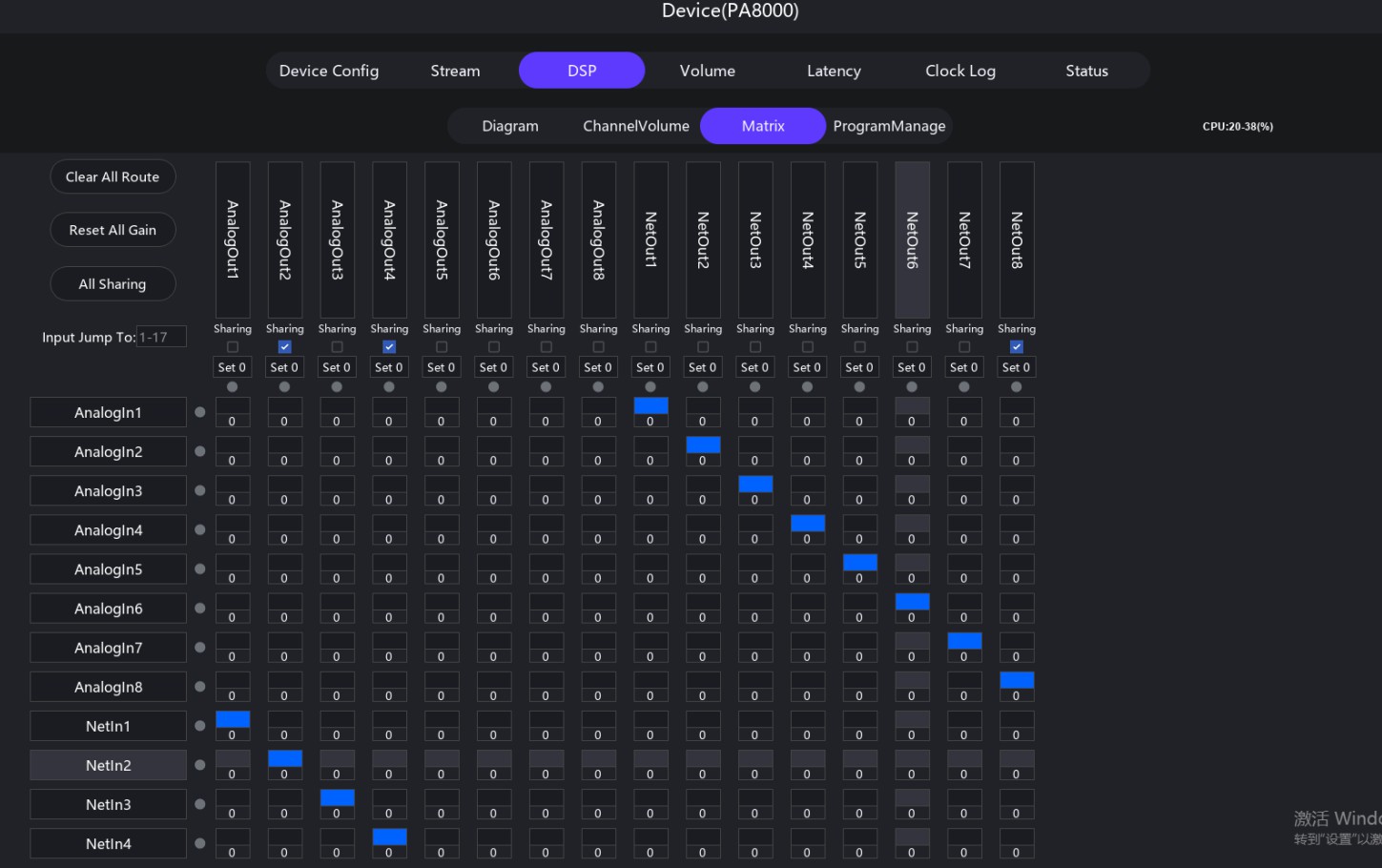

PC Control Software
