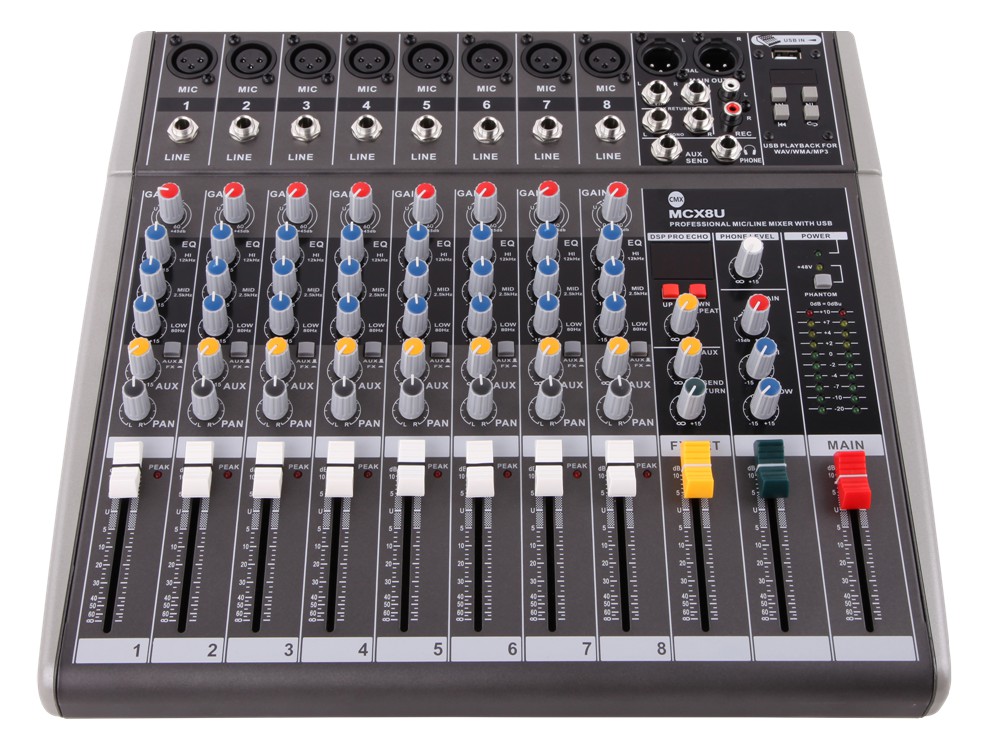

8 Channel Mixing Console MCX8U
MCX8U range digital mixing console is used for professional audio, sound reinforcement system and conferencing system.
Features:
- Professional 8 channel mixer for professional sound system.
- Application for commercial audio, installation sound system and live performance.
- Ideal for school sound system, hotel sound system, meeting room sound system etc.
- Feed in versatile sources from balanced microphone, unbalanced microphone, line or tape.
- The built-in DSP processor can stereo or separately control the left and right channel output.
- The built-in Mp3 player is designed with USB for separate control.
- With +48V phantom power for various microphone input.
- 3 Bands of EQ and 99/24 Bits 16 DSP processor for superior sound quality.
- Built-in delay mixer effector, Echo and playback interface.
- Bluetooth function is optional to add with extra cost.
Specifications:
Model | MCX8U |
Description | 8 Channel Professional Mixer with Mp3 |
Channel | 8 Mono |
DSP | 99/24 Bits 16 DSP processor |
Out | Main stereo output, aux output and stereo return |
Input Sensitivity | Mic: -60dB Line: -20dB Effector: -20dB Tape: -20dB |
Output Voltage | Earphone: 200Ω, 300mW Others: +20dBu |
Phantom Power | +48V DC |
S/N Ratio | >85dB |
THD | <0.03% at rated power |
Crosstalk | -82dB |
Frequency Response | 20-20KHz |
EQ 3 Bands | Treble: 12KHz, ±15dB Middle: 600KHz, ±15dB Bass: 80Hz, ±15dB |
Dimension | 90×355×330mm |
Weight | 3.4kg |
