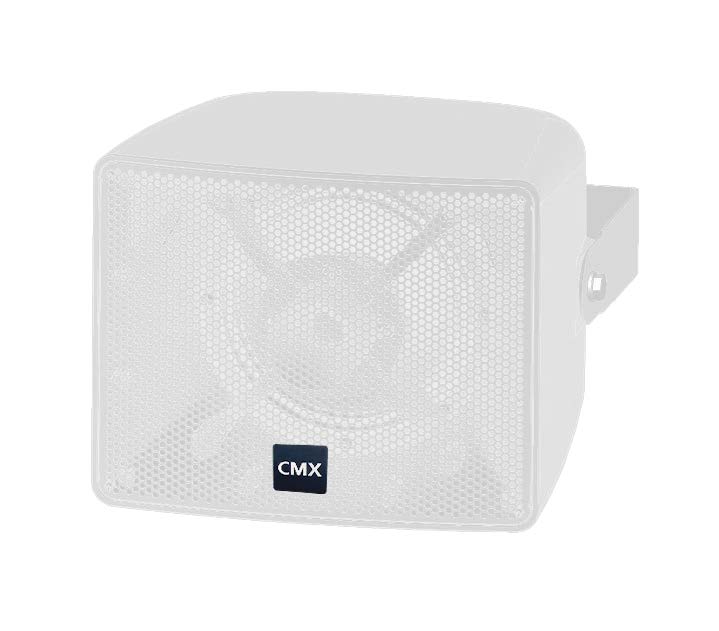

8” 2-Way Coaxial All Weather Loudspeaker HSK-108ATWEN
PA Speakers 100V 70V Speakers BGM Speakers Ceiling Speaker ABS Speaker EN54 Certified Speakers EN54-24 LoudspeakersHSK-108ATWEN is EN54-24 8” 2-Way Fireproof Coaxial All Weather Loudspeaker Two Way Coaxial All weather Loudspeaker is designed for outdoor sound reinforcement system and public address system, 10 inch woofer with tweeter, it is designed for outdoor applications of IP66 waterproof rate, 150W RMS power output and support 100V/70V and 8 Ohms.
PA Speakers 100V 70V Speakers BGM Speakers Ceiling Speaker ABS Speaker EN54 Certified Speakers EN54-24 Loudspeakers
Feature:
- Compliant with the EN54-24 standards
- Application of outdoor sound applications of sports hall, football field, playground, park
- Superior sound quality of very clear voice restoration
- Two way 8” woofer with 1.5” tweeter
- RMS 150 Watt 70V/100V transformer with 8Ω power tapping
- Power tappings of 150W, 75W, 37.5W, 18.3W & 8Ω bypass
- Waterproof outdoor use level of IP66
- Built-in ceramic connector, 95℃ fire-resistant cable and thermal fuse
- Outdoor weather safe connection with a recessed terminal block and waterproof seal cover
- UV protected ABS enclosure with aluminum grill in black
- U-Shaped wall mounting stainless bracket is supplied
- Multiple combination of outdoor line array loudspeakers
Specification:
| Model | HSK-108ATEN |
Description | EN54-24 8” 2-Way Fireproof Coaxial All Weather Loudspeaker |
| Power Output | 150W RMS and 300W Max . |
| Impedance | 8 Ohms |
| Power Tapping | 150W, 75W, 37.5W, 18.3W & 8Ω bypass |
| Frequency Response | 75-18K Hz |
| SPL (@1W/m) | 101dB and Max 115dB |
| Speaker Unit | Waterproof 8”woofer +1.5” tweeter |
| IP Rate | IP66 |
| Dispersion Angle | Horizontal: 110°, Vertical: 110° |
| Operation Temp | -22℃ to +55℃ |
| Dimension | 302x312x260 mm |
| Material | UV protected ABS enclosure with aluminum grill in black, stainless bracket |
| Weight | 9.1kg |
Rear View:
