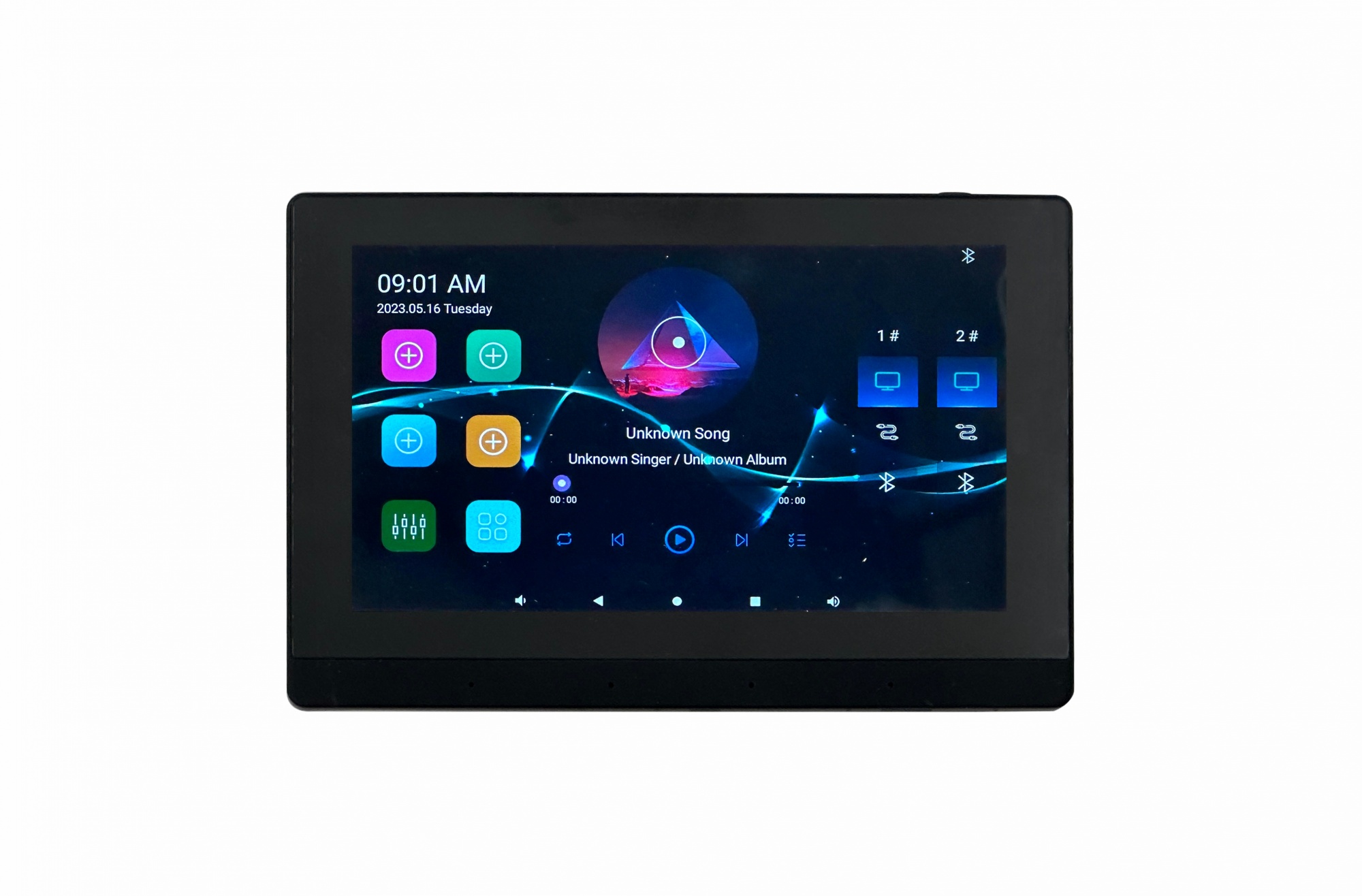

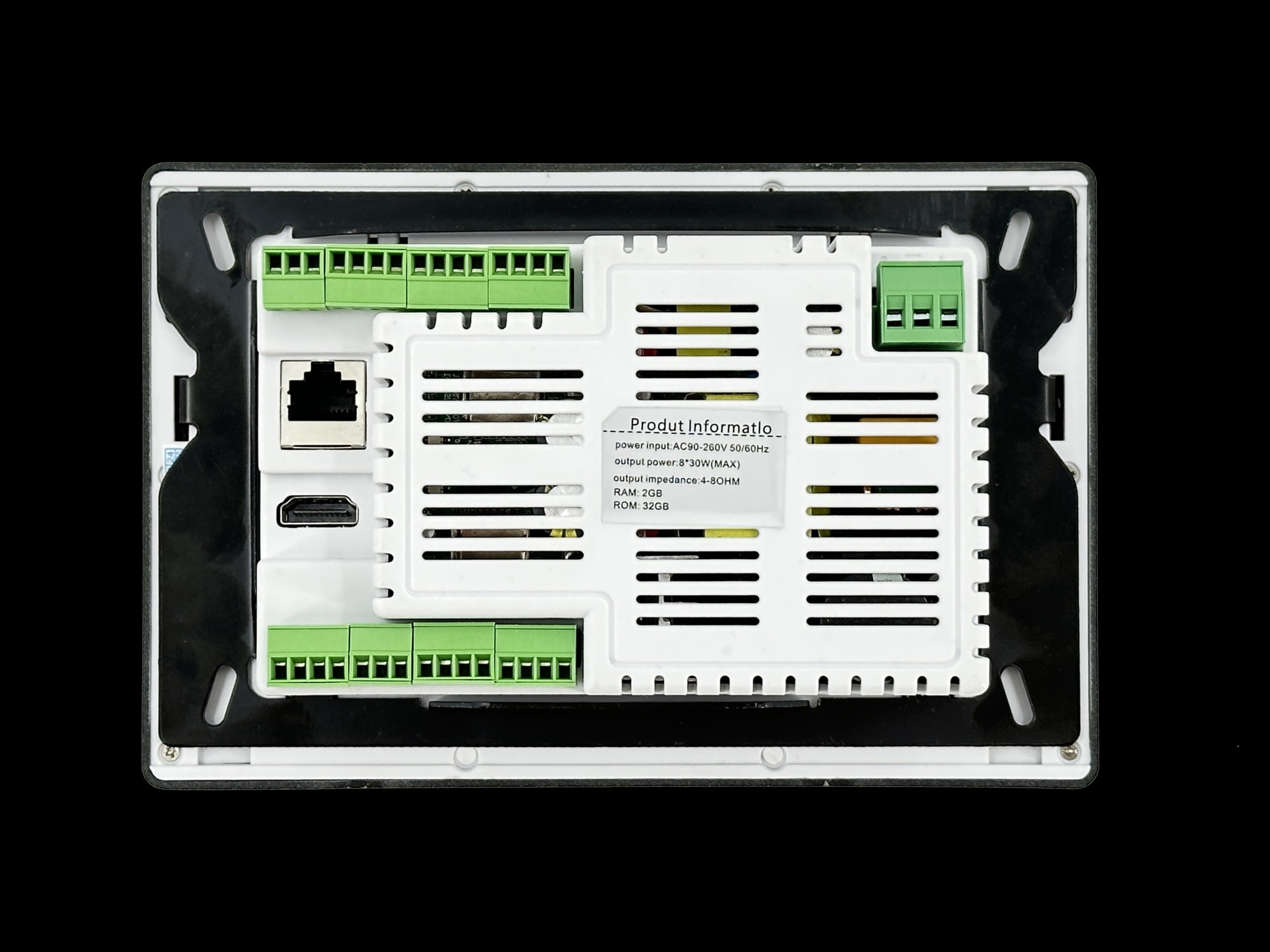

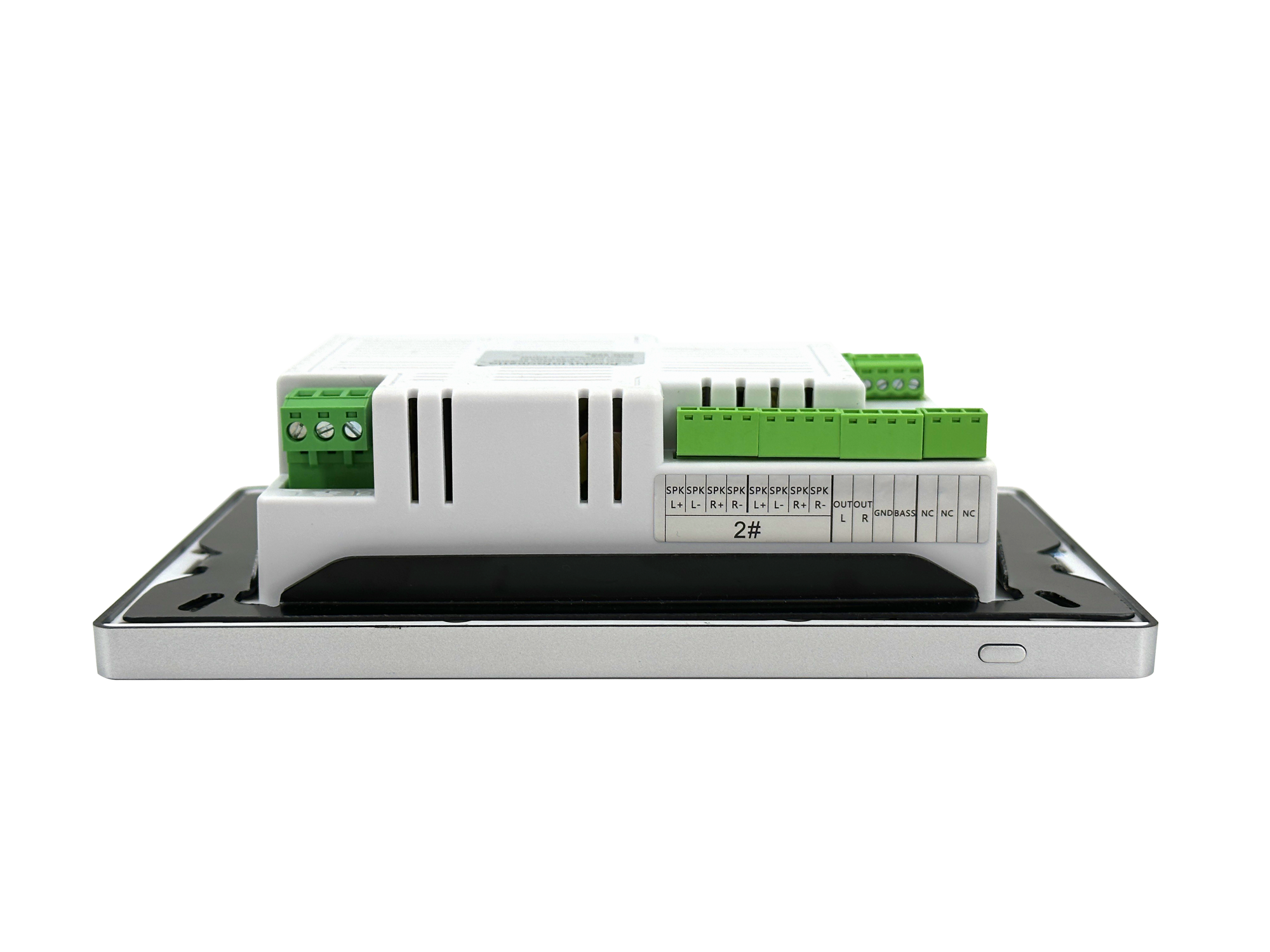

7 Inch Touch Screen In Wall Amplifier A7G
Wi-Fi Amplifiers Home Audio System Home Audio Amplifier Smart Home Audio AmplifierA7G is one wireless bluetooth on wall amplifier built-in bluetooth USB FM and stereo power amplifier all in one solution for small room sound system, 7 inch touch screen control, up to 8 loudspeakers connections.
Wi-Fi Amplifiers Home Audio System Home Audio Amplifier Smart Home Audio Amplifier
Description:
A7G is one in wall amplifier with a 7' android pad installed in the wall for home audio solutions. You can change the
language in setting to English, Russian & Germany etc. You can download apps from internet and install.
Features：With our app 'ESHARE' pre-install in system and you can download one from google play or apple store
to control the amplifier from your mobile phone.
Local：If you have 2 or more amplifiers in house different rooms, you can control them in system by app 'WiseLink'.
Reserve Zigbee/Z Wave port, contact us for your custom，if necessary.
Scenes：This unit is widely used for home, office & hotel etc. You can connect 2 microphones to the item for family
concert. It's recommended to connect with 8 speakers from 2 zone, can be controlled volume separately.
We designed in wall amplifiers and ceiling speakers with different features that customer can install in different
locations, These in wall amplifiers are widely used in apartment, house, hotel, office, shop, restaurant, villa etc.
● A7G In Wall Amplifier For Smart Home System
● Android pad + Class D amplifier
● Multi - language setting
● Free Wiselink app to control amplifiers as system to work together or separately.
Product Features
● Android System 11.0
● App for mobile phone, support protocol of DLNA, Airplay, etc
● Built-in WIFI module & Bluetooth module & Mini Microphone
● USB & TF card player
● Music Player & Video Player & Photo album
● Time Display
● Set time to turn on/off the unit
● Software and firmware update
● Stereo Amplifier Module (8 x 30W@8ohm) connect up
to 8 speakers,two zone volume adjustment
● 1 group Wired Audio Input & 1 group Wired Audio
Output
● Active subwoofer connector
● Includes in-line power supply
● HD HDMI output
● BT version: 5.0
Specification:
7' IPS Touch Screen (1024*600) | |
| CPU | Cortex-A7quad core, 1.3G |
| RAM | 2G |
| ROM | 32G |
| Power Supply | AC100-240V, 50-60Hz |
| Power Output (max) | 8 x 30W @ 8Ω |
| Audio Zone | 2 zone for audio |
Output Impedance | 8Ω |
| THD | 0.03% (1W,1KHz) |
| Frequency Response | 20Hz-20KHz3DB |
| Extended Memory card up to 32G | |
| WIFI Transmit Distance | 2.4G up to 20 meters |
| Product Size | 186.5 x 122 x 50mm |
| Optional function | ABS handheld microphone, Metal microphone,Headset microphone, TF memory card |
