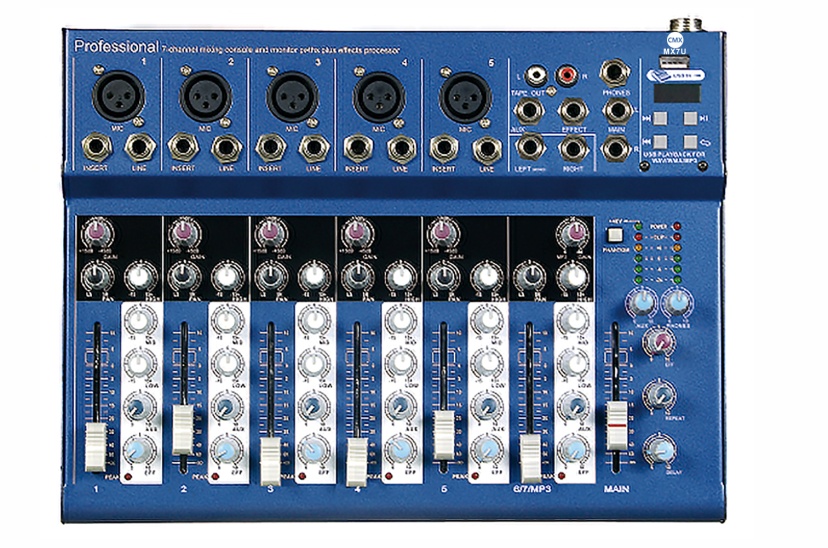

7 Channel Mini Mixer with Mp3 MX7U
7 Channel Mini mixer for professional sound system.Economy range of professional mini mixer.Application for commercial audio, installation sound system and live performance.Ideal for school sound system, hotel sound system, meeting room sound system etc.
Features:
- 7 Channel Mini mixer for professional sound system.
- Economy range of professional mini mixer.
- Application for commercial audio, installation sound system and live performance.
- Ideal for school sound system, hotel sound system, meeting room sound system etc.
- Feed in versatile sources from balanced microphone, unbalanced microphone, line or tape.
- The built-in DSP processor can stereo or separately control the left and right channel output.
- The built-in Mp3 player is designed with USB for easy control.
- With +48V phantom power for various microphone input.
- 3 Bands of EQ and 99/24 Bits 16 DSP processor for superior sound quality.
- Built-in delay mixer effector and playback interface
Specifications:
Model | MX7U |
| Description | 7 Channel Mini Mixer with Mp3 |
| Channel | 7 Mono |
| DSP | 99/24 Bits 16 DSP processor |
| Out | Main stereo output, aux output and return |
| Input Sensitivity | Mic:-60dB Line:-20dB Effector:-20dB Tape:-20dB |
| Output Voltage | Earphone: 200Ω, 300mW Others: +20dBu |
| Phantom Power | +48V DC |
| S/N Ratio | >85dB |
| THD | <0.03% at rated power |
| Crosstalk | -82dB |
| Frequency Response | 20-20KHz |
| EQ 3 Bands | Treble: 12KHz, ±15dB Middle:600KHz, ±15dB Bass:80Hz, ±15dB |
| Dimension | 54×310×236mm |
| Weight | 2.1kg |
