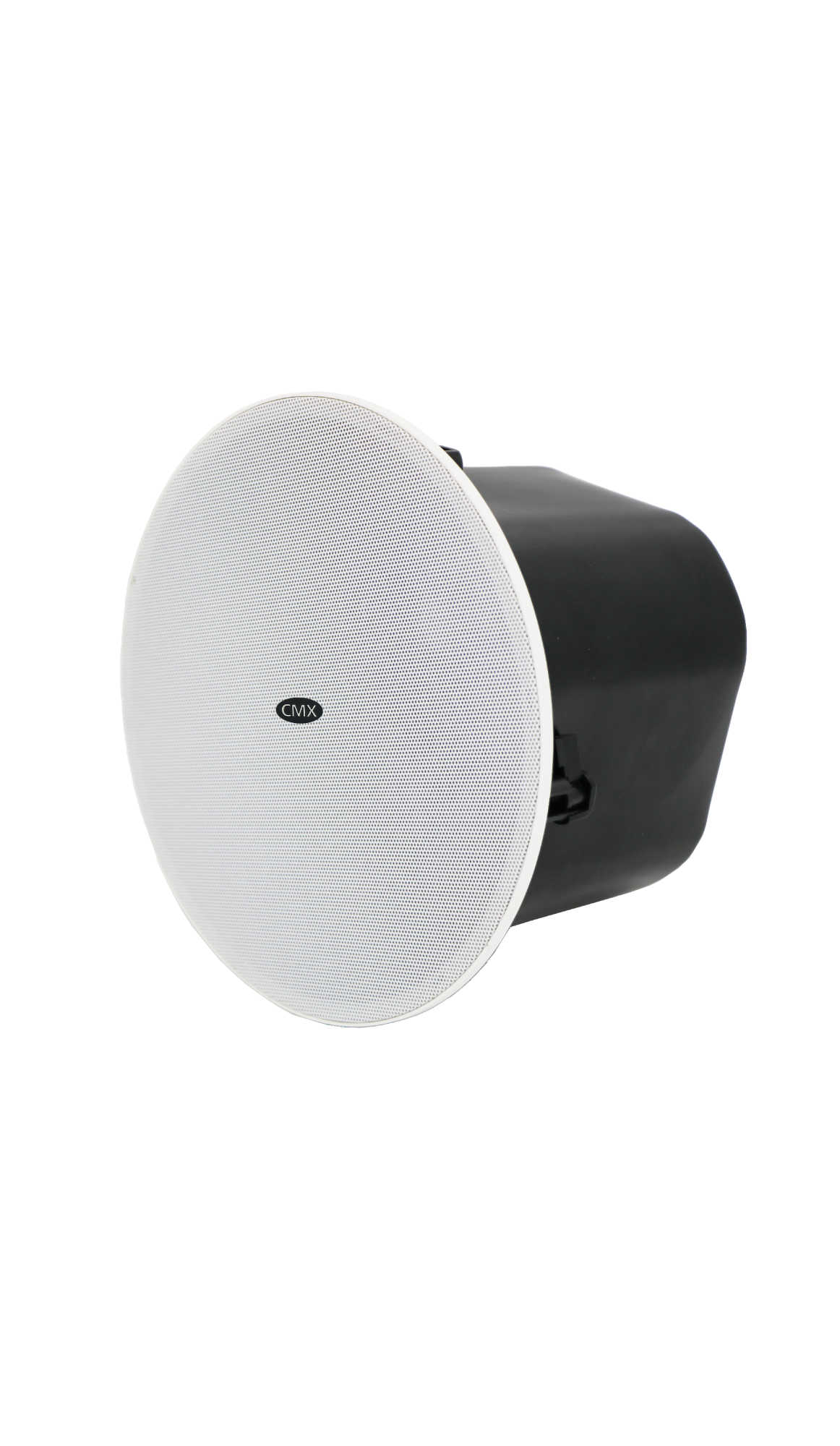

6.5” Two Way Frameless Ceiling Speaker with Fire Dome CSK-860HM
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS SpeakerCommercial ceiling speaker with 100V transformer.Built-in 100v/70v transformer for PA & VA system.100V power taps 60-30-15-7.5W & 8Ω.100V transformer and 8Ω both applications.6.5" woofer and 1.5” silk teeter coaxial speaker system.ABS enclosure,metal grille with metal fire dome in black.4 Dog ears flush mount in-ceiling quick and secure installation.
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker
Features:
- Commercial ceiling speaker with 100V transformer.
- Built-in 100v/70v transformer for PA & VA system.
- 100V power taps 60-30-15-7.5W & 8Ω.
- 100V transformer and 8Ω both applications.
- 6.5' woofer and 1.5” silk teeter coaxial speaker system.
- ABS enclosure,metal grille with metal fire dome in black.
- 4 Dog ears flush mount in-ceiling quick and secure installation.
Specifications:
Model | CSK-860HM |
| Description | 6.5” Two Way Frameless Ceiling Speaker with Fire Dome |
| Power Taps 100V | 60-30-15-7.5W & 8Ω |
| Sensitivity 1W/1m | 94±3dB |
| Frequency Response | 55Hz-20KHz |
| Speaker Driver | 6.5” woofer and 1.5” silk teeter coaxial speaker system |
| Finish | ABS enclosure, metal grille with fire dome in black |
| Mounting Way | 4 Dog ears flush mount in-ceiling quick and secure installation |
| Cutout Size | Ø243mm |
| Dimensions | Ø283×220mm |
| Weight | 3.3kg |
Installation & Wiring diagram:
Frequency Response and Impedance Diagram:
