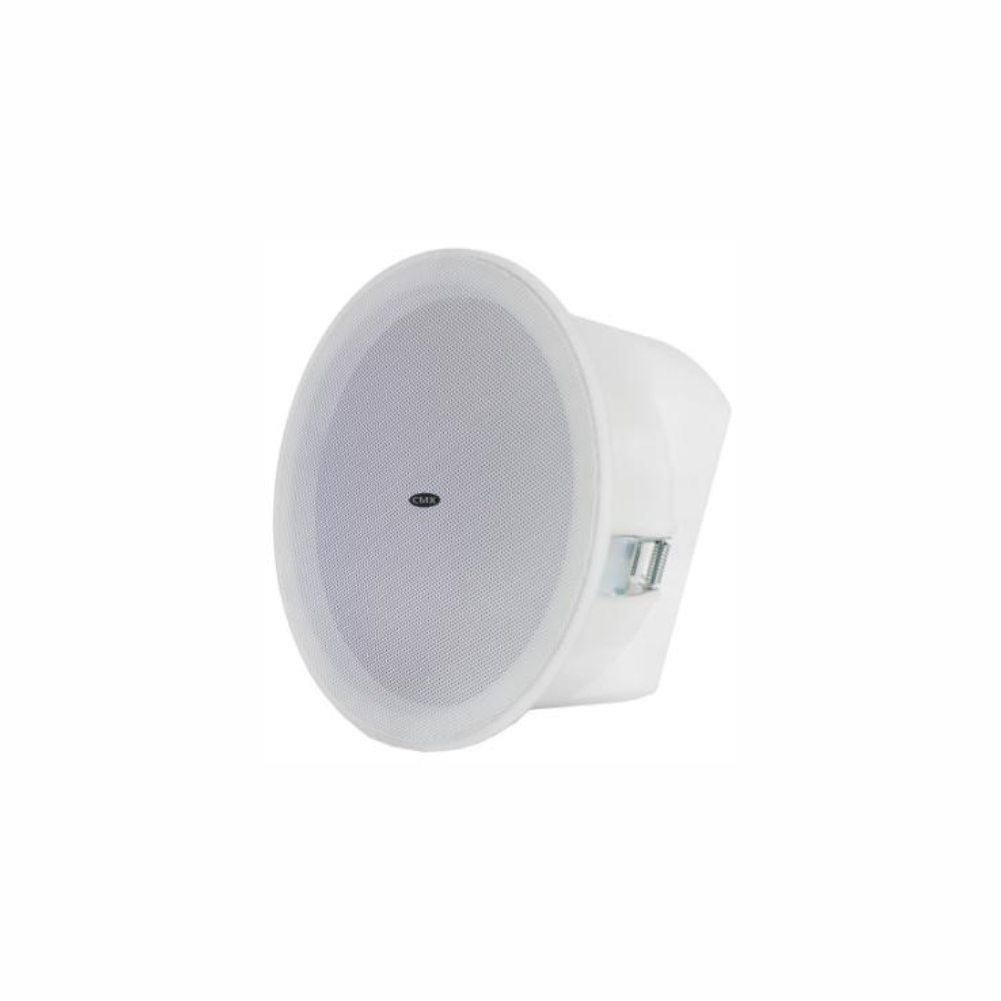

6.5” Frameless Ceiling Speaker with Back Can CSK-610HAC
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS SpeakerCSK-610HAC is one cost effective ceiling speaker, 6.5" full range, 100V transformer with 10W/6W/3W power tapping, ideal for background music system and commercial audio solutions.
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker
Features:
- Commercial ceiling speaker with 100V transformer
- Frameless fashion new design
- Ideal for shopping mall, office, and hotel BGM

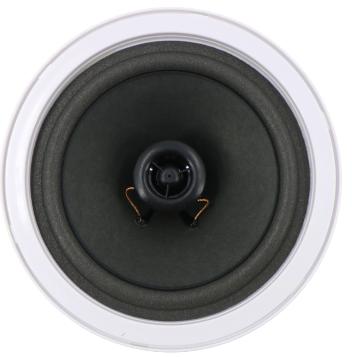

- 6.5” coaxial paper driver unit with tweeter
- Power taps 10W-6W-3W
- ABS enclosure and metal grille in white with back box
- In-ceiling quick installation by spring clip
Specifications:
| Model | CSK-610HAC |
| Description | 6.5” Frameless Ceiling Speaker |
| Power Taps | 100V 10W-6W-3W |
| Sensitivity 1W/1m | 94±3dB |
| Frequency Response | 70-20KHz |
| Speaker Driver | 6.5” coaxial paper driver unit with tweeter |
| Finish | ABS enclosure and metal grille in white with back box |
| Mounting Way | In-ceiling spring clip quick installation |
| Cutout Size | Ø 170mm |

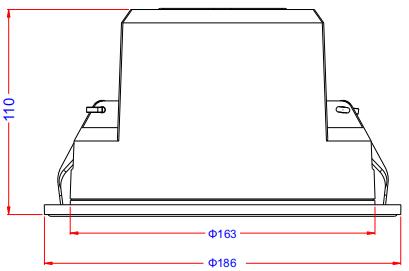

| Dimensions | Ø186×110mm |
| Weight | 530g |

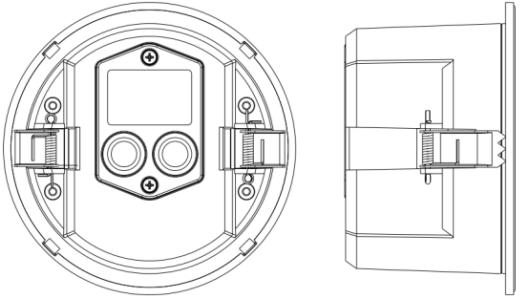

Installation & Wiring diagram:

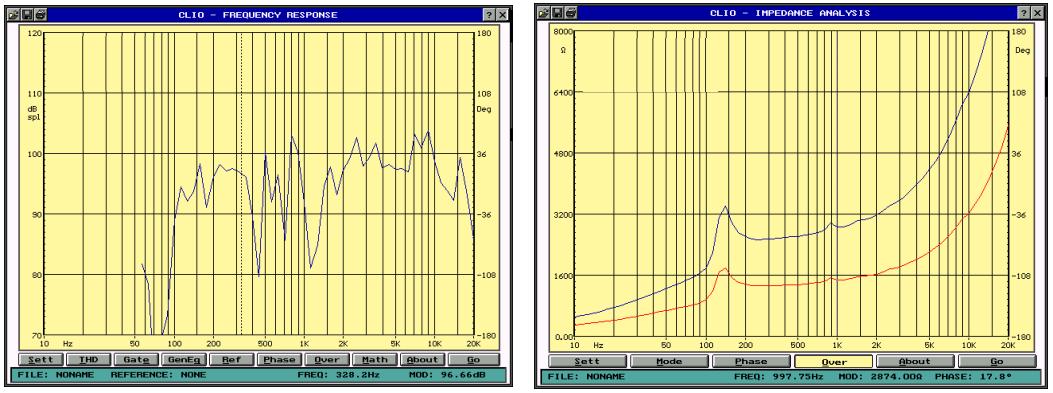

Frequency Response and Impedance Diagram:
