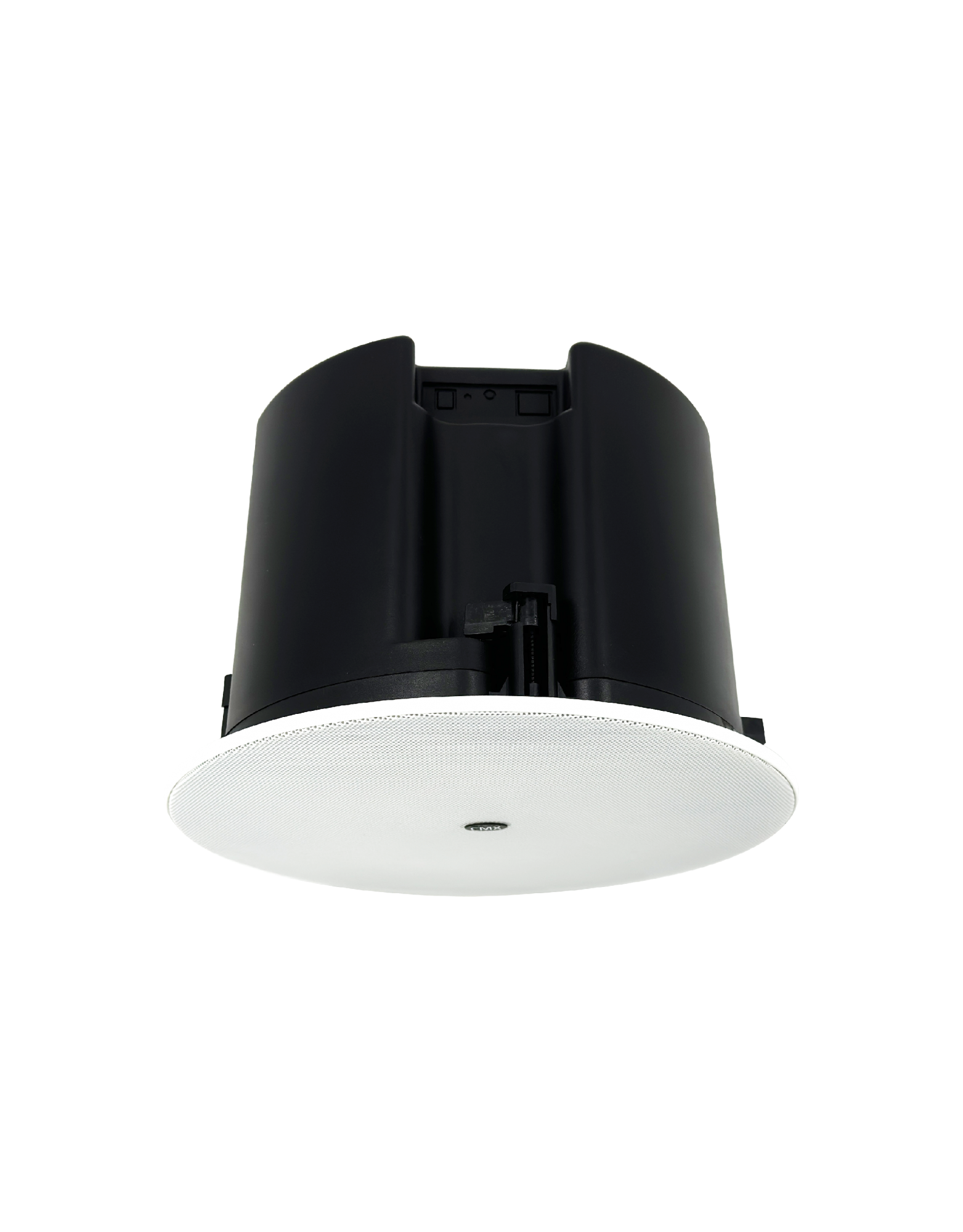

6.5” 2-Way Hi-fi Ceiling Speaker CSK-840HQR
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS SpeakerHigh grade slim line 2-way ceiling speaker。Hi-fi 2-way in-ceiling loudspeakers for professional sound system.Power output of 40W and Max output of 80W
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker
Features:
- High grade slim line 2-way ceiling speaker
- Hi-fi 2-way in-ceiling loudspeakers for professional sound system
- Hi-flex polypropylene cone main driver for extended low frequency response
- Built-in crossover for clear tweeter and heavy performance bass
- 6.5” hi-flex polypropylene bass speaker with separate high performance 1.5” tweeter
- Power output of 40W and Max output of 80W
- Magnetic frameless grille & ABS baffle & metal fire dome
- With dual breathing holes for superior heavy duty bass performance
- Flush mount easy and secure installation
- Exclusive grill design allows true frameless speakers
Specifications:
Model | CSK-840HQR |
| Description | 6.5” 2-Way Hi-fi Ceiling Speaker |
| Power Output | 40W Max 80W 8 Ohms |
| Impedance | 8 Ohm |
| Sensitivity 1W/1m | 96dB |
| MAX SPL | 121dB |
| Frequency Response | 60-20KHz |
| Radiation Angle | 150° |
| Finish | Baffle: ABS, black; Grille: magnetic steel, white |
| Speaker Driver | 6.5' bass+1.5' tweeter two way system |
| Cutout Size | Ø243mm |
| Dimensions | Ø284.3×95mm |
| Weight | 1.46Kg |
Side & Rear View:
Impedance & Frequency Response VS SPL Diagrams:
