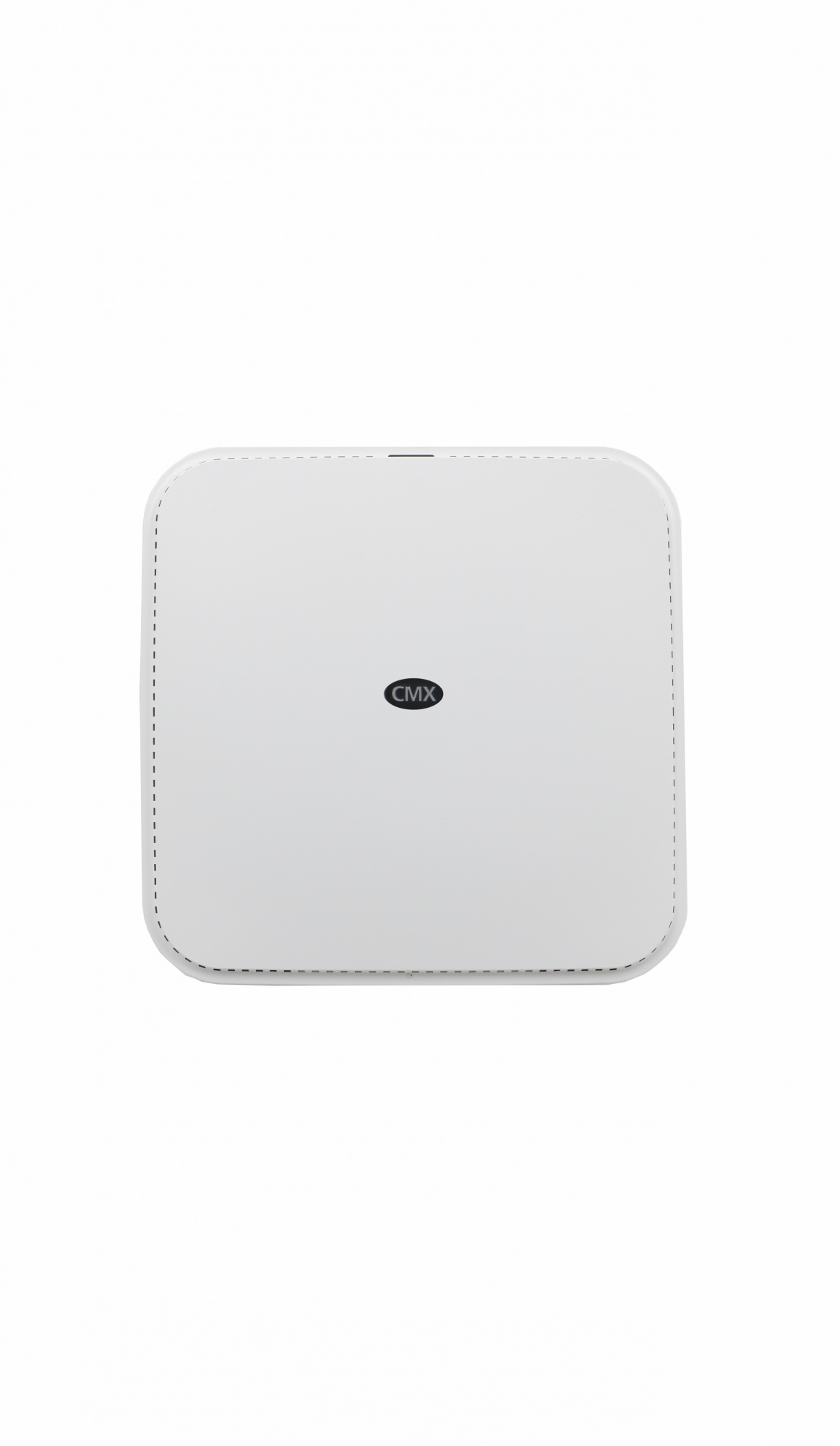

5G Wi-Fi Access Point 5G-109
Conference System Wireless Conference Systemwireless Conference system, wireless audio conference system, wireless digital conferencing system, wireless Audio Conferencing System for Small Meeting Rooms, wireless digital conference microphone system, wireless digital conferencing microphone system, wireless Audio Conferencing System for big Meeting Rooms, wireless discussion conference system mic
Conference System Wireless Conference System
Features:
Compatible with 802.11a/an/ac/Wave2, supports MU-MIMO, allows AP to receive data from multiple terminals simultaneously, and
the maximum transmission rate of the entire machine can reach 1.601Gbp. It can effectively provide high-performance wireless access services in terms of coverage range, access density, traffic throughput, and other aspects.
Supports OFD spatial multiplexing technology and 1024QAM modulation and demodulation algorithm, providing fast wireless
internet access and a wide wireless coverage range, which can easily meet the needs of various wireless services, such as multimedia services such as voice and text.
The use of Gigabit Ethernet in the uplink breaks through the traditional limit of 100 Mbps speed, making wired ports no longer a
speed bottleneck for wireless access.
Through virtual wireless access point (v • rtual (P) technology, up to 32 ESSIDs can be provided. Different SSIDs can be isolated
from each other, and terminal layer 2 isolation can be performed on subnets using the same SSID or under the same VLAN to ensure user data security.
Support Chinese SSID and can also use a mixture of Chinese and English SSID to provide personalized SSID for construction units
and improve recognition.
Support A3 security protocol to ensure the confidentiality and security of conference content.
Support high bandwidth bandwidth of 80/160z, reducing congestion, achieving low latency, and providing historically high
performance.
Support local power supply and POE remote power supply,can be flexibly selected according to the user's on-site power supply
environment.
The product has a beautiful and elegant appearance,easy to install, and is suitable for ceiling mounted, wall mounted, and desktop
installation.
Specification:
Model | 5G-109 |
| Description | 5G Wi-Fi Access Point |
| Ethernet port | 10/1/1 commission 0M electrical port |
| Console port | RJ45 port |
| POE | Supports 802.3at/bt Ethernet power supply standard |
| Charging Current | 12V/2A |
| Transmission power | <20dBm |
| Adjustable power granularity | 1dBm |
| Power consumption | <15W |
| Antenna | Built in matrix smart cable, inactive. Flashing, abnormal device power on reset/factory reset: Supports |
| Operation Temp | 0℃ to +45℃ |
| Protection level: | IP41, normally the system light is off |
| Weight | 0.3kg |
