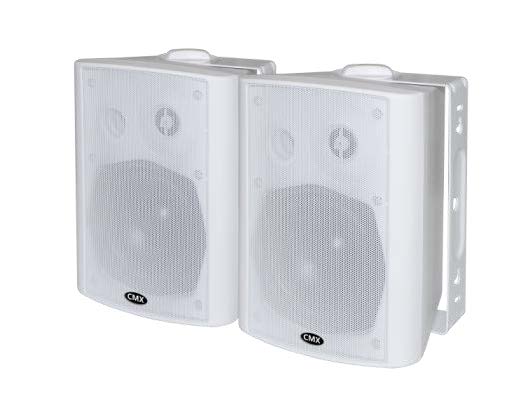

5.25” Active Speaker System AWS530 & AWS530W
100V 70V Speakers Commercial Speakers Professional Loudspeakers 100 Volt Speakers BGM Speakers BGM Speakers 2-Way Speakers Fashion Speaker Wall Mount SpeakerThese AWS530 & AWS530W Active speaker Set with built-in amplifier feature a 2-way bass reflex speaker system with a 5.25”long throw woofer and a 1.5” tweeter. Easily install on the wall of class room or lecture hall or conferencing hall for sound reinforcement system. Grilles and brackets are constructed from metal material and the housing is made of durable ABS
100V 70V Speakers Commercial Speakers Professional Loudspeakers 100 Volt Speakers BGM Speakers BGM Speakers 2-Way Speakers Fashion Speaker Wall Mount Speaker
Feature:
- One set include an active speaker and a passive speaker.
- Built-in Digital Sound Stereo Amplifier.
- Highly efficient up to 85% Class-D stereo amplifier.
- Built in class d amplifier 2x30W and Max 2x60W.
- 2-Way full range stereo sound system.
- Built in 5”woofer and 1.5” twetter.
- ABS cabinet, metal grille and metal mounting bracket.
- Support 1 stereo line input,1 microphone input,100V input.
- 110-240V AC wide range power supply system.
- With microphone volume & aux volume control.
- Ideal for school multimedia classrooms, meeting rooms and other places.
- Option: 2.4G wireless microphone system to use in multiple room without interference to each other.
Specification:
Model | AWS530 | AWS530W |
| Color | Black | White |
| Description | 5.25” Active Speaker System | |
| RMS | 2x30W & Max 2x60W @ 8 Ohm | |
| Input sensitivity | 0.5V | |
| Frequency Response | 60Hz-18KHz/1W, ±0.5dB | |
| S/N Ratio | > 90dB | |
| THD | 20Hz-20KHz/1W, 0.05% | |
| Damping factor | >200@8Ω/400Hz | |
| Conversion rate | 30V/US | |
| Protection | High temp, overload, short circuit and clip | |
| Input mode | RCA input,6.5 jack mic input, 100V input | |
| Power Supply | 110-240V AC; 50-60Hz | |
| Dimension | 185×190×310mm | |
| Weight | 4.7kg for one set | |
Front ant Rear Panel:
(1) AC100~240V 50/60Hz AC power input, 8-pin power cord
(2) Power switch/manual automatic
(3) ANT antenna interface (no interface for built-in antenna version) ,option for AWS530G and AWS530WG 2.4G active speaker
(4) VICK SPK power output terminal for connecting sub-woofers
(5) LINEOUT line output terminal for connecting other amplifiers or active speakers
(6) AUX IN line input terminal for connecting audio sources (phones, computers, CDs, etc.)
(7) AUX VOL line input (unbalanced) volume adjustment
(8) MIC VOL microphone input volume adjustment
(9) MIC IN 6.35 microphone (unbalanced) input port
(10) 100V IN broadcast input (connect PIN 1 and PIN 3), used to connect traditional pressure broadcast lines
(11) Subwoofer speaker input interface, used to connect the main box VICK SPK terminal
Installation
