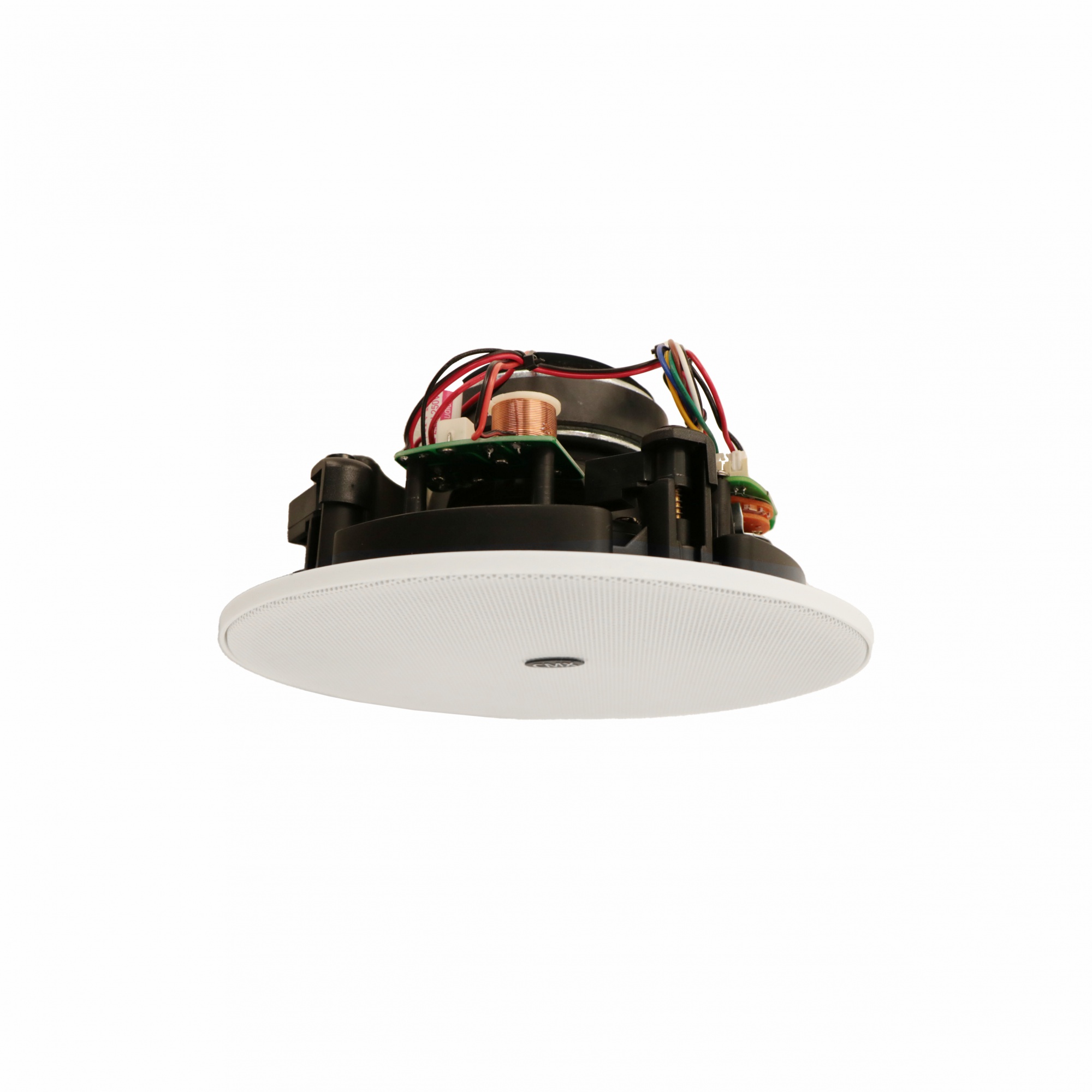

4” Two Way Frameless Ceiling Speaker CSK-430HT
PA Speakers 100V 70V Speakers Professional Loudspeakers 100 Volt Speakers BGM Speakers Ceiling Speaker Fireproof Speaker ABS Speaker 2-Way SpeakersHi-flex polypropylene cone main driver for extended low frequency response,Power tap output 30W/15W/7.5W/3.75W in 100V/70V/8ohm,4" woofer and 1.5” silk teeter coaxial speaker system,ABS enclosure,metal grille
PA Speakers 100V 70V Speakers Professional Loudspeakers 100 Volt Speakers BGM Speakers Ceiling Speaker Fireproof Speaker ABS Speaker 2-Way Speakers
Features:
- High grade slim line 2-way ceiling speaker
- 100V line ceiling speaker with transformer
- hi-flex polypropylene cone main driver for extended low frequency response
- Power tap output 30W/15W/7.5W/3.75W in 100V/70V/8ohm
- 4' woofer and 1.5” silk teeter coaxial speaker system
- ABS enclosure,metal grille
- Flush mount easy and secure installation
Specifications:
| Model | CSK-430HT |
| Description | 4” Two Way Frameless Ceiling Speaker |
| RMS Power in 100V | 30W |
| Power Tap in 100V | 30W/15W/7.5W/3.75W |
| Line input | 100V/70V/8Ω |
| Sensitivity 1W/1m | 89dB |
| Frequency Response | 90Hz-20KHz |
| Speaker Driver | 4” woofer and 1.5” silk teeter coaxial speaker system |
| Finish | ABS enclosure, metal grille |
| Cutout Size | Ø170mm |
| Dimensions | Ø205×90mm |
| Weight | 1.35kg |

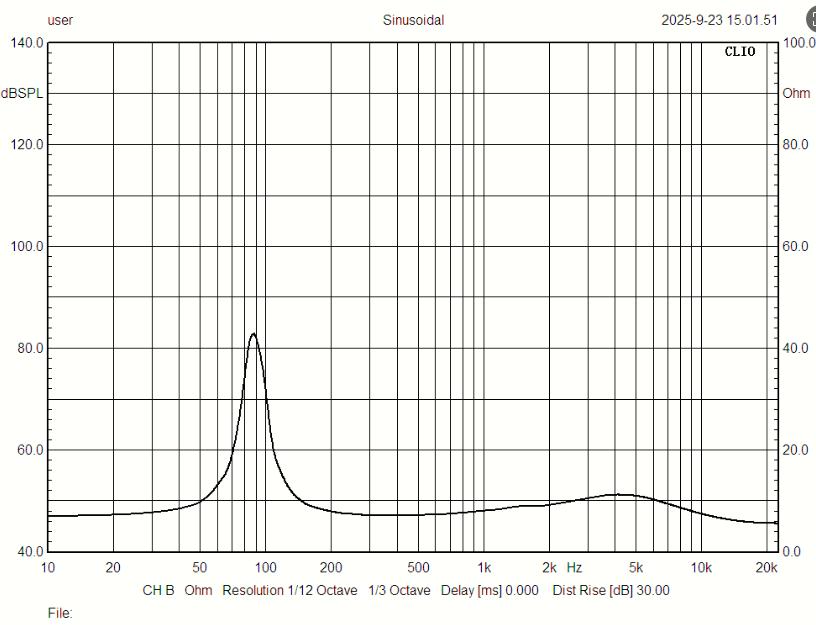

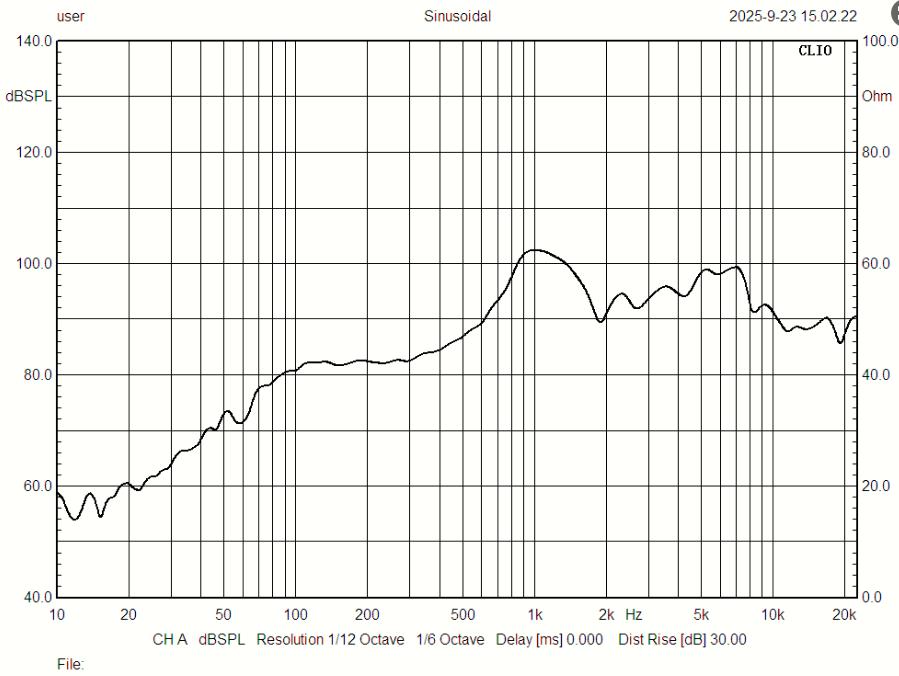

Frequency Response and Impedance Diagram:
