3" 2-Way Wall Mount Speaker WSK-231TS
PA Speakers 100 Volt Speakers BGM Speakers ABS Speaker 2-Way Speakers Fashion Speaker Wall Mount SpeakerPA Speakers 100 Volt Speakers BGM Speakers ABS Speaker 2-Way Speakers Fashion Speaker Wall Mount Speaker
Feature:
- Commercial public address speaker with 100V transformer
- Ideal for school, office, hotel and apartment background music system
- Power output 10-5-2.5W & 8 Ohm
- 3' woofer and 1” tweeter two way speaker unit
- ABS enclosure, metal grille in black

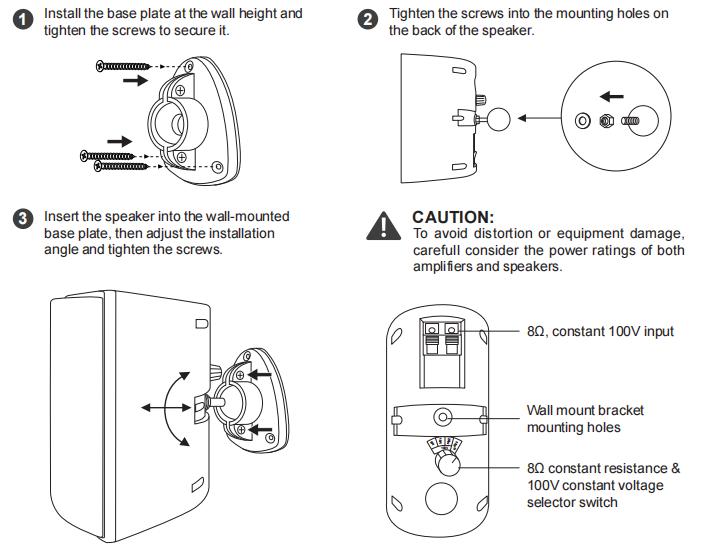

- Quick installation by supplied ABS mounting bracket
- WSK-231T as option of 100V version
- WSK-231S of 8Ω low impedance version
Specification:
| Model | WSK-231TS |
| Description | 3”+1” 2-Way Wall Mount Speaker |
| Rated Power Output | 10W |
| Power Taps | 10-5-2.5W |
| Line Input | 100V & 8 Ohm |
| Frequency Response | 70-20KHz |
| SPL(@1W/m) | 88 dB |
| Speaker Unit | 3” woofer and 1” tweeter speaker unit |
| Dimension | 162 × 100 × 116 mm |
| Material | ABS enclosure and metal grille in black |
| Mounting Way | Quick installation by ABS bracket |
| Net Weight | 0.85kg |

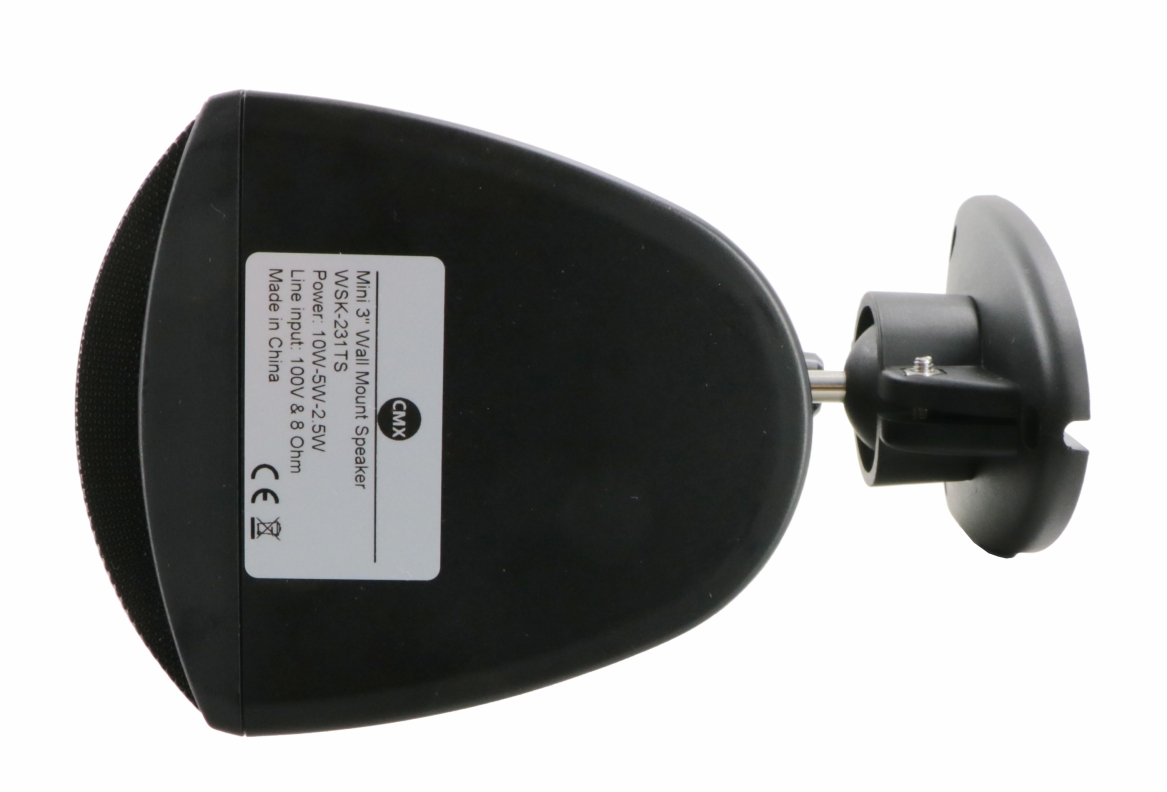

Side View & Dimension:

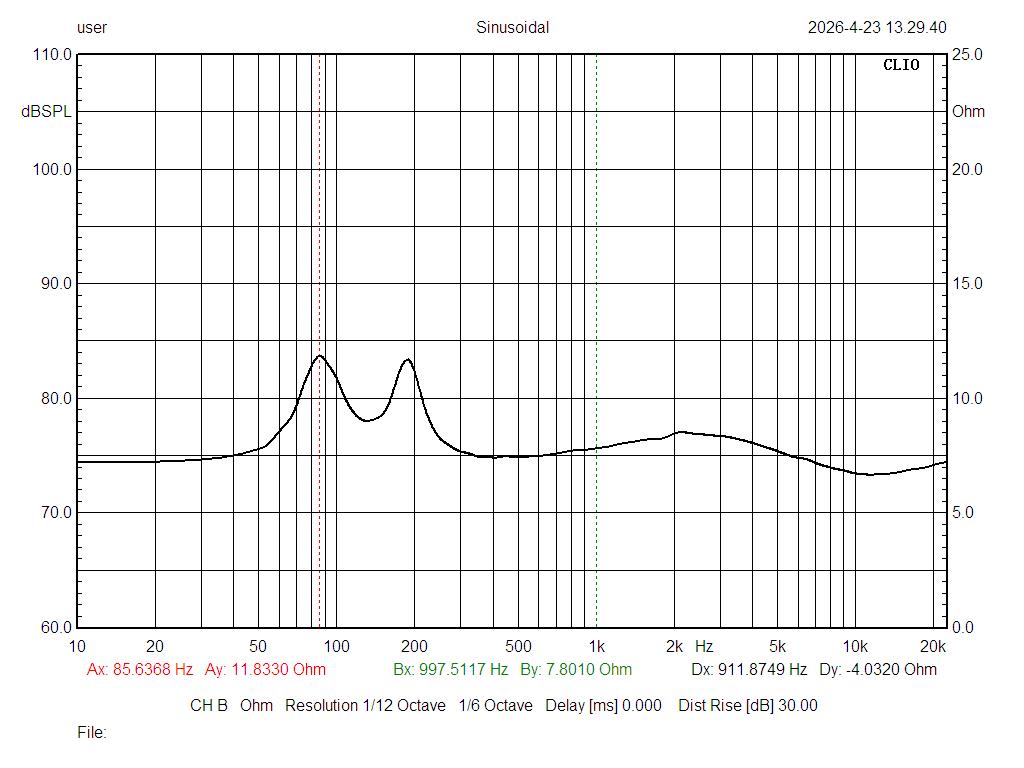

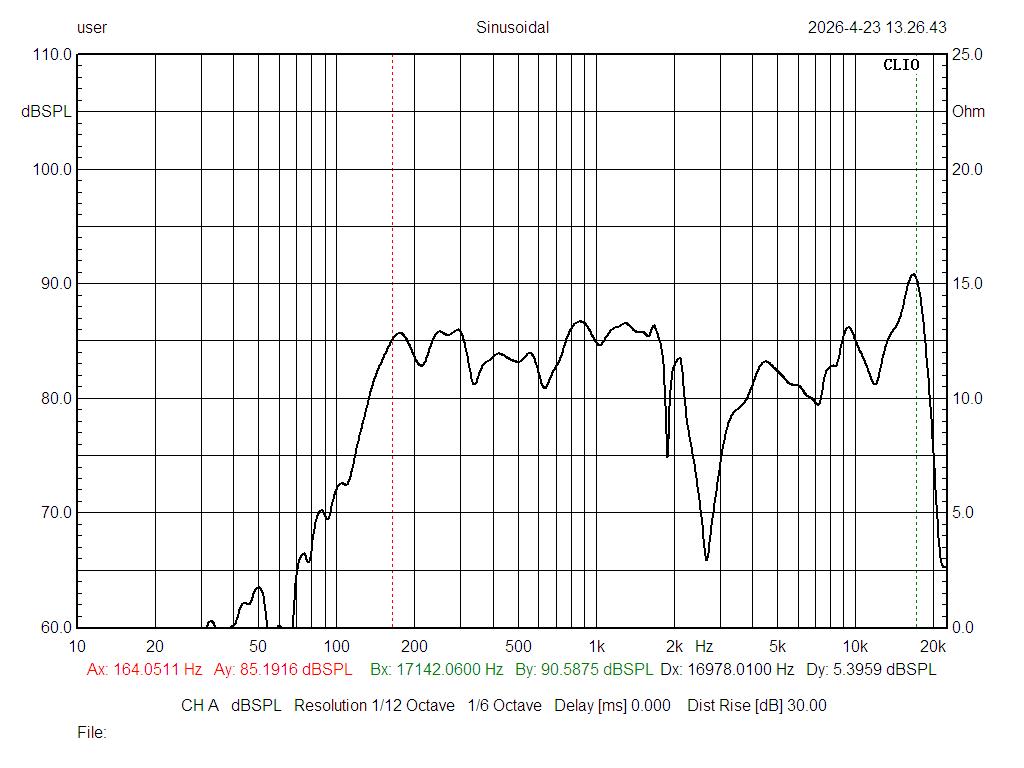

Impedance VS SPL Diagrams:
