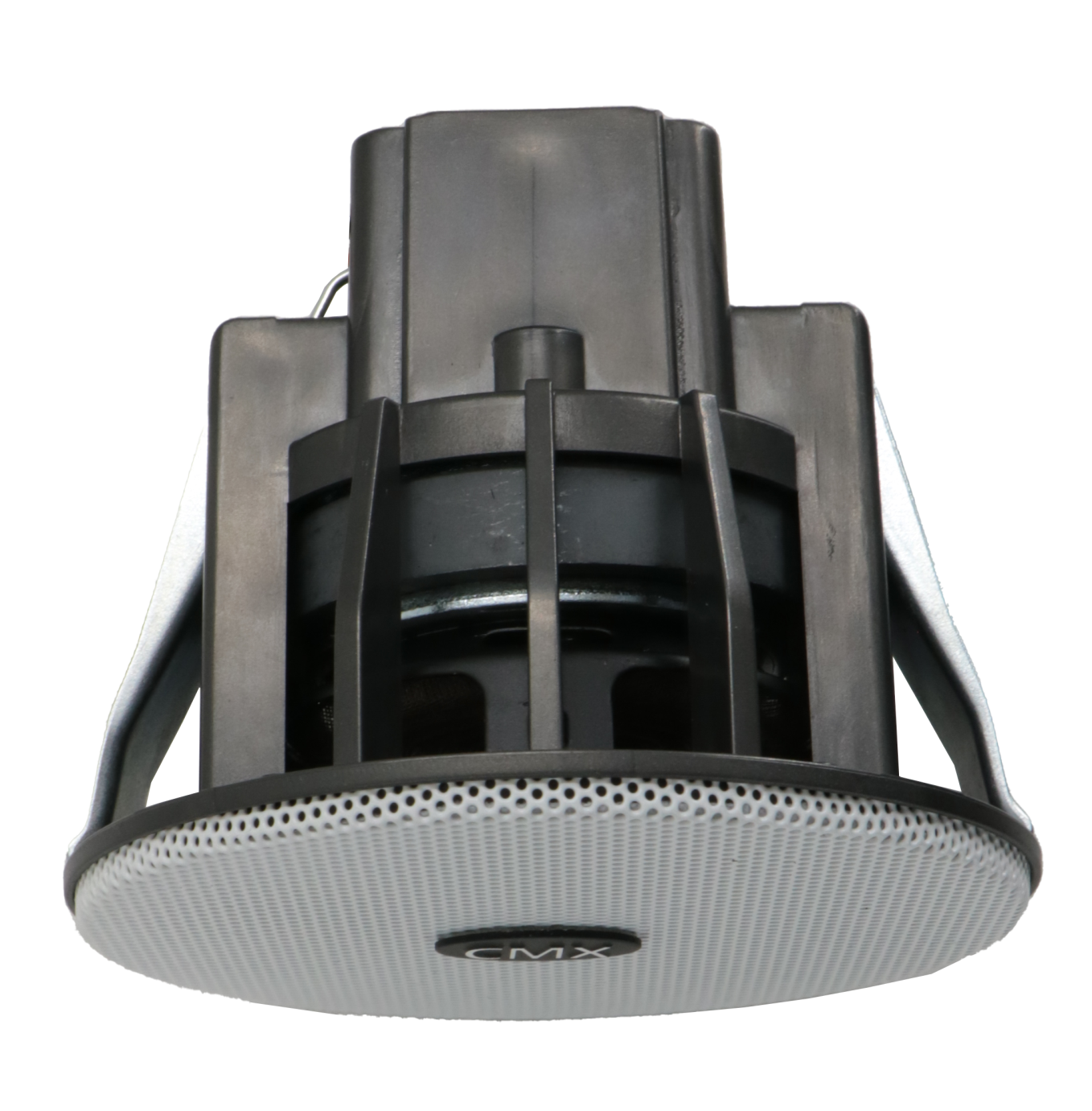

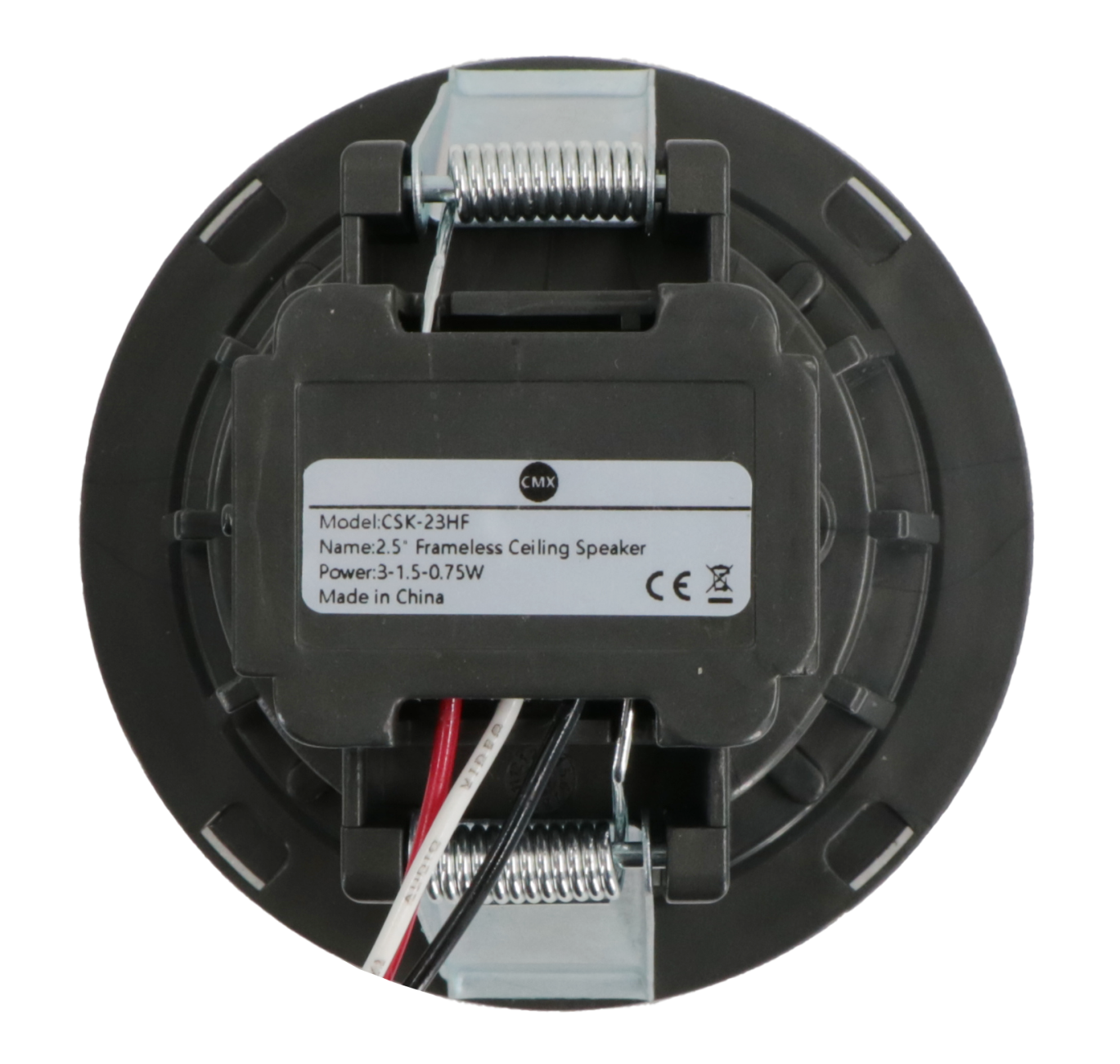

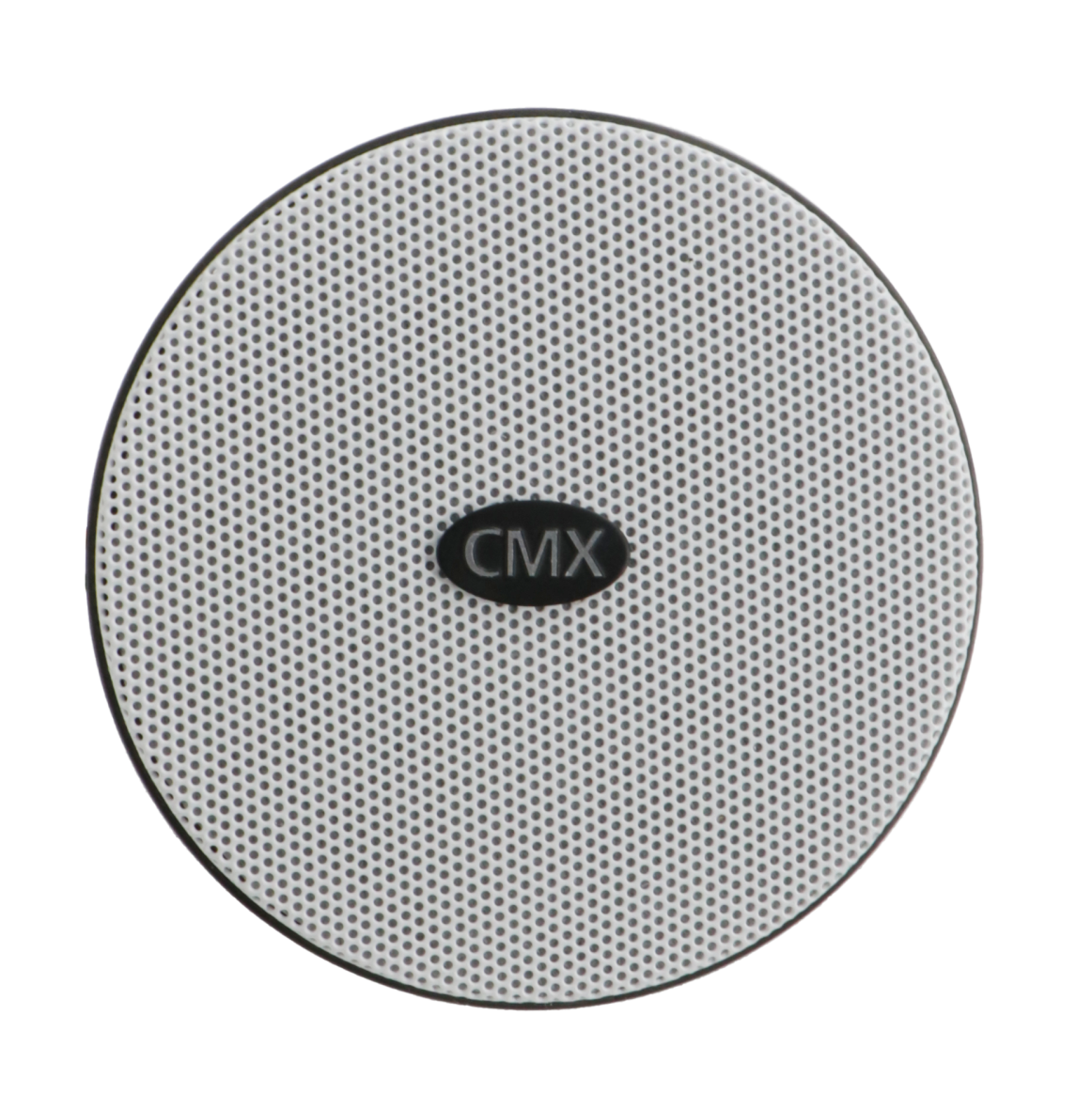

2.5” Frameless Ceiling Speaker CSK-23HF
PA Speakers 100V 70V Speakers BGM Speakers Ceiling Speaker Fireproof SpeakerCommercial ceiling speaker with 100V transformer,Built-in 100v/70v transformer for PA & VA system,Rated power output 3W-1.5W at 100V,2.5" full range paper driver unit,ABS enclosure,aluminium grille in white,In-ceiling quick installation by spring clip
PA Speakers 100V 70V Speakers BGM Speakers Ceiling Speaker Fireproof Speaker
Features:
- Commercial ceiling speaker with 100V transformer
- Built-in 100v/70v transformer for PA & VA system
- Rated power output 3W-1.5W at 100V
- 2.5' full range paper driver unit
- ABS enclosure,aluminium grille in white
- In-ceiling quick installation by spring clip
Specifications:
| Model | CSK-23HF |
| Description | 2.5” Frameless Ceiling Speaker |
| Power Taps 100V | 3W-1.5W |
| Sensitivity 1W/1m | 89±2dB |
| Frequency Response | 150-16KHz |
| Speaker Driver | 2.5” full range paper driver |
| Finish | ABS enclosure,aluminium grille in white |
| Mounting Way | In-ceiling spring clip quick installation |
| Cutout Size | Ø80mm |
| Dimensions | Ø95×77mm |
| Weight | 280g |
Installation & Wiring diagram:

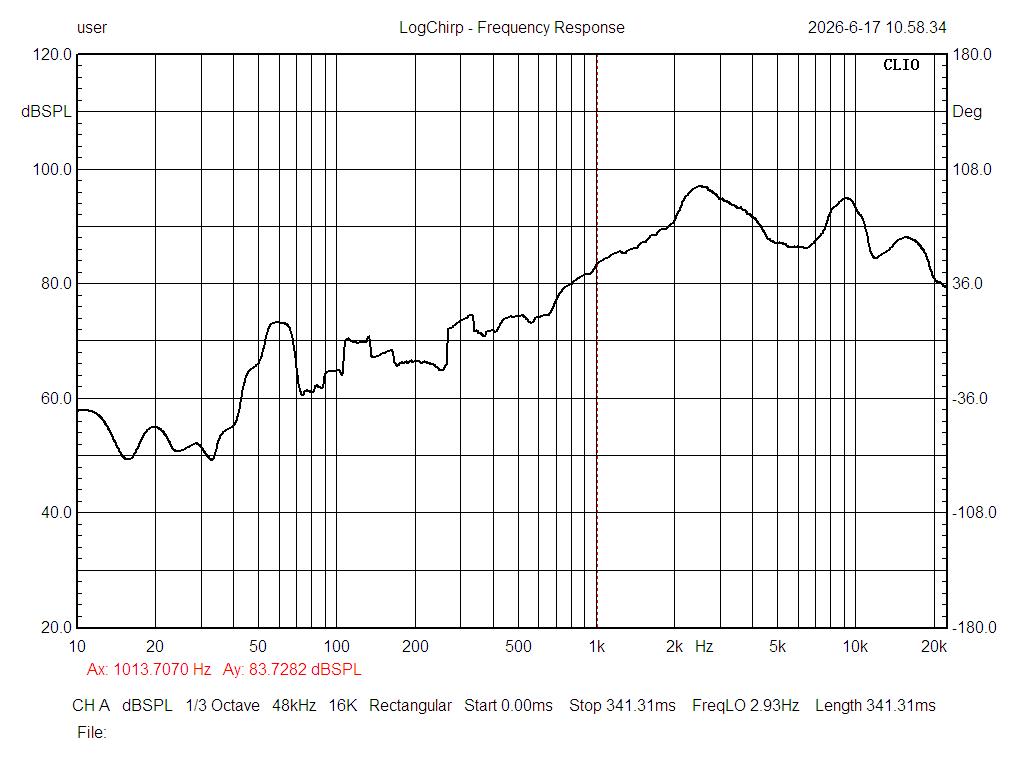

Frequency Response and Impedance Diagram:
