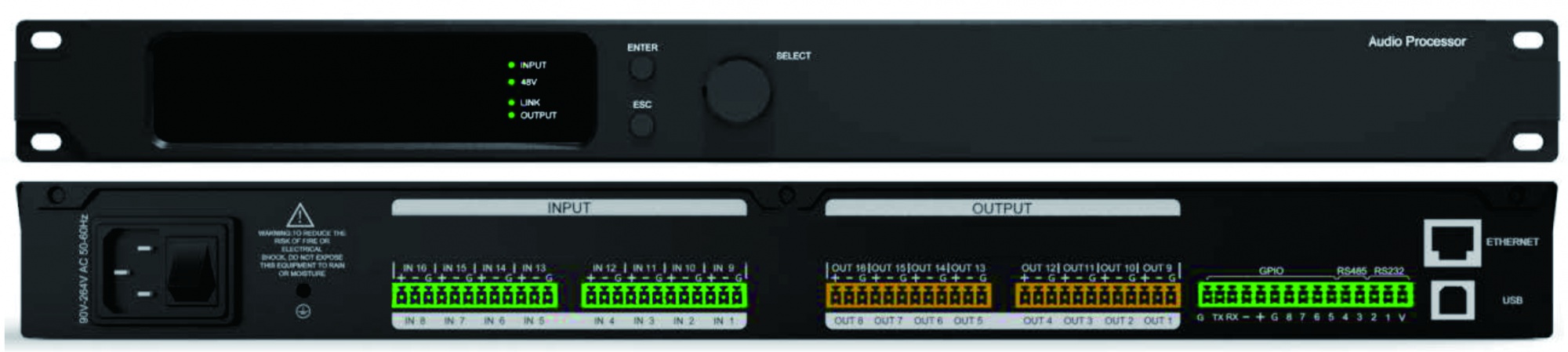

16 In 16 Out DSP Audio Matrix Controller CS-P16A
Conference System Digital Conferencing SolutionsCS-P16A is a 16-in 16-out automatic mixing media matrix, equipped with 16 analog inputs
and 16 analog outputs, built-in feedback suppression, automatic mixing, matrix mixing, equalizer,
distributor, compressor and other DSP functions , This device supports Dante network audio
function expansion, connected to computer software control via USB free drive, RS232, RS485,
TCP/IP connection central control remote control, suitable for amplifying projects in various
occasions.
Conference System Digital Conferencing Solutions
Features：
- 16 analog inputs and 16 analog outputs, support selecting microphone and line
- 48V phantom power switch for each input
- Each input with feedback suppression function switch, two-step adjustment
- With Automix and matrix mixing
- Input 16 PEQs and output 10 PEQs
- Control interface: USB and RJ45 by TCPIP protocol, configuring RS232, RS485 central
- Control interface, supporting GPIO external expansion control interface
Chapter 2 Technical parameters
| DSP chip | |
signal processing | 32-bit fixed/floating-point DSP 300MHz |
Audio Latency | < 1 ms |
| A/D and D/A Converters | 24-bit |
| Sampling Rate | 48KHz |
| ANALOG AUDIO INPUTS AND OUTPUTS | |
| Input channels | 8/16 balanced. Mic/line level |
Connectors | 3.81 mm Phoenix Contact, 12-pin |
| Input Impedance | 11.5kΩ |
Maximum Input Level | 12dBu=3.085Vrms/Line, 12dBu=3.085Vrms/Mic@0dB 7dBu=1.735Vrms/Mic@5dB 2dBu=0.975Vrms/Mic@10dB -3dBu=0.548Vrms/Mic@15dB -8dBu=0.308Vrms/Mic@20dB -13dBu=0.173Vrms/Mic@25dB -18dBu=0.097Vrms/Mic@30dB -23dBu=0.054Vrms/Mic@35dB -28dBu=0.030Vrms/Mic@40dB |
| Maximum Output Level | 12dBu=3.085Vrms |
| Phantom power | +48VDC, 6.5mA, selectable per input |
| Output Channels | 8/16 balanced, line level |
Output impedance | 150Ω |
Audio indicators AUDIO PERFORMANCE SPECIFICATIONS | |
Frequency Response | 20Hz-20kHz(+-0.5dB)/Line 20Hz-20kHz(+-1.5dB)/Mic |
THD+N |
|
SNR | 105dB(@12dBu,1kHz,A-wt)/Line 95dB(@-7dBu,1kHz,A-wt)/Mic |
COMMUNITICATION PORTS AND INDICATORS | |
USB | Micro-B type, free driver |
RS232 & RS485 | Phoenix connector |
TCP/IP | RJ-45 |
| GPIO | Phoenix seat, Machine Archive (customizable) |
| LCD display & Button | LCD2402 |
LED Indicators | Power, Link, +48V, Audio signal |
| ELECTRICAL AND PHYSICAL | |
| Voltage Range | AC100V-240V 50/60 Hz |
| Dimension | 483mmx215mmx44.5mm |
Net Weight | 3.3kg |
| Working Temperature | -20℃--80℃ |
