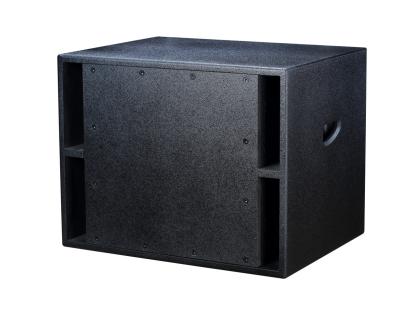

15” Subwoofer SUB115
The SUB115 is an 15" subwoofer designed to be ground stacked and used with Line Array Systems. It is also suitable for all CMX line array systems portable full-range and installation speakers especially when high quality reproduction of low frequency sound is required. The built-in 15” woofer heavy duty performance components, excellent voice restoration for entertainment system and professional sound system. Ideal for stadiums, small and mid-size life performance, theatre, conventional center &
Description:
The SUB115 is an 15" subwoofer designed to be ground stacked and used with Line Array Systems. It is also suitable for all CMX line array systems portable full-range and installation speakers especially when high quality reproduction of low frequency sound is required. The built-in 15” woofer heavy duty performance components, excellent voice restoration for entertainment system and professional sound system. Ideal for stadiums, small and mid-size life performance, theatre, conventional center & government office.
Features:
Single subwoofer with 15" drivers of 100 mm (4") dual layer voice coil providing more surface area for durability.
Optimized cabinet structure designed to reduce unwanted resonances and airflow noise.
Rated power output at 450 watts and maximum power output at 1800W at 8 Ohms.
Designed to be ground stacked in various array configurations.
Low frequency extends down to 38 Hz (@ - 10dB).
Reinforced V- Slot grille reduces internal vibration noise.
The LF drivers feature a humidity resistant paper cone.
Designed for touring concerts or stadiums fixed installation and for sound reinforcement applications.
Recommended for use with CMX Line Array Systems and all full-range speaker systems.
Specifications:
| Model | SUB115 |
| Description | 15” Subwoofer |
| Components | LF 1X15" |
| Frequency Response | 38Hz-800Hz |
| Sensitivity (1W/1 M) | 99dB |
| Max SPL | 126dB |
| Rated Power Output | 450 Watts |
| Max Power Output | 1800 Watts |
| Nominal Impedance | 8Ω |
| Matching Amplifier | Built- in amplifier 450 to 1800 Watts at 8Ω |
| Finish | 18 mm thickness high density plywood in black |
| Dimension | 655(W) x 500(D) x 500 (H)mm |
| Weight | 30kg |
