Tender Specification:
The all weatherproof wall mount speaker shall be designed with 5” weatherproof woofer and 1” silk tweeter 2-way speaker system. The rated power output at 30 watts and max power output at 60 watts. The music loudspeakers shall support 70V/100V transformer power tapping of 30W, 15W, 7.3W, 5W & 3.7 5W or as a low impedance 8 Ohm version . The wall mount speaker shall be IP66 waterproof rate, which is made of high quality ABS enclosure, stainless metal grille & stainless mounting bracket. The wall mount loudspeaker shall support wide range dispersion angle up to vertical: 180° and horizontal: 180° (1KHz). The loudspeaker is designed of high SPL up to 93±2dB and Max 98dB (1m). The Wall mount loudspeaker support all music and paging system because of its wide range frequency response of 50-20KHz. The supplied mount bracket shall support 360° rotatable bracket for horizontal and vertical installation angle adjustment. The wall weatherproof wall mount speaker comes with black & white two color option .
Feature:
Specification:
Model | WSK-530DS | WSK-530DSW |
| Description | Indoor Outdoor Wall Mount Speaker | |
| Rated Power Output | 30W and Max. 60W | |
| Power Taps | 30-15-7-5-3.75W & 8Ω | |
| Line Input | 100V or 70V & 8Ω | |
| Frequency Response | 50-20KHz | |
| SPL(@1W/m) | 93±2dB and Max 98dB (1m) | |
| IP Rate | IP66 | |
| Speaker Unit | 5' weatherproof woofer and 1” silk tweeter 2-way speaker system | |
| Dispersion | Vertical: 180° and Horizontal: 180° (1KHz) | |
| Dimension | 165 ×150 ×2 80 mm | |
| Material | ABS enclosure, stainless metal grille & stainless mounting bracket | |
| Color | Black | White |
| Mounting Way | 360° rotatable bracket for horizontal and vertical installation angle adjustment | |
| Net Weight | 2.2kg | |

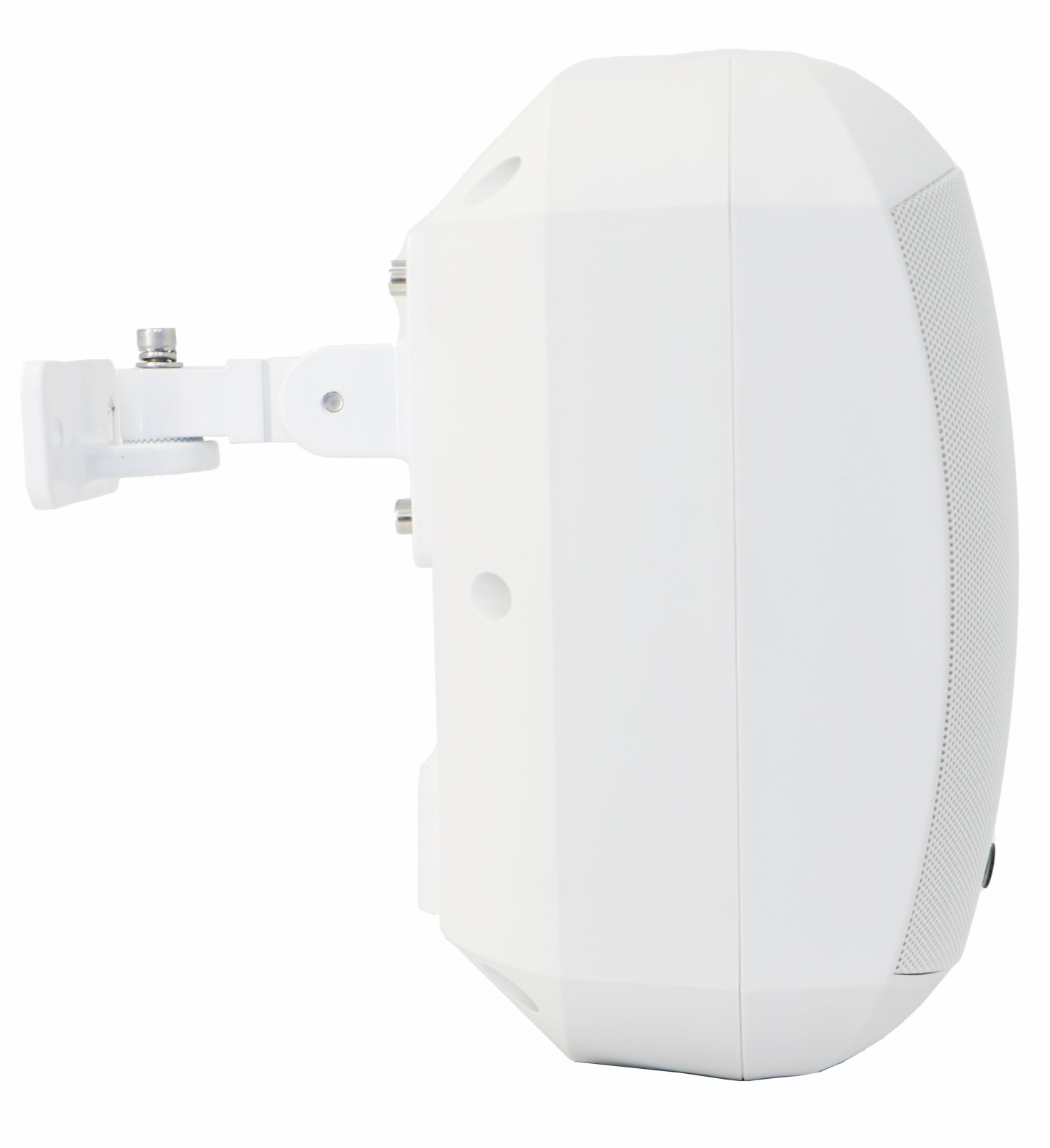

Side View:

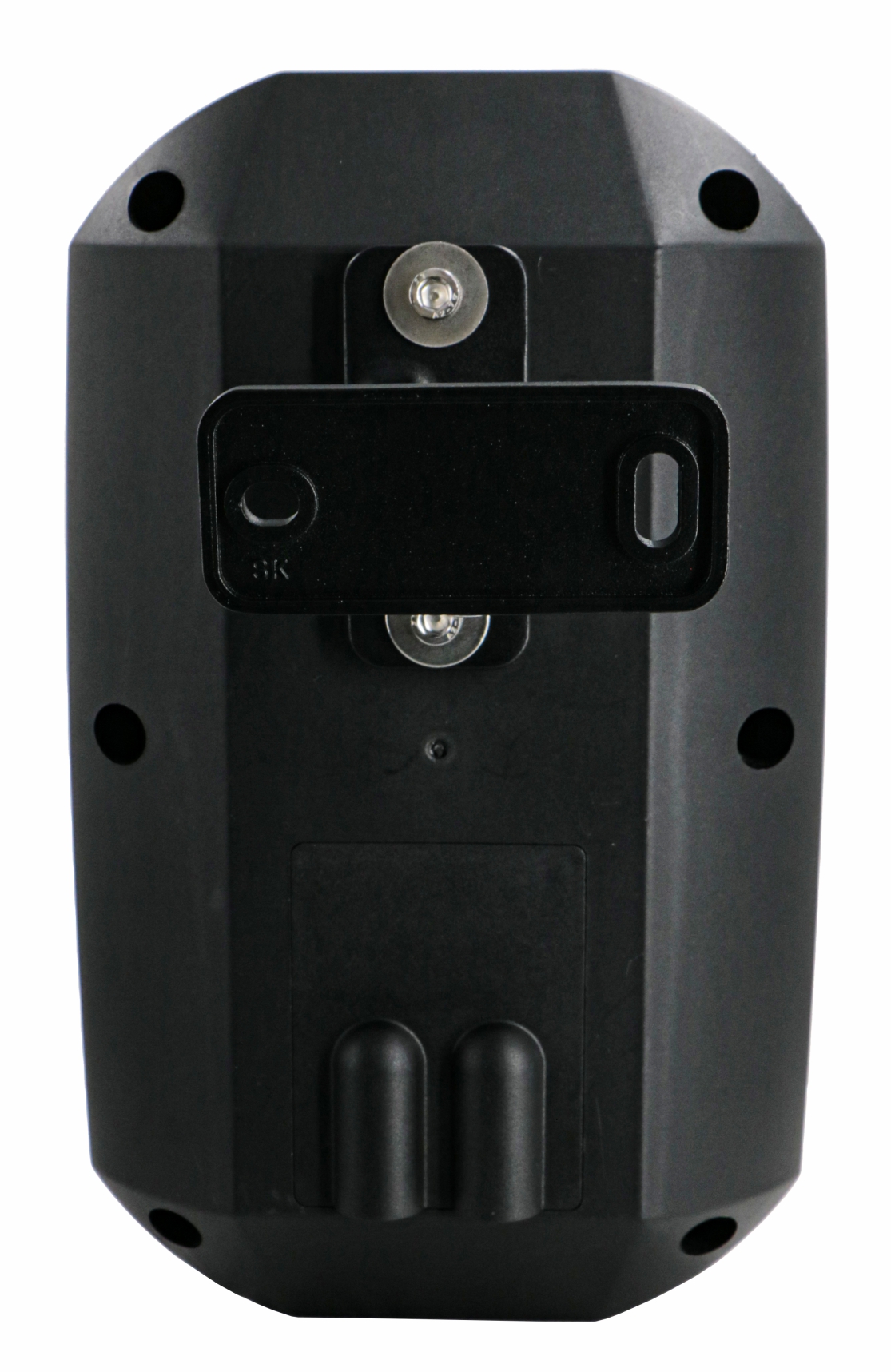

Mounting Bracket

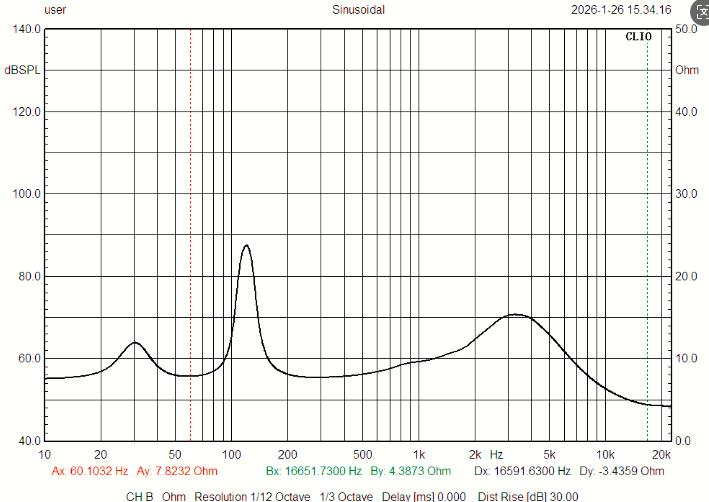

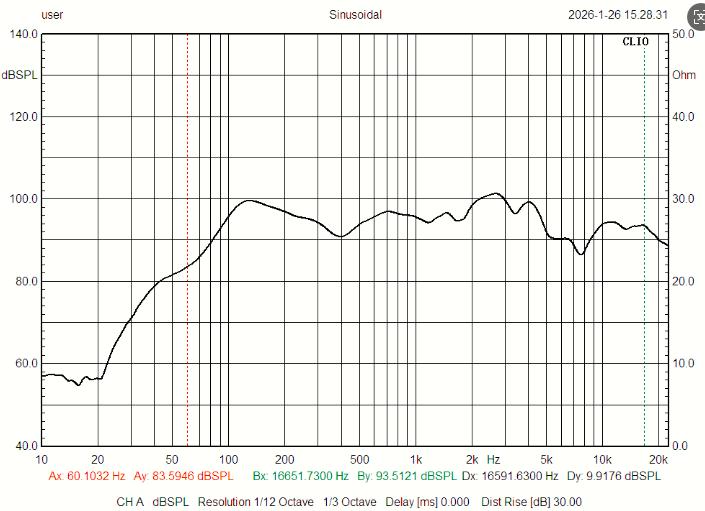

SPL & Impedance VS Freq Diagrams:
