Features:
Specifications:
| Model | SCK-812HT |
| Description | Super Bass Wooden Box Speaker |
| Power Taps 100V | 120-60-30 W & 8Ω |
| Line Input | 100V/70V & 8Ω |
| Sensitivity 1W/1m | 85±2dB |
| Frequency Response | 55Hz-550KHz |
| Speaker Driver | 8″ subwoofer+12″ passive basin speaker system |
| Finish | Slim Wooden Enclosure,ultra-thin wooden cabinet design in black |
| Mounting Way | Floor and wall installation (option) |
| Dimensions | 600×420x165mm |
| Weight | 10.7kg |
Installation & Wiring diagram:

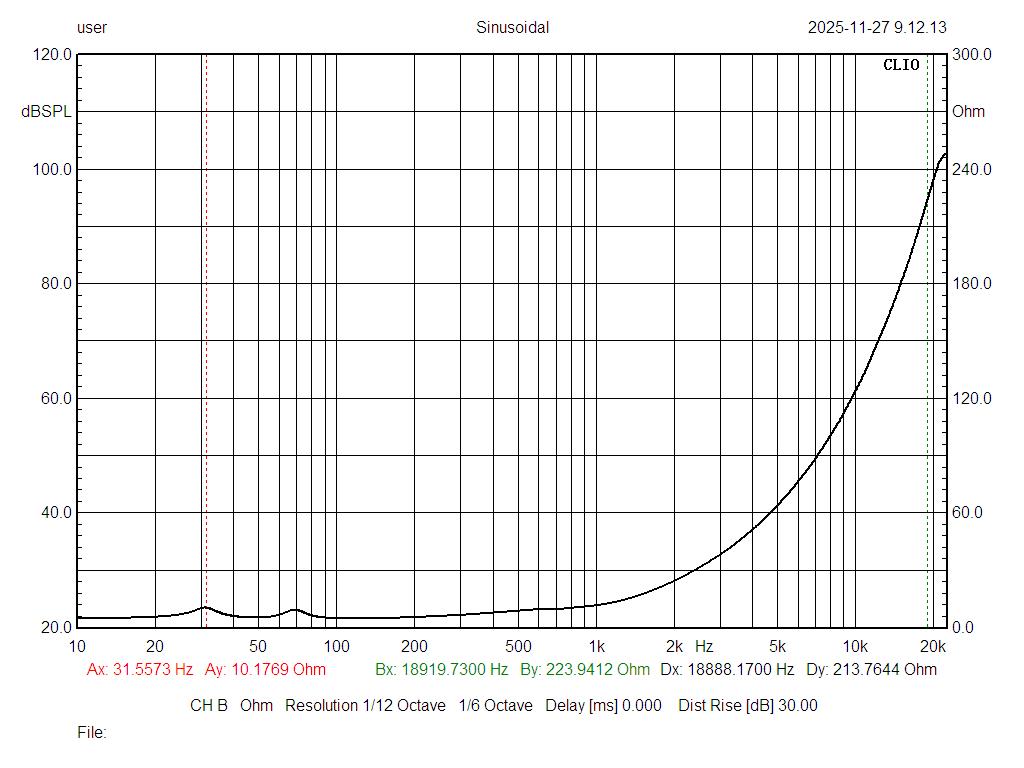

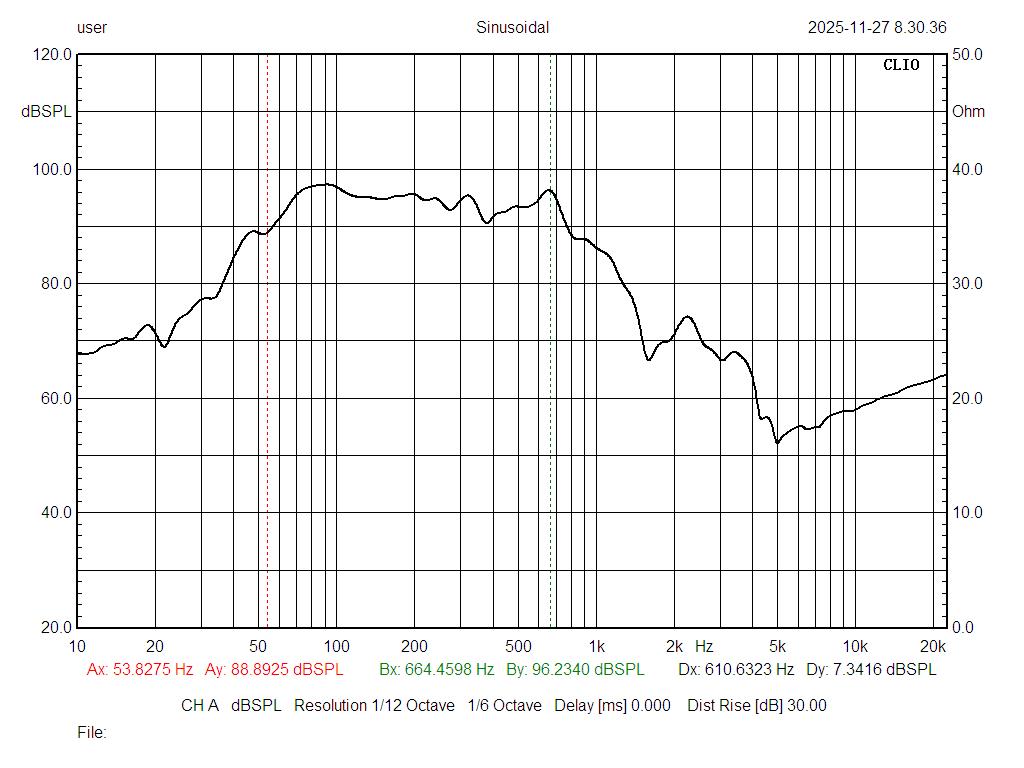

Frequency Response and Impedance Diagram:
