WIRELESS RECEIVER SPEAKER /WIRELESS TRANSMITTER HOST WAR-630/WT-200A

Product Introduction

1.The maximum number of wireless speakers that can be connected to a single transmitter host is 200.

2.Long-range transmission with signal penetration through walls.

3.Supports multiple playback modes (USB drive, Bluetooth, 3.5mm headphone audio input, etc.).

4.Supports Bluetooth 5.3 high-speed connection.

5.Audio interface supports professional-level microphone input.

6.Supports independent volume adjustment for each speaker.

7.HIFI sound quality with original sound reproduction.

8.Suitable for multiple scenarios (shops, bubble tea stores, coffee shops, clothing stores, classrooms, beauty salons, hotel rooms, etc.).

Product Usage Instructions

1.The transmitter host is connected to the receiver box in the default line mode. The function selection can be switched using the mode switch button (Bluetooth/Optical/Line mode). The USB interface does not require switching; it automatically connects when a USB device is plugged in.

2.In line mode, the LED light turns green. When connected to a phone or computer to play music, the LED light flashes in sync with the music.

3.In Bluetooth mode, the LED light turns blue. It flashes quickly when not connected and stays on when connected. The LED light flashes in sync with the music when playing music.

4.In optical mode, the LED light stays white when not playing music and flashes in sync with the music when playing.

5.To play music from a USB drive, insert the USB drive into the USB port: The LED light stays yellow when not playing music and flashes in sync with the music when playing.

6.Dry contact short-circuit: The red light stays on, and all audio signals are muted and stopped.

7.Microphone priority: The microphone is designed to suppress other audio signals through software.

8.Transmitter box power indicator: Shows a constant red light.

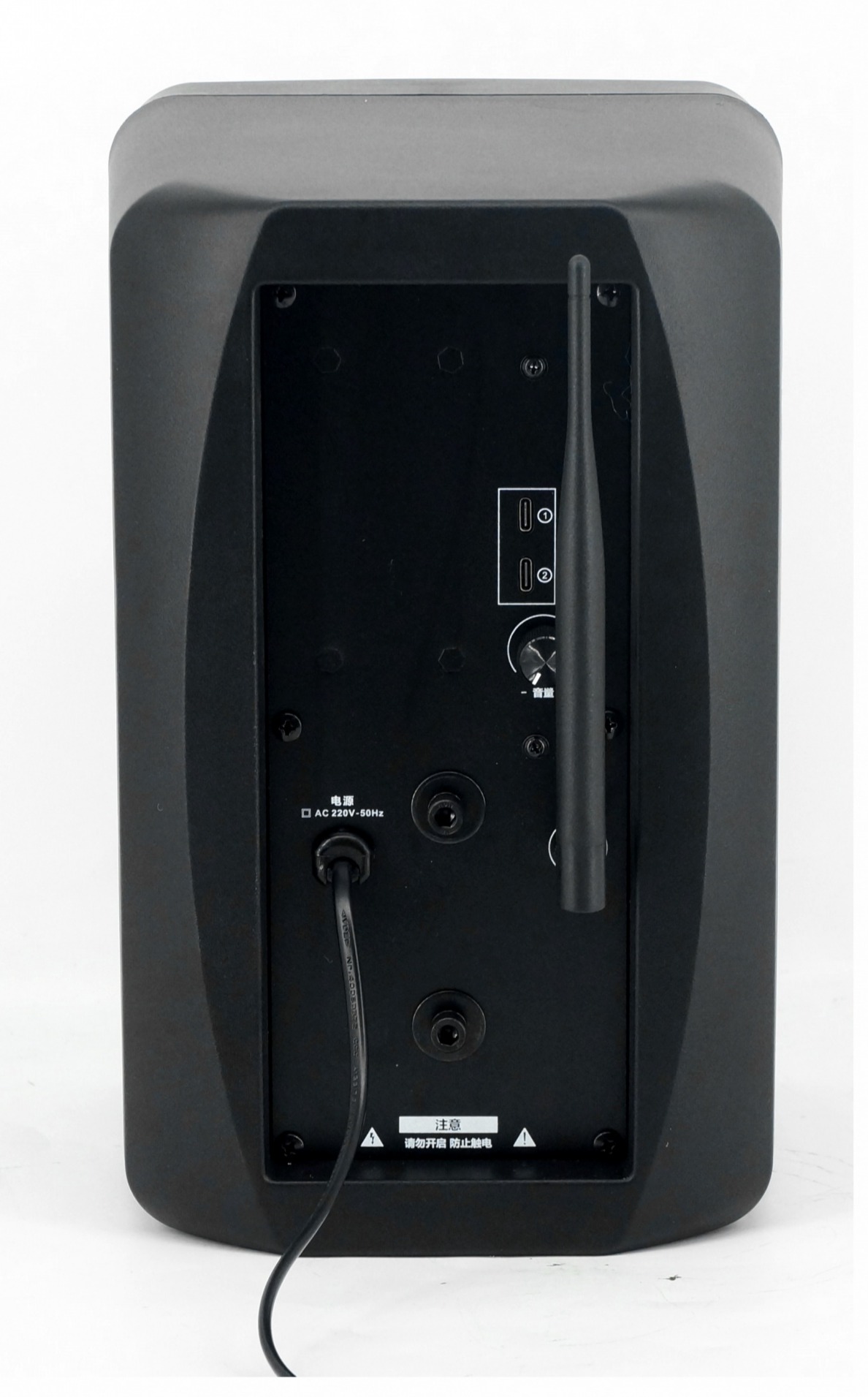

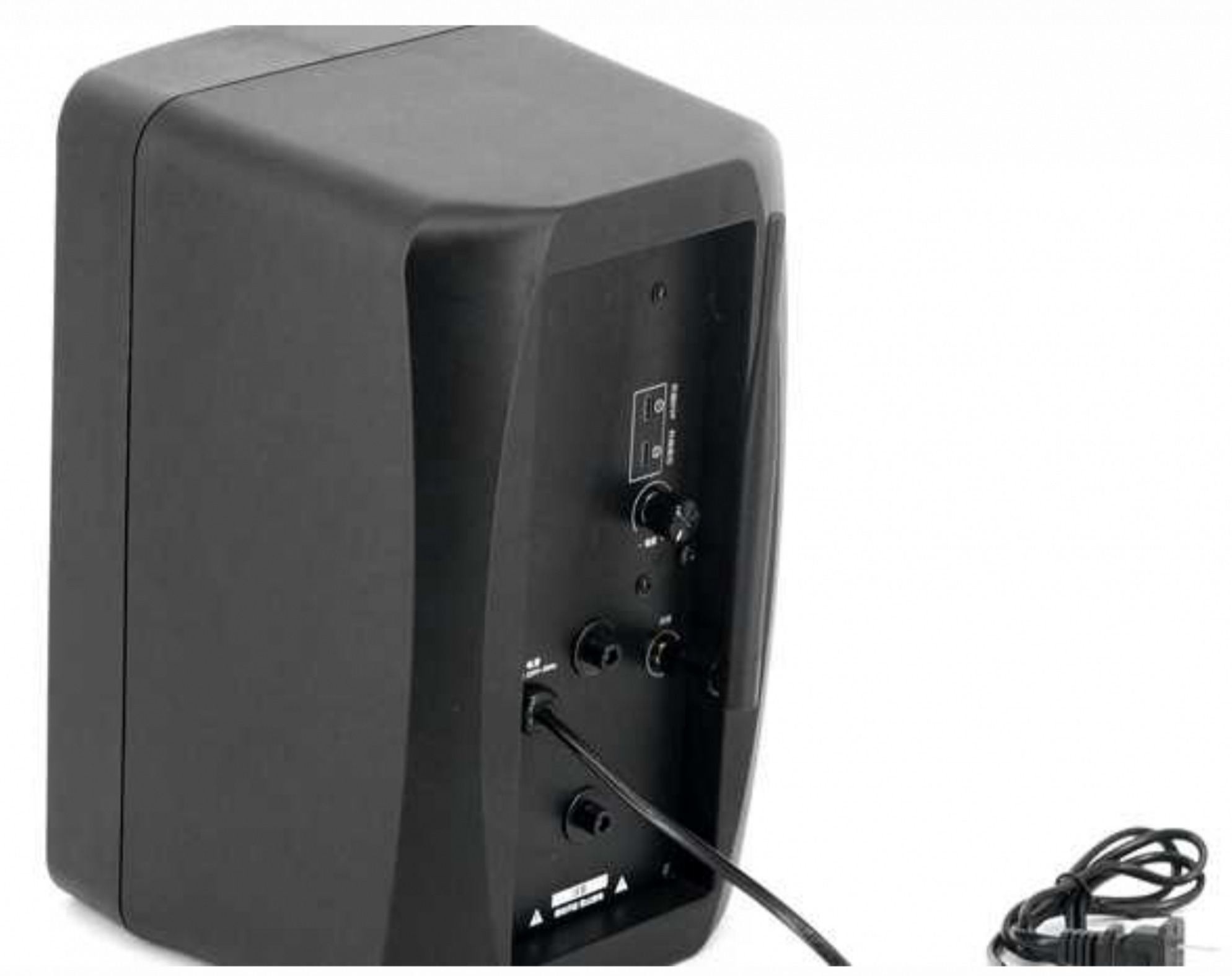

Wireless Receiver Speaker Specifications

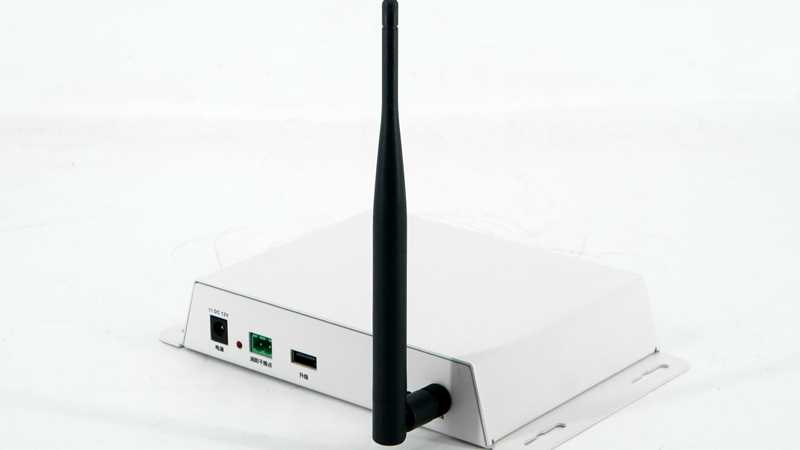

Wireless Transmitter Host Specifications
