Mixer Amplifier with USB/SD/FM/Blue Tooth DB-60A/DB-120A/DB-240A/DB-350A/DB-500A

2025-10-24 16:03:01

Click：

“ Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and Bluetooth,Speaker output of 100V & 4 Ohm-16 Ohm,Support one remote microphone input and one remote controller input, maximum distance up to 200m ”

Features:

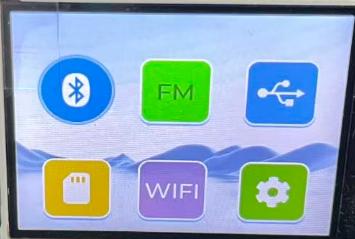

Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and Bluetooth
Rate power output at 60W, 120W, 240W, 350W to 500W
Speaker output of 100V & 4 Ohm-16 Ohm
Support one remote microphone input and one remote controller input, maximum distance up to 200m

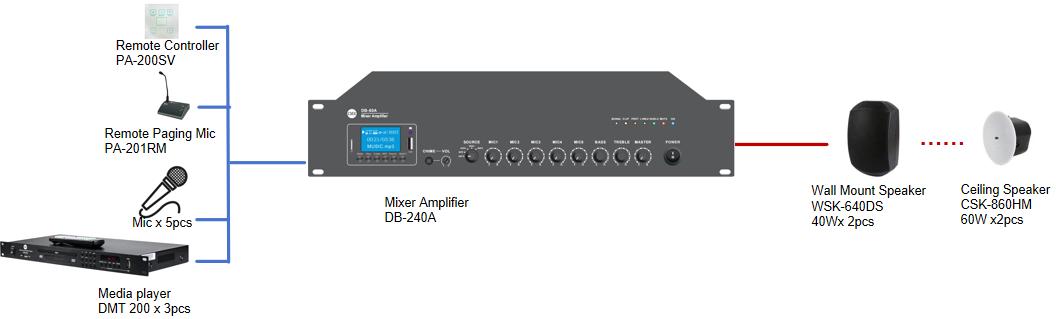

Can be used with remote paging mic PA-201RM and remote volume controller PA-200SV
Support up to 6pcs remote paging mic PA-201RM and 1pcs remote volume controller PA-200SV

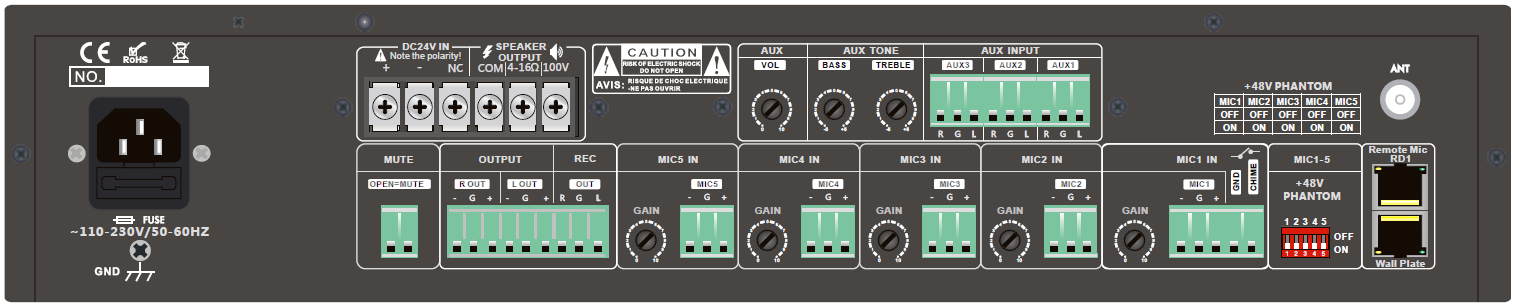

5 balanced Mic phoenix input, Aux 1-3 input and 1 Mute input,
With chime, Mic 1-5 with 48V phantom power
Independent volume control of Mic 1-5 and Aux 1-3, bass/treble and master
Priority Mute>Mic1>Remote paging Mic> others
1 output to connect power amplifier, 1 REC out to connect recorder
200V to 230V AC and 24V DC both power supply, 2U Standard cabinet design
Colorful MP3 player as an option

Specifications:

Model	DB-60A	DB-120A	DB-240A	DB-350A	DB-500A
Description	Mixer Amplifier with USB/SD/FM/Blue Tooth
Rated Power	60W	120W	240W	350W	500W
Mic Input	Mic 1-5: 5mV/600Ω,balanced
Aux Input	Aux 1-3: 200mV/10kΩ,unbalanced
Remote Paging Mic	PA-201RM, maximum distance up to 200m
Remote Controller	PA-200SV, maximum distance up to 200m
Output	600Ω/1V,balanced
Frequency Response	20-20KHz(±1dB)
S/N Ratio	>70dB
Tone	Bass:±10dB at 100Hz
Tone	Treble :±10dB at 100KHz
Power supply	AC220-230/50Hz
DC in	DC 24V/3A
Dimension	484(W)×264(D)×88(H)mm
