PAVA Emergency Broadcast System: Enhancing Hospital Safety & Emergency Response

2025-09-23 15:05:39

Click：

“ When emergencies such as sudden fires, earthquakes, medical disputes, and public health emergencies occur, the emergency broadcast can break the information barrier at the first time. It can quickly deliver precise instructions to the entire hospital area, such as "Please evacuate immediately along the west safety passageway for personnel in the ward area" and "A sudden incident has been found in the emergency hall; please keep irrelevant personnel away temporarily". This helps medical staff, pa ”

When emergencies such as sudden fires, earthquakes, medical disputes, and public health emergencies occur, the emergency broadcast can break the information barrier at the first time. It can quickly deliver precise instructions to the entire hospital area, such as “Please evacuate immediately along the west safety passageway for personnel in the ward area”and “A sudden incident has been found in the emergency hall; please keep irrelevant personnel away temporarily”. This helps medical staff, patients and their family members grasp the situation and make correct responses in the shortest time, minimizing casualties and property losses to the greatest extent. Its core functions can be divided into the following aspects:

Rapid Emergency Response
Auto broadcasting EVAC and alert 255 voice messages to pre-set zones
Logs and fault events auto recording.
Support for Host Expansion Backup & Emergency Power Supply
Support for Speaker Line Detection,automatically detects the status of speaker lines to ensure normal broadcast playback.
8 supervised control inputs & 8 control outputs, 1 fault, 1 reset & 1 EVAC relay outs.
Up to 120 zones by cascaded more router PAV A -6500RT.

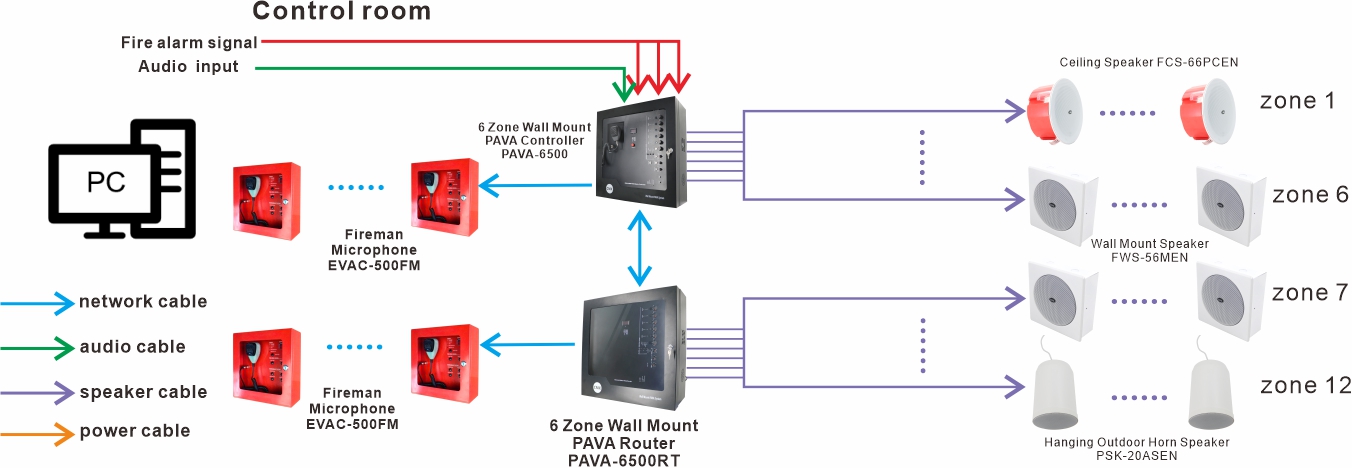

Model	Description	QTY
PAVA-6500	6 Zone EVAC Controller, built-in 500W class-D amplifier, built-in EVAC and alert voice message by SD card, with fireman microphone, with AB speaker line low impedance supervision, with amplifier auto changeover into standby when fault, with extension amplifier connector, AC and DC battery operation. EN54-16 certificate	1
PAVA-6500RT	6 Zone Router, built-in 500W class-D amplifier, with 6 zone speaker outputs and volume control, receive sources and fire alarm message from master controller, with AB speaker line low impedance supervision, with amplifier auto changeover into standby when fault, with extension amplifier connector, AC and DC battery operation. EN54-16 certificate	1
EVAC-500FM	Fireman Microphone, built-in EVAC/Alert message, program button setting, capacity is of 120 zones, DC24V power supply, with door and lock. EN54-16 certificate	4
FCS-66PCEN	EN54-24 6.5' Ceiling Speaker with Fire Dome, 6-3-1.5W, 100V, ceramic connector, thermal fuse and fire resistable cable,ABS, with EN54-24 certificate	60
FWS-56MEN	EN54-24 5' Wall Mount Speaker, 6-3-1.5W, 100V, ceramic connector, thermal fuse and fire resistable cable, with EN54-24 certificate	50
PSK-20ASEN	EN54-24 Outdoor Horn Speaker, 30-15-7.5W/100V+ 8 Ohm, ceramic connector, thermal fuse and fire resistant cable, with EN54-24 certificate	8
