Coaxial Marine Ceiling Speaker MCS-625
2025-08-27 15:53:49
Click：
“
Coaxial Marine Ceiling Speaker MCS-625,Low impedance speaker of 8 Ohms.6” coaxial waterproof PP driver unit.Waterproof & dust-proof IP rate of IP66,Ideal for marine, ship, washroom, bathroom BGM.
”
Feature:
- Weatherproof marine ship or vessel use loudspeaker.
- Waterproof marine ceiling speaker.
- Outdoor & indoor use marine ceiling speakers.
- Ideal for marine, ship, washroom, bathroom BGM.
- Low impedance speaker of 8 Ohms.
- 6” coaxial waterproof PP driver unit.
- Waterproof & dust-proof IP rate of IP66
- ABS enclosure and ABS grille in white.
- In-ceiling quick & secure installation.
Specification:
Model | MCS-625 |
| Description | Coaxial Marine Ceiling Speaker |
| Speaker Size | 6”+0.5”MYLAR |
| Rated Power Output | 25W |
| Max Power Output | 45W |
| Impedance | 8 Ohms |
| Frequency Response | 95-20KHz |
| SPL(@1W/m) | 90±3dB |
| Speaker Unit | Coaxial waterproof PP cone |
| Dimension | 190(D)×90(H)mm |
| Cutout Size | 164mm |
| Material | ABS enclosure and ABS grille in white |
| Mounting Way | In-ceiling quick installation |
| IP Rate | IP66 |
| Operation Temp | -20℃ to +55℃ |
| Humidity | 90-95% |
| Weight | 0.6kg |

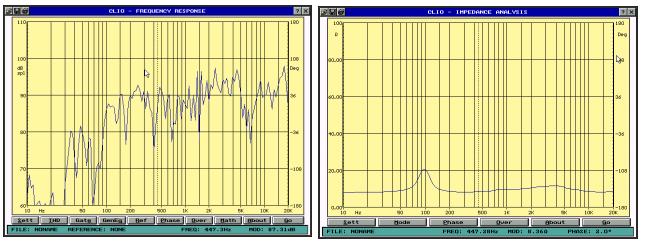

Side View, Mounting & Frequency VS SPL Diagrams:
