WSK-530ESW/WSK-530ES 5" Wall Mount Speaker
2025-08-13 11:17:08
Click：
“
WSK-530ESW/WSK-530ES 5" Wall Mount Speaker，Power output 30-15-7.5-3.75W & 4Ω,5" woofer and 1” tweeter two way speaker system,IP55 waterproof , Ideal for school, office, hotel and airport background music system
”
Feature:
| General Specification | |
| Type | WSK-530ESW/WSK-530ES |

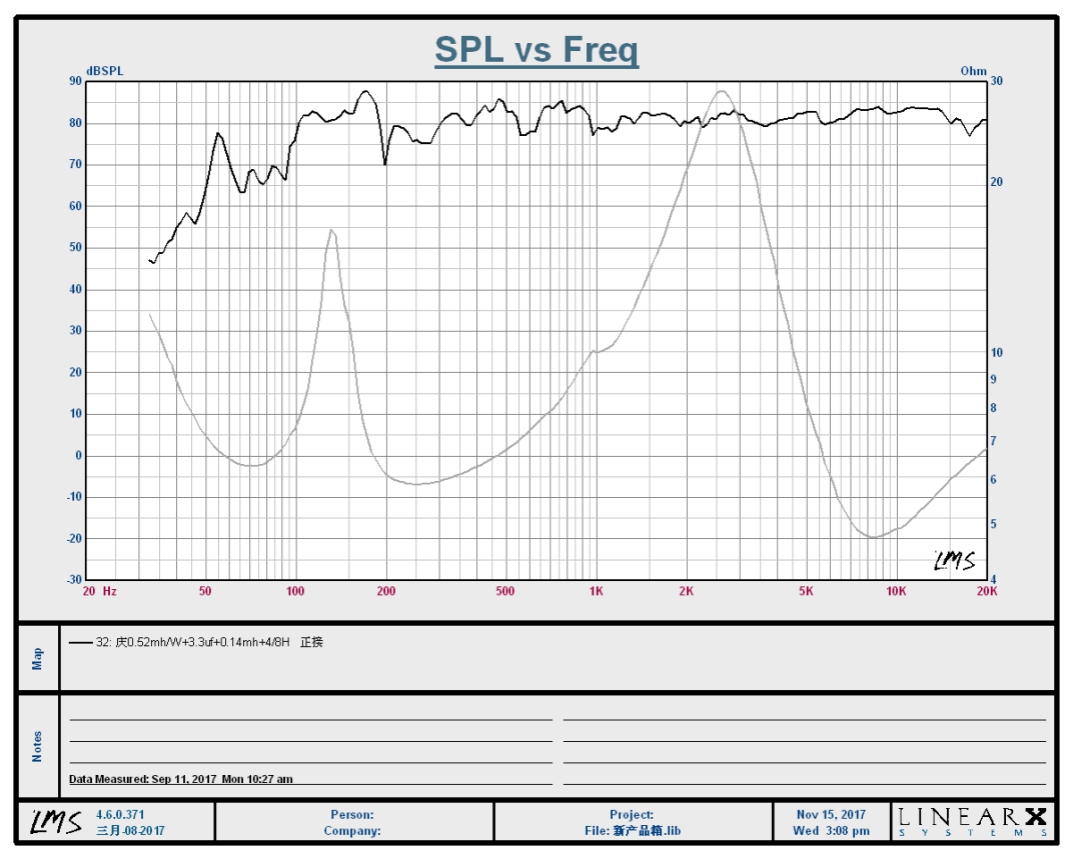

| Frequency Response | 60zzH-20KH |
| Sensitivity | 88±3dB |
| Rated Power | 30W |
| Rated Taps | 3.75W/7.5W/15W/30W&4Ω |
| Line voltage | 70V/100V |

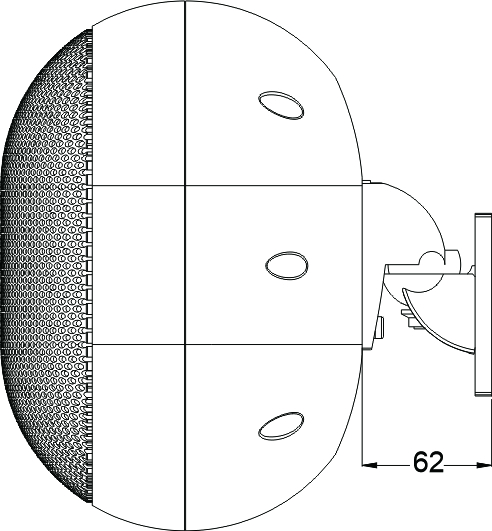

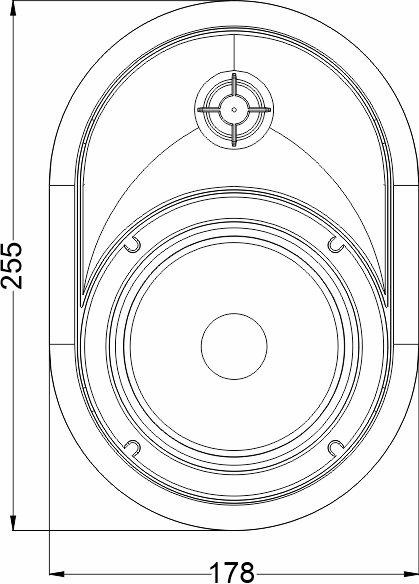

| Dimension(mm) | 178*236*255 |
| Physical Specification | |
| Material | HIPS |
| Grill | Powder Coated MeshAL |
| Component(L.Speaker) | 5' Woofer |
| Component(H.Speaker) | 1' The Films |
| Finished Colour | White/Black |
| Unit Weight | 2.38Kg |
| Gross Weight | 12.5Kg/4PCS |
| Packing Dimension(cm) | 49*48*34 |
| Woofer Speaker Specification | |
Voice Coil Size | Φ25.5*Φ0.21*2Layer |
| DC Impedance | 3.3Ω |
| Former | KSV |
Magnet | Ferrite(305g) |
| Φ80*Φ32*15(Y30) | |
| Basket | Iron |
| Cone Material | PP |
| Spider | Cloth |
| Dust cap | PP |
| Net Weight | 735g |
