Features:
Specifications:
Model | CSK-860HR |
| Description | 6.5” Two Way Frameless Ceiling Speaker |
| RMS Power | 60W@8ohm |
| Max Power | 80W@8ohm |
| Sensitivity | 1W/1m 98dB |
| Frequency Response | 60Hz-18KHz |
| Speaker Driver | 6.5” woofer and 1.5” silk teeter coaxial speaker system |
| Finish | ABS enclosure, metal grille |
| Cutout Size | Ø245mm |
| Dimensions | Ø285×100mm |
| Weight | 1.75kg |
Installation & Wiring diagram:

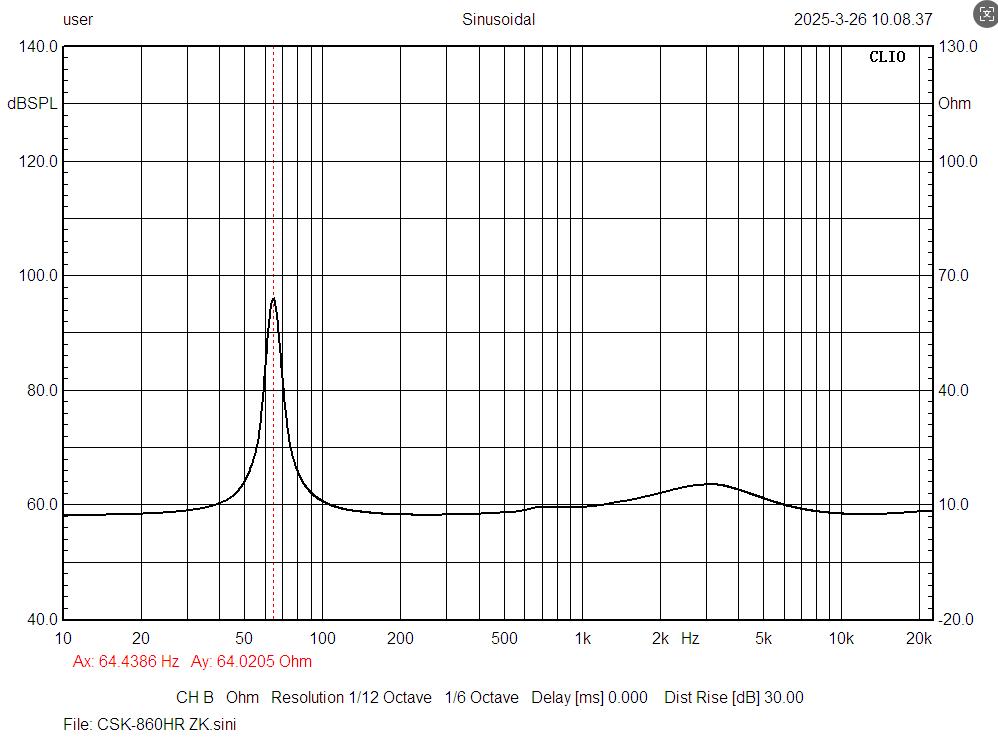

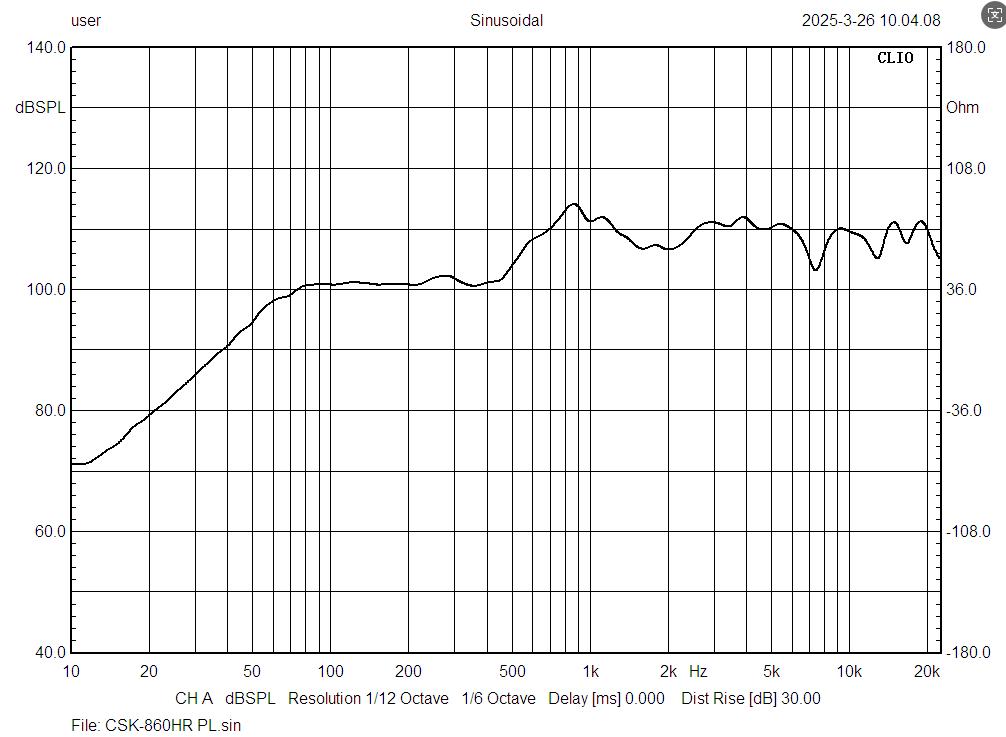

Frequency Response and Impedance Diagram:
