CMX PAVA-6500 EVAC Supermarket Solution

2025-06-16 09:36:27

Click：

“ As a crowded public place, the emergency broadcast system is one of the core lin ”

As a crowded public place, the emergency broadcast system is one of the core links of security protection in supermarkets. It has the following functions:

Rapid response to emergency events. The PVAV system has a default alarm priority level. In response to emergencies, the alarm and evacuation route are broadcast in the first time to avoid trampling;
Automatic emergency broadcast for firefighting, support docking with firefighting system, and automatically trigger the broadcast of fire alarms;
Daily safety hazard management and control, support broadcast paging, children/elderly people lost: the efficiency of searching through broadcasting is much higher than manual search;
Support host expansion backup and emergency power supply. The host built-in amplifier fails and quickly switches to the backup amplifier. When the main power of the supermarket is cut off, the backup emergency power supply can be switched to ensure the stable operation of the system;
Support speaker line detection, automatically detect the status of the speaker line, and ensure the normal broadcast;
Background music, support 12 partitions to play supermarket background music, creating a good supermarket atmosphere;

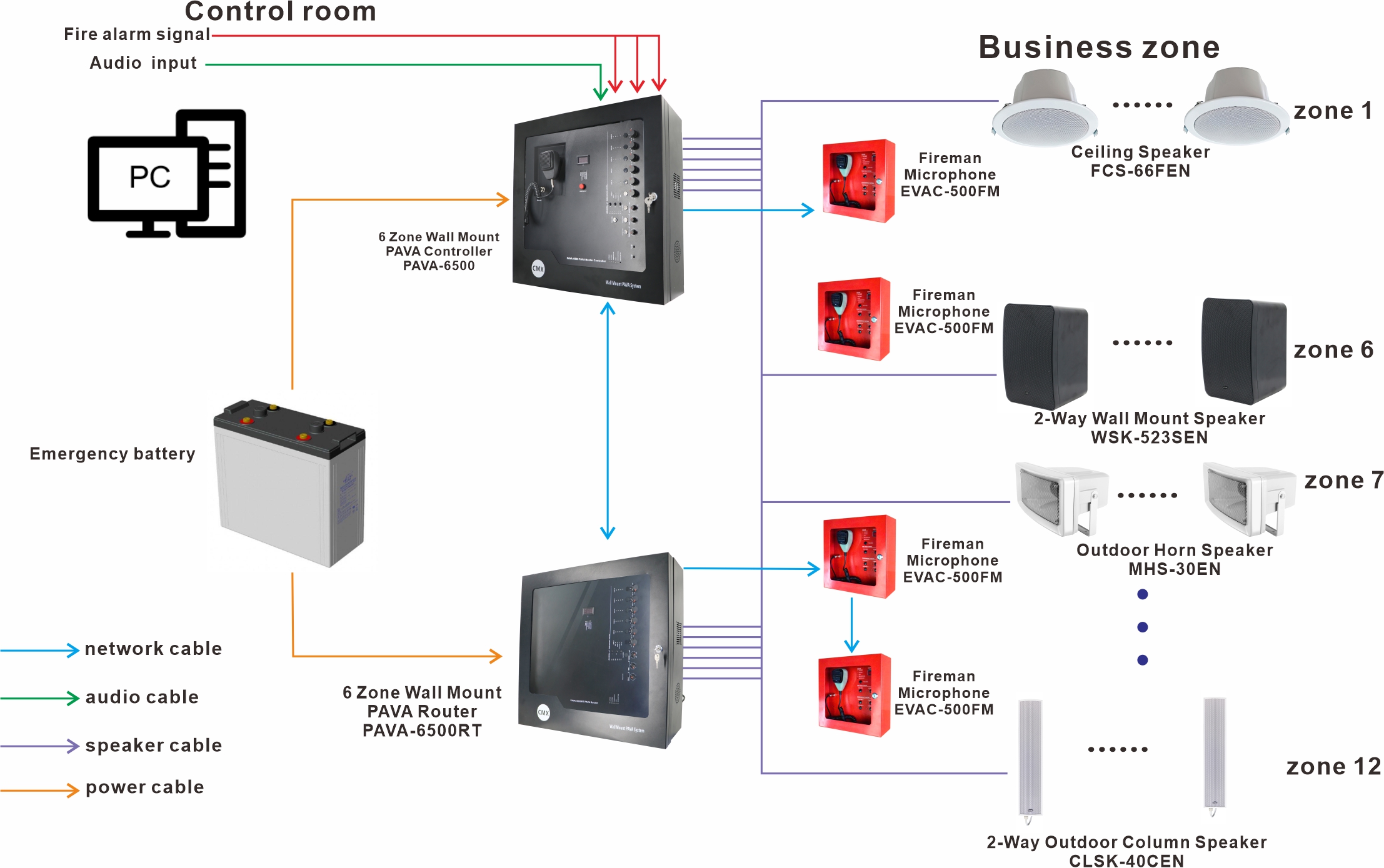

Model	Description	QTY
PAVA-6500	6 Zone EVAC Controller, built-in 500W class-D amplifier, built-in EVAC and alert voice message by SD card, with fireman microphone, with AB speaker line low impedance supervision, with amplifier auto changeover into standby when fault, with extension amplifier connector, AC and DC battery operation. EN54-16 certificate	1
PAVA-6500RT	6 Zone Router, built-in 500W class-D amplifier, with 6 zone speaker outputs and volume control, receive sources and fire alarm message from master controller, with AB speaker line low impedance supervision, with amplifier auto changeover into standby when fault, with extension amplifier connector, AC and DC battery operation. EN54-16 certificate	1
EVAC-500FM	Fireman Microphone, built-in EVAC/Alert message, program button setting, capacity is of 120 zones, DC24V power supply, with door and lock. EN54-16 certificate	4
FCS-66FEN	EN54-24 6.5' Ceiling Speaker with Fire Dome, 6-3-1.5W, 100V, ceramic connector, thermal fuse and fire resistable cable, with EN54-24 certificate	60
WSK-523SEN	EN54-24 5.25' 2-Way Wall Mount Speaker,30-15-7.5-3.75W/8ohm&100V/70V,ceramic connector, thermal fuse and fire resistable cable	4
MHS-30EN	EN54-24 Outdoor Horn Speaker, 30-15-7.5W/100V+ 8 Ohm, ceramic connector, thermal fuse and fire resistant cable, with EN54-24 certificate	10
CLSK-40CEN	EN54-24 certificated 3' 2-Way Outdoor Column Speaker, 40-20-10W/100V+8 Ohm, Aluminum, IP66, thermal fuse, fire-resistant cable and cable gland, ABS, with EN54-24 certificate	4
