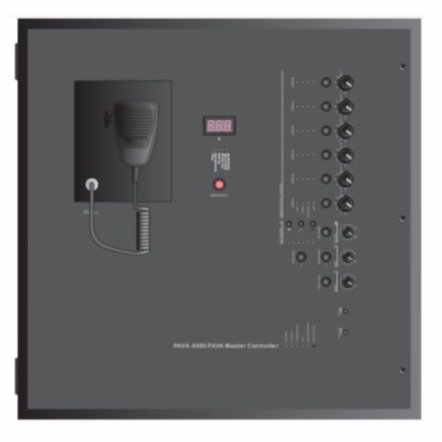

6 Zone Wall Mounted Voice Evacuation System Controller PAVA-6500

Description:

The PAVA-6500 wall mounted voice evacuation controller is EN54-16 certified public address & voice evacuation system .The all in one voice alarm & evacuation controller built-in remote PC software, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier, voice recorder, SD card, emergency microphone and fire alarm interface. The voice evacuation controller is innovated with DSP (digital signal processor) to ensure its hi-fi audio performance and superior signal processing in case of commercial announcement and emergency evacuation . Each controller built-in 6 zone speaker outputs, rated power output at 500W. The voice evacuation controller shall be pre-set through the supplied software over microphone number, zone number, zone loading, speaker monitoring, fire alarm mode, alert/EVAC message zone output, AC/DC etc, then synchronized the setting to master controller and router. The voice evacuation system is strictly follow the Construction products Regulation（EU）No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment.

Feature:

• EN54-16 certification No . I/ISEETC. 000620190305.

• Digital wall mounted voice evacuation system all in one controller.

• Integration of voice evacuation controller, remote PC software, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier, voice recorder,SD card, emergency microphone and fire alarm interface.

• Auto broadcasting EVAC and alert 255 voice messages to pre-set zones .

• Customized alert, evacuation & business message stored at SD card.

• AB speaker line surveillance to avoid any speaker line failure. Back-up power amplifier management.

• Up to 120 zones by cascaded more router P A V A -6500RT.

• Support 32 units of remote paging microphone EVAC-500RM/EVAC-500FM/EVAC/500TM not over 600m.

• Support external connection of fireman microphone EVAC-500FM and touch screen microphone EVAC-500TM.

• Redundant network cabling backup through CAT6 cable loop connection.

• 8 supervised control inputs & 8 control outputs, 1 fault, 1 reset & 1 EVAC relay outs.

• Logs and fault events auto recording.

• Built in 500W digital amplifiers & Intelligent 24V high-efficiency battery charger, can be auto charging when AC power supply is used

• PAVA-6500RT work as extender amplifier, EVAC-500RM/EVAC-500TM work as remote paging mic, EVAC-500FM work as fireman mic, EVAC-500SF work as the PC software, all of them are the key one part of this system, they can form a voice evacuation system with PAVA-6500.


Specification:

6 zones PAVA System Connection Diagram:

12 zones PAVA System Connection Diagram:

18 zones PAVA System Connection Diagram:
