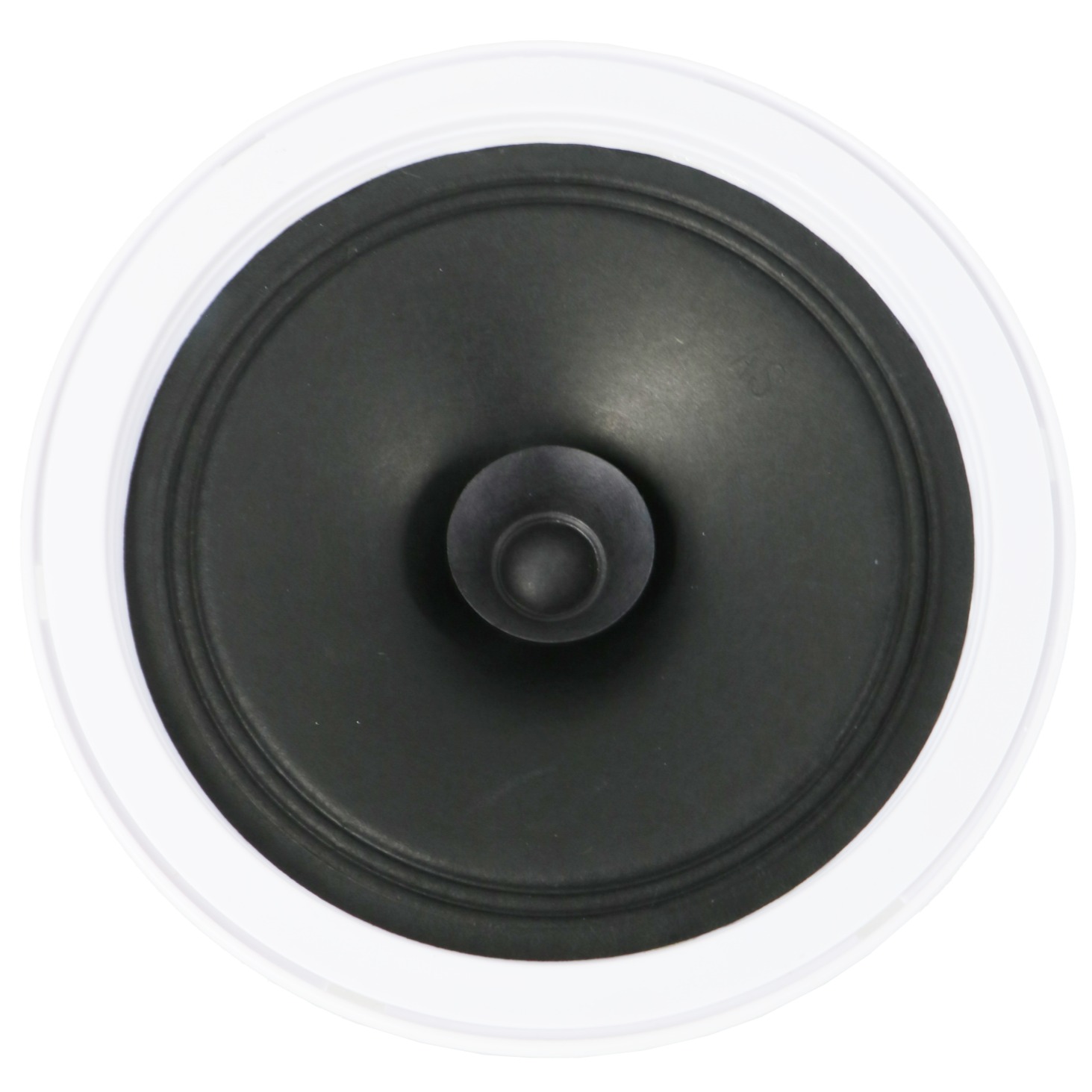

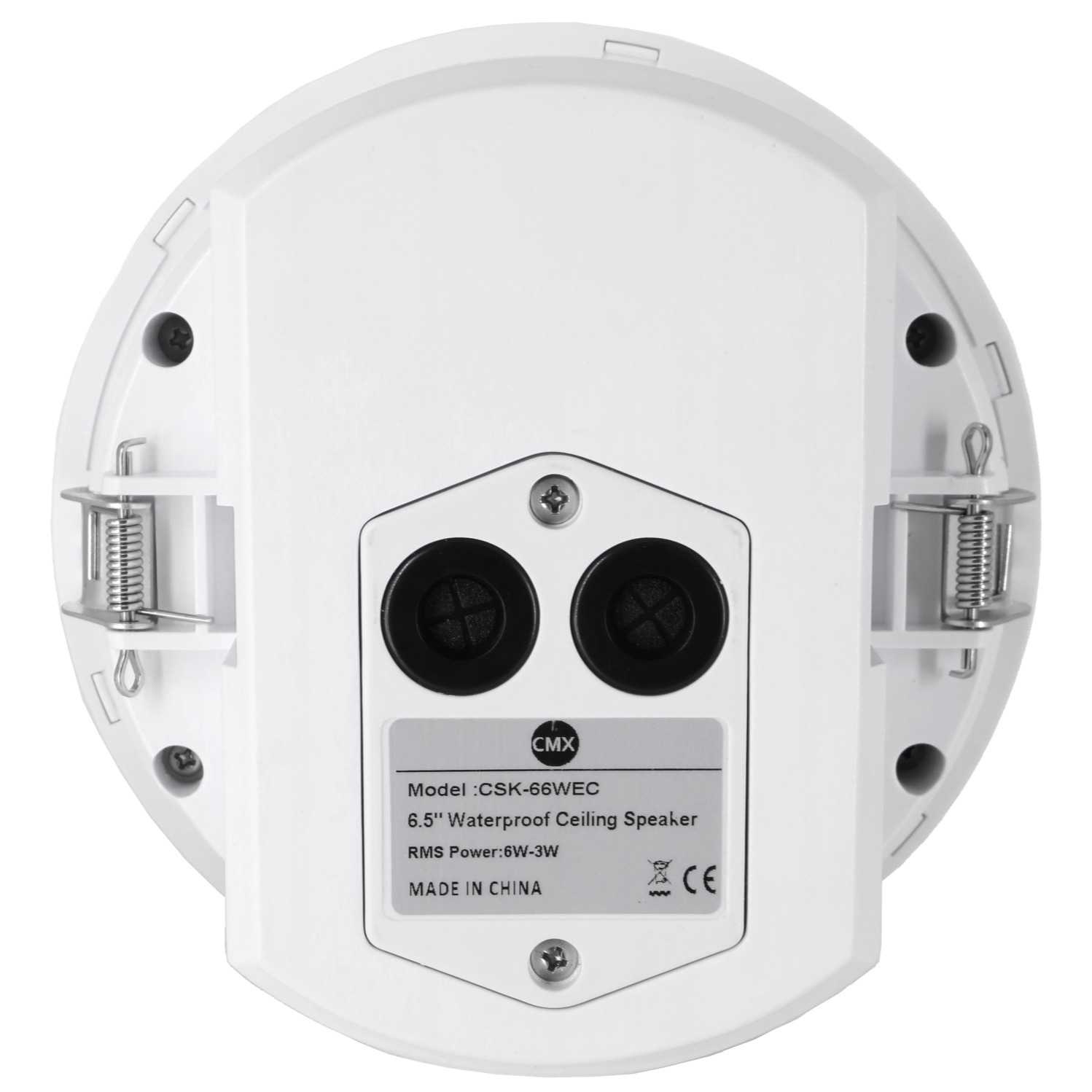

EN54-24 6.5” Waterproof Ceiling Speaker with Back Can CSK-66WEN
2025-05-14 15:03:00
Click：
“
CSK-66WEC is EN54-24 6.5” Waterproof Ceiling Speaker with Back Can, 100V transformer with 6W/3W power tapping, ideal for background music system and commercial audio solutions.
”
Features:
- Compliant with the EN54-24 standards
- Built-in 100v/70v transformer for PA & VA system
- Commercial fireproof ceiling speaker with transformer
- Ceramic connector, fire dome, 95℃ fire-resistant cable and thermal fuse.
- Rated power output 6 /3 /1.5 /0.75 W at 100V
- 6.5' full range paper driver unit
- IP55 waterproof rate
- V0 fire resistant ABS enclosure,back box and ABS grille in white
Specifications:
Model | CSK-66WEN |
| Description | EN54-24 6.5” Waterproof Ceiling Speaker with back can |
| Power Taps 100V | 0.75W-1.5W-3W-6W |
| Sensitivity 1W/1m | 93±3dB |
| Frequency Response | 100-15KHz |
| Speaker Driver | 6.5” full range paper driver |
| IP Rate | IP55 |
| Finish | V0 fire resistant ABS enclosure,back box and ABS grille in white |
| Mounting Way | In-ceiling spring clip quick installation |
| Cutout Size | Ø170mm |
| Dimensions | Ø186×110mm |
| Weight | 520g |
Installation & Wiring diagram:

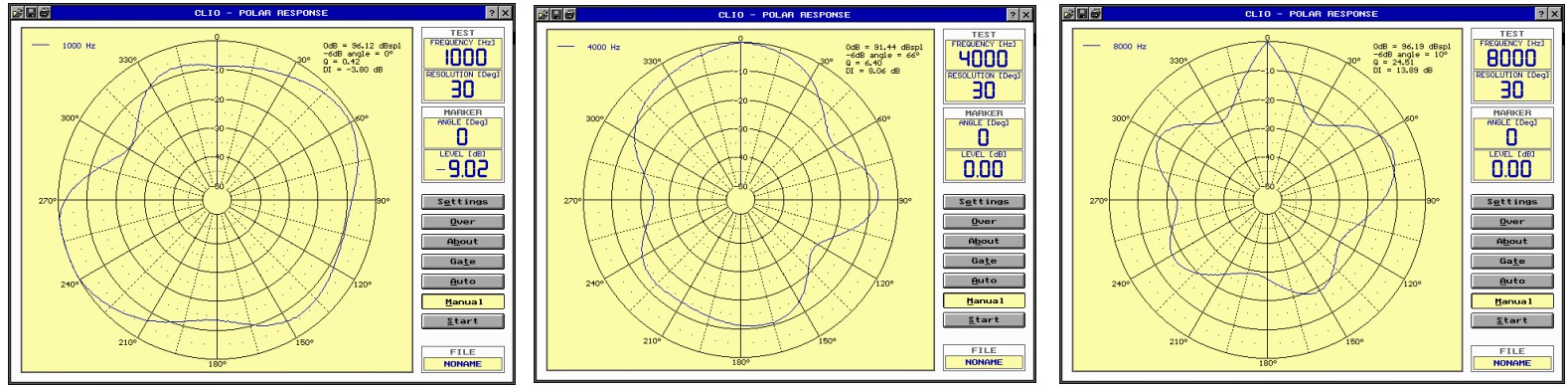

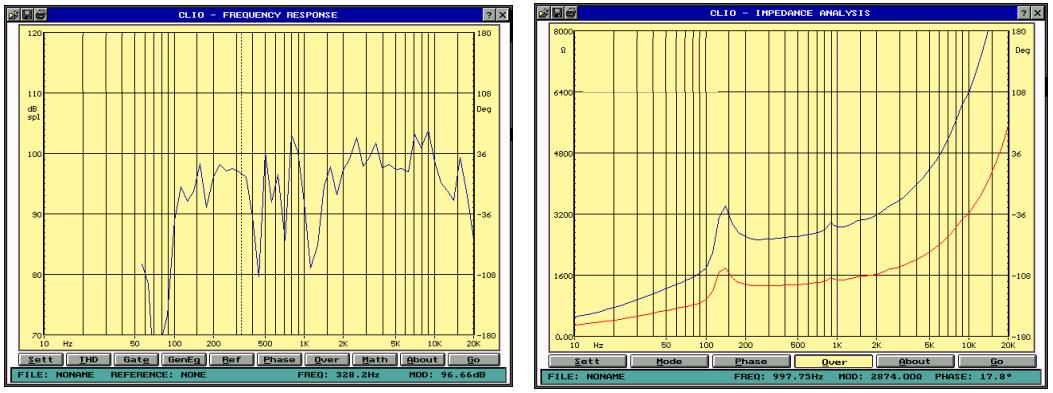

Frequency Response and Impedance Diagram:
