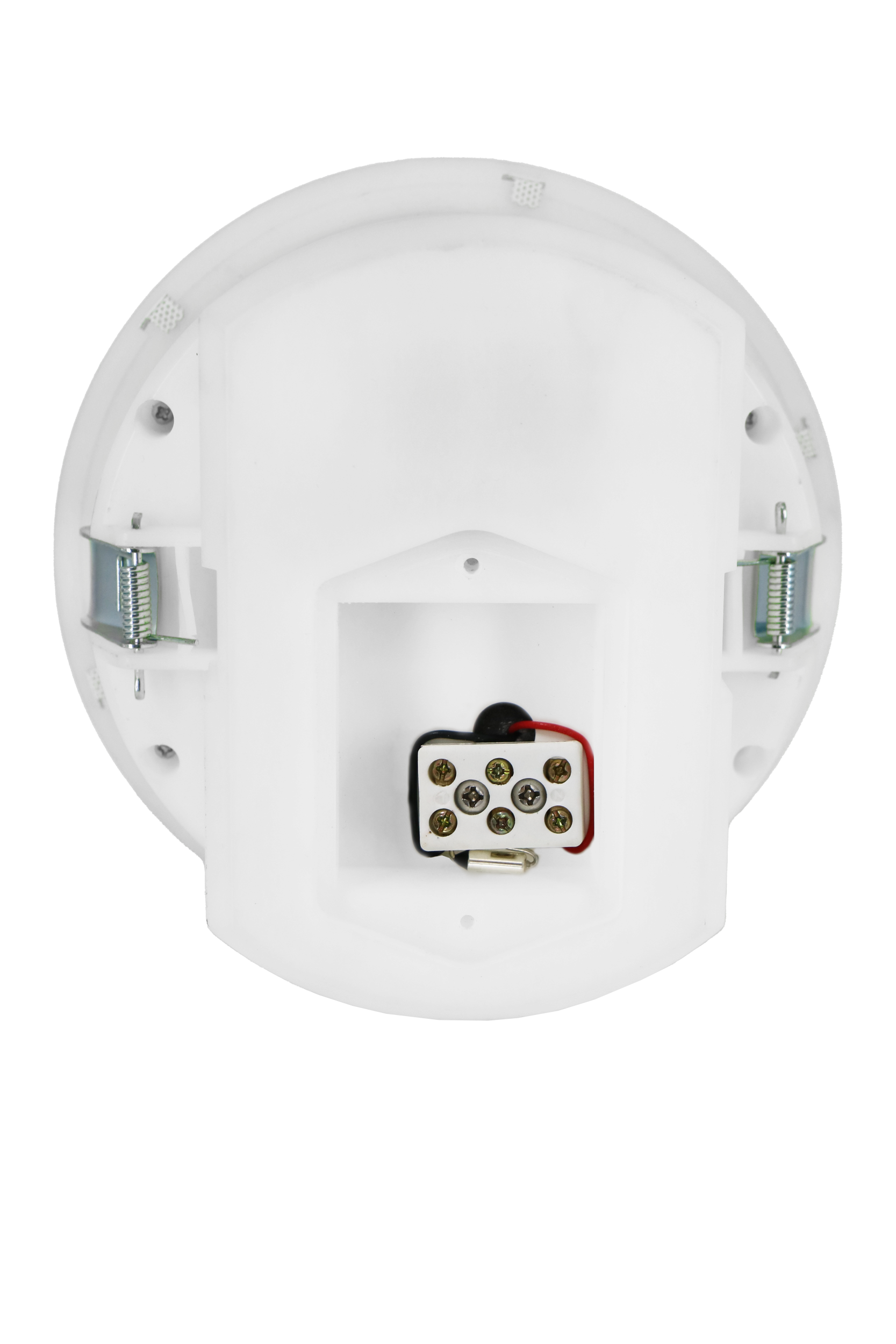

EN54-24 8” Ceiling Speaker CSK-830HAEN
2025-05-14 14:39:01
Click：
“
CSK-830HAEN is EN54-24 8” Ceiling Speaker ,one quick mount ceiling speaker, 8" 3.8W-7.5W-15W-30W with 100V transformer, ideal for background music system and PA system use.
”
Features:
- Compliant with the EN54-24 standards
- Built-in 100v/70v transformer for PA & VA system
- Commercial fireproof ceiling speaker with transformer
- Ceramic connector, fire dome, 95℃ fire-resistant cable and thermal fuse.
- Rated power output 30 /15/7.5 /3.8 W at 100V
- 8' full range fire resistant finish and rustproof speaker unit
- V0 fire resistant ABS enclosure,back box and metal grille in white
Specifications:
Model | CSK-830HCEN |
| Description | EN54-24 8” Ceiling Speaker |
| Power Taps 100V | 3.8W-7.5W-15W-30W |
| Sensitivity 1W/1m | 94±3dB |
| Frequency Response | 50-15KHz |
| Speaker Driver | 8” full range fire resistant finish and rustproof speaker unit |
| Finish | V0 fire resistant ABS enclosure,back box and metal grille in white |
| Mounting Way | In-ceiling spring clip quick installation |
| Cutout Size | Ø205mm |
| Dimensions | Ø233×142mm |
| Weight | 700g |
Installation & Wiring diagram:
Frequency Response and Impedance Diagram:
