Today, we are gonna share you good products about CMX new Volume Controller,VC-S120/VC-W120 series volume controller and VC-S120F/VC-W120F series volume controller with Relay
The volume controller is used to keep same output level for one same speaker line, because the end the speaker line signal loss is rather big, so its outputs is less, thus volume controller is added to the front of the line to lower the speaker output so as to keep the similar ambient output level for the all of the speaker in the same line.
Above volume controller can be compared with Bosch Volume controller, but at competitive price and reliable quality. It’s popular in Europe, America, Middle East and Asian market.
Feature of VC-S120 series & VC-W120 series :

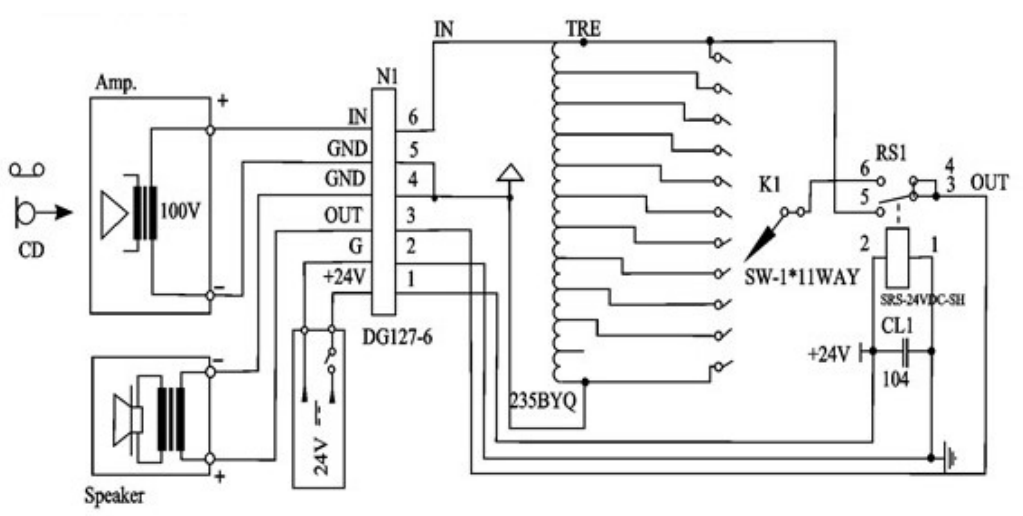

Feature of VC-S120F series & VC-W120F series :
Specification of VC-S120 and VC-S120F series:
Model | VC-S10 | VC-S20 | VC-S30 | VC-S60 | VC-S120 |
| Description | 100V Volume Control | ||||
| Rated Output | 10W | 20W | 30W | 60W | 120W |
| Line Input | 100V or 70V | ||||
| Volume Step | 11 steps | ||||
| Attenuation Steps | 8x 3 dB + off | ||||
| Total Attenuation | 24dB | ||||
| Finish | White | ||||
| Mounting Way | Surface mount or in-wall mount | ||||
| Depth | 35mm | ||||
| Dimensions | 86 x 86mm | ||||
Model | VC-S10F | VC-S20F | VC-S30F | VC-S60F | VC-S120F |
| Description | 100V Volume Control with Relay | ||||
| Rated Output | 10W | 20W | 30W | 60W | 120W |
| 24V Relay | With 24V relay | ||||
| Line Input | 100V or 70V | ||||
| Volume Step | 11 steps | ||||
| Attenuation Steps | 8x 3 dB + off | ||||
| Total Attenuation | 24dB | ||||
| Finish | White | ||||
| Mounting Way | Surface mount or in-wall mount | ||||
| Depth | 35mm | ||||
| Dimensions | 86 x 86mm | ||||
Specification of VC-W120 and VC-W120F series:
Model | VC-W10F | VC-W20F | VC-W30F | VC-W60F | VC-W120F |
| Description | 100V Volume Control with Relay | ||||
| Rated Output | 10W | 20W | 30W | 60W | 120W |
| 24V Relay | With 24V relay | ||||
| Line Input | 100V or 70V | ||||
| Volume Step | 11 steps | ||||
| Attenuation Steps | 10 x 2 dB + off | ||||
| Total Attenuation | 24dB | ||||
| Finish | White | ||||
| Mounting Way | Surface mount or in-wall mount | ||||
| Depth | 50mm | ||||
| Dimensions | 87 x 147 x 61.5 mm | ||||
Model | VC-W10 | VC-W20 | VC-W30 | VC-W60 | VC-W120 |
| Description | 100V Volume Control | ||||
| Rated Output | 10W | 20W | 30W | 60W | 120W |
| Line Input | 100V or 70V | ||||
| Volume Step | 11 steps | ||||
| Attenuation Steps | 10 x 2 dB + off | ||||
| Total Attenuation | 20dB | ||||
| Finish | White | ||||
| Mounting Way | Surface mount or in-wall mount | ||||
| Depth | 50mm | ||||
| Dimensions | 87 x 147 x 61.5 mm | ||||



CMX also provide below ten system/products to the oversea and domestic market.
1)Wi-fi & DAB+ amplifier, echo amplifiers for church and mosque sound system
2)Audio Matrix System for multiple room multiple music system
3)Zone ATT Amplifier with Call Station for multiple zone paging system
4)Multiple channel 100V & low impedance amplifiers
5)DSP Amplifier, Dante Amplifier, Dante speakers
6)100V Loudspeakers includes ceiling speaker, bathroom speaker, music speaker, music horn speaker, statdium horn speaker, column line array speakers, garden speaker, wi-fi speaker
7)IP PA System for many zone and long distance IP audio system
8)EN54-16 evacuation system & EN54-24 Certified Loudspeakers
9)Wi-Fi and 5G Conference System
10)Intelligent Smart Home Audio System
For more details, please visit our official website:www.cmxaudio.com
