100V Volume Control with Relay VC-W10F/VC-W20F/VC-W30F/VC-W60F/VC-W120F
2025-04-12 14:33:04
Click：
“
Feature:PA (Public address) system use volume control with 24V relay.Volume cont
”
Feature:
- PA (Public address) system use volume control with 24V relay.
- Volume control 10W-20W-30W-60W-120W
- Built in transformer to control the PA 100V or 70V line loudspeakers
- Power-save version
- Built-in 24V DC override relay
- Continuous rotating system
- Program selector with up to eleven channels
- Complies with international installation and safety regulations
Specification:
Model | VC-W10F | VC-W20F | VC-W30F | VC-W60F | VC-W120F |
| Description | 100V Volume Control with Relay | ||||
| Rated Output | 10W | 20W | 30W | 60W | 120W |
| 24V Relay | With 24V relay | ||||
| Line Input | 100V or 70V | ||||
| Volume Step | 11 steps | ||||
| Attenuation Steps | 10 x 2 dB + off | ||||
| Total Attenuation | 24dB | ||||
| Finish | White | ||||
| Mounting Way | Surface mount or in-wall mount | ||||
| Depth | 50mm | ||||
| Dimensions | 87 x 147 x 61.5 mm | ||||

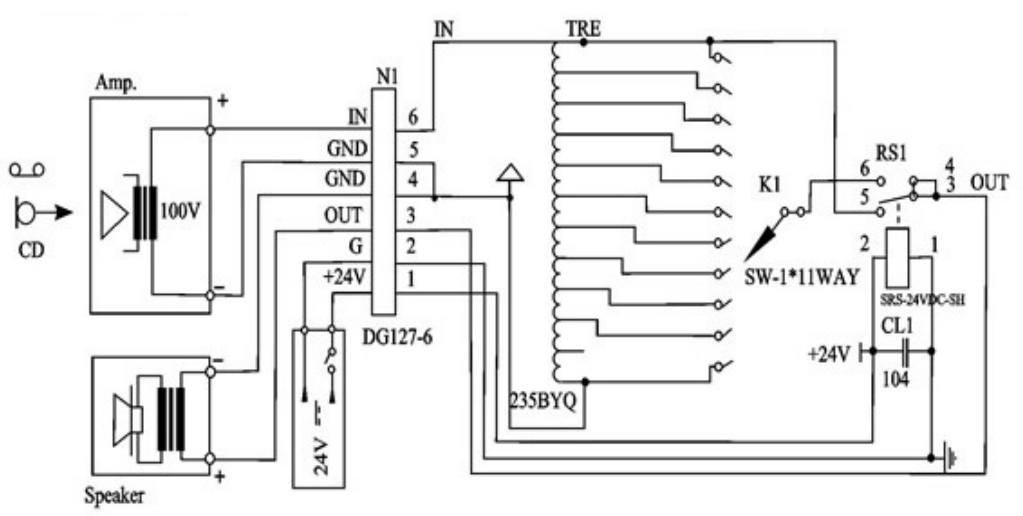

Side View, Dimension & Wiring Diagram:
