EN54-24 8” 2-Way Coaxial All Weather Loudspeaker HSK-108TSEN

Description:

The HSK-10 8 TSEN EN54-24 8' all-weather outdoor loudspeaker offers superior voice and music reproduction with a 180° x 90° coverage angle from a durable UV protected ABS construction. Outdoor level of IP66 rated for long-lasting reliability in harsh environmental conditions, this 100V/70V transformer built-in all weather outdoor loudspeaker incorporates a coaxial high-power 8' woofer and 3' tweeter that delivers full range frequency response up to 80-20KHz to meet all indoor and outdoor music applications. The all weather loudspeaker is perfect for background and foreground music, paging, and public address & voice evacuation in sports hall, football field, playground, park and outdoor live performance applications.

Feature:

• Commercial full weatherproof horn speaker with 100V/70V transformer

• Application of outdoor sound applications of sports hall, football field, playground, park

• Superior sound quality of very clear voice restoration

• Compliant with the EN54-24 EVAC standard

• Ceramic connector, 95℃ fire-resistant cable and thermal fuse

• Two way 8” woofer with 3” tweeter

• RMS 160 Watt 70V/100 V transformer with 8Ω power tapping

• Power tappings of 160W-80W-40W & 8Ω bypass

• Waterproof outdoor use level of IP66

• Outdoor weather safe connection with a recessed terminal block and waterproof seal cover

• UV protected ABS enclosure with aluminum alloy grill in black

• U-Shaped wall mounting stainless bracket is supplied

• Multiple combination of outdoor line array loudspeakers


Specification:

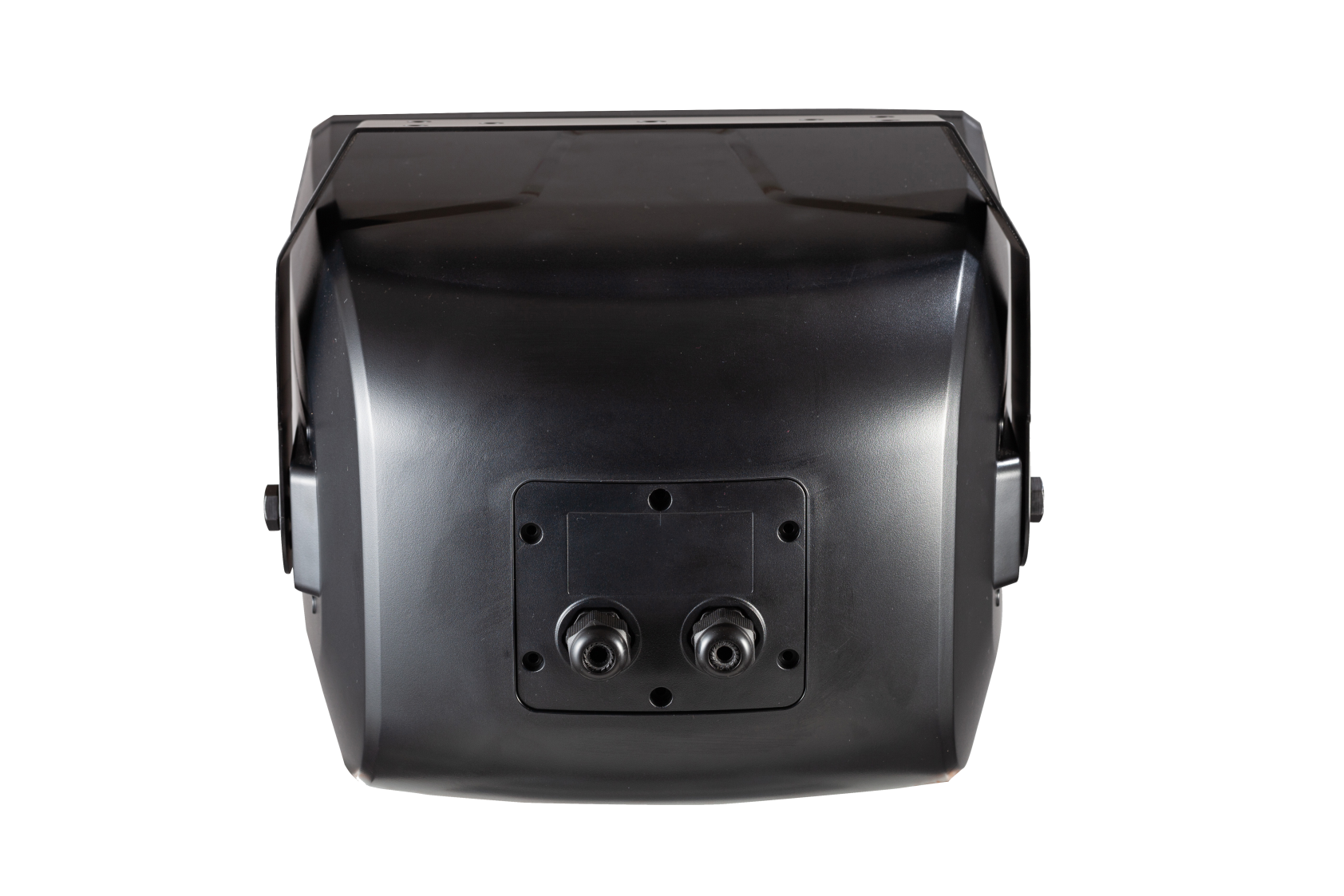

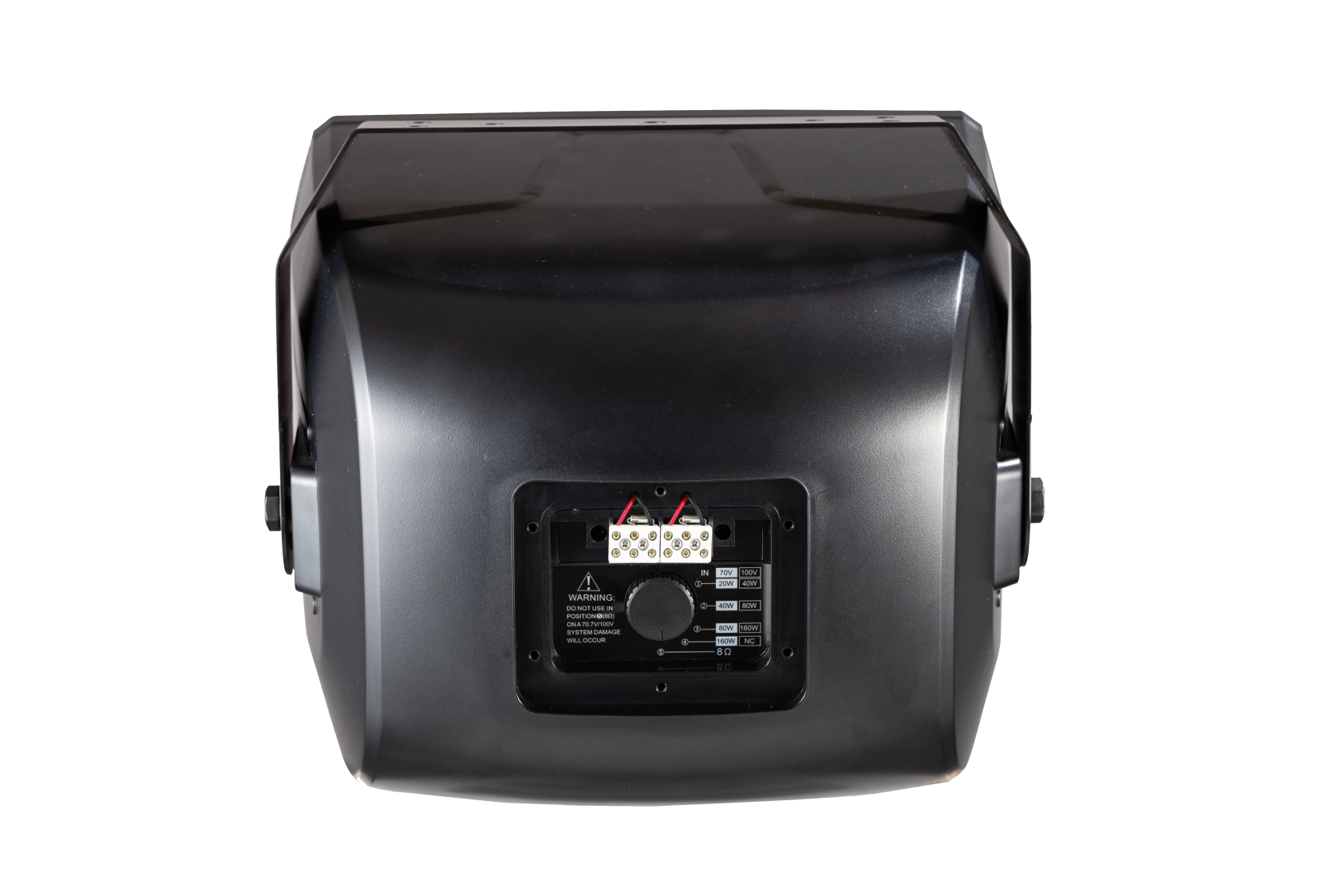

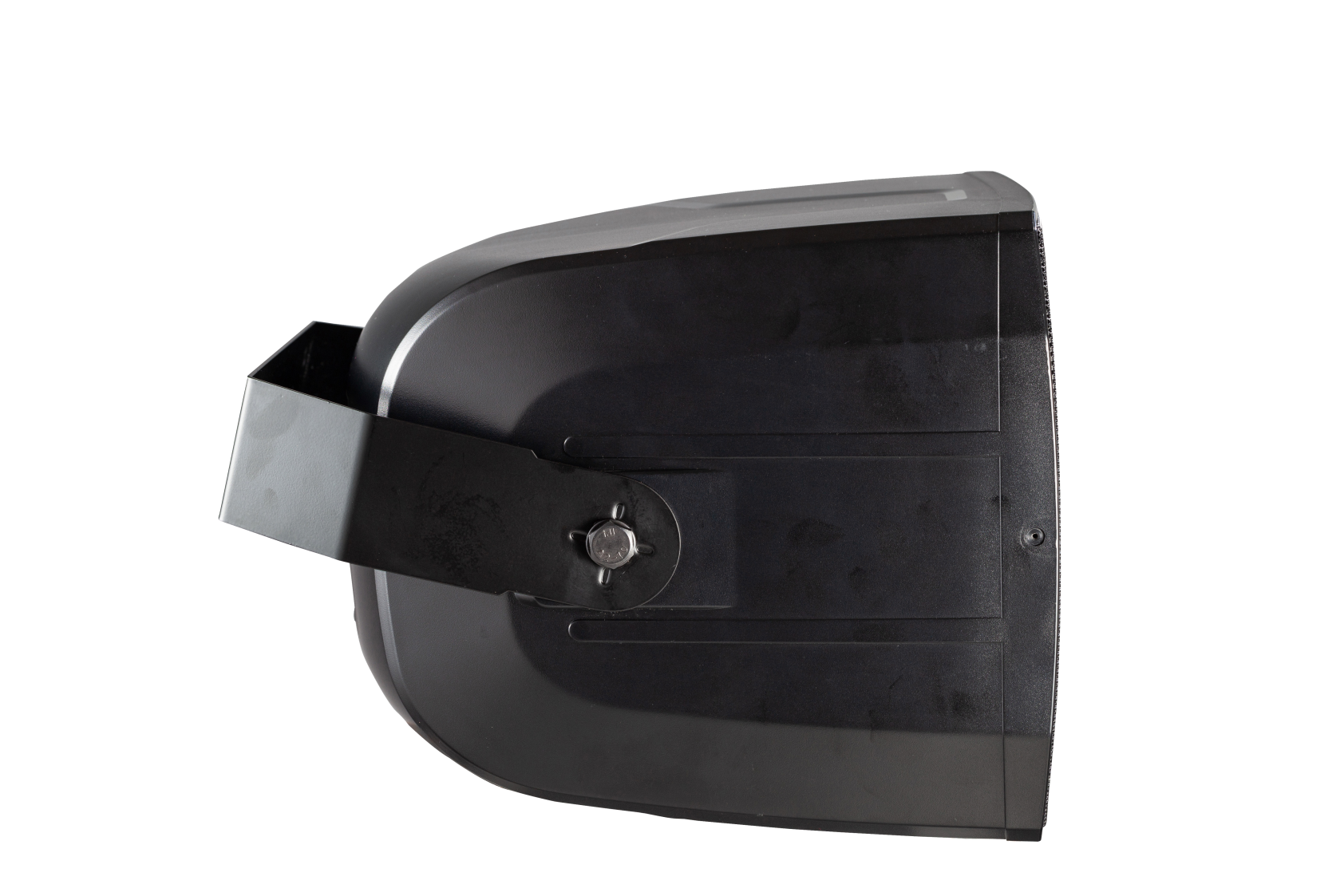

Rear & Side View:

Frequency Response VS SPL Diagrams:
