PA-6120MX Audio Matrix System for multiple room and multiple music

2025-02-28 11:33:51

Click：

“ Features:Multiple audio source and compatible with USB/SD card, FM radio, Blueto ”

Features:

Multiple audio source and compatible with USB/SD card, FM radio, Bluetooth, and line inputs to meet diverse situation requirements.
All-in-One Integrated Design. Built-in pre-amplifier, MP3 module, and FM module, eliminating the need for additional devices.
Different 6 zone of different music program and different volume output.
Supports bluetooth panel and volume control panel for localized management of individual areas.
24V mute contacts to integrate with fire alarm system
High Scalability. Expandable with additional power amplifiers.

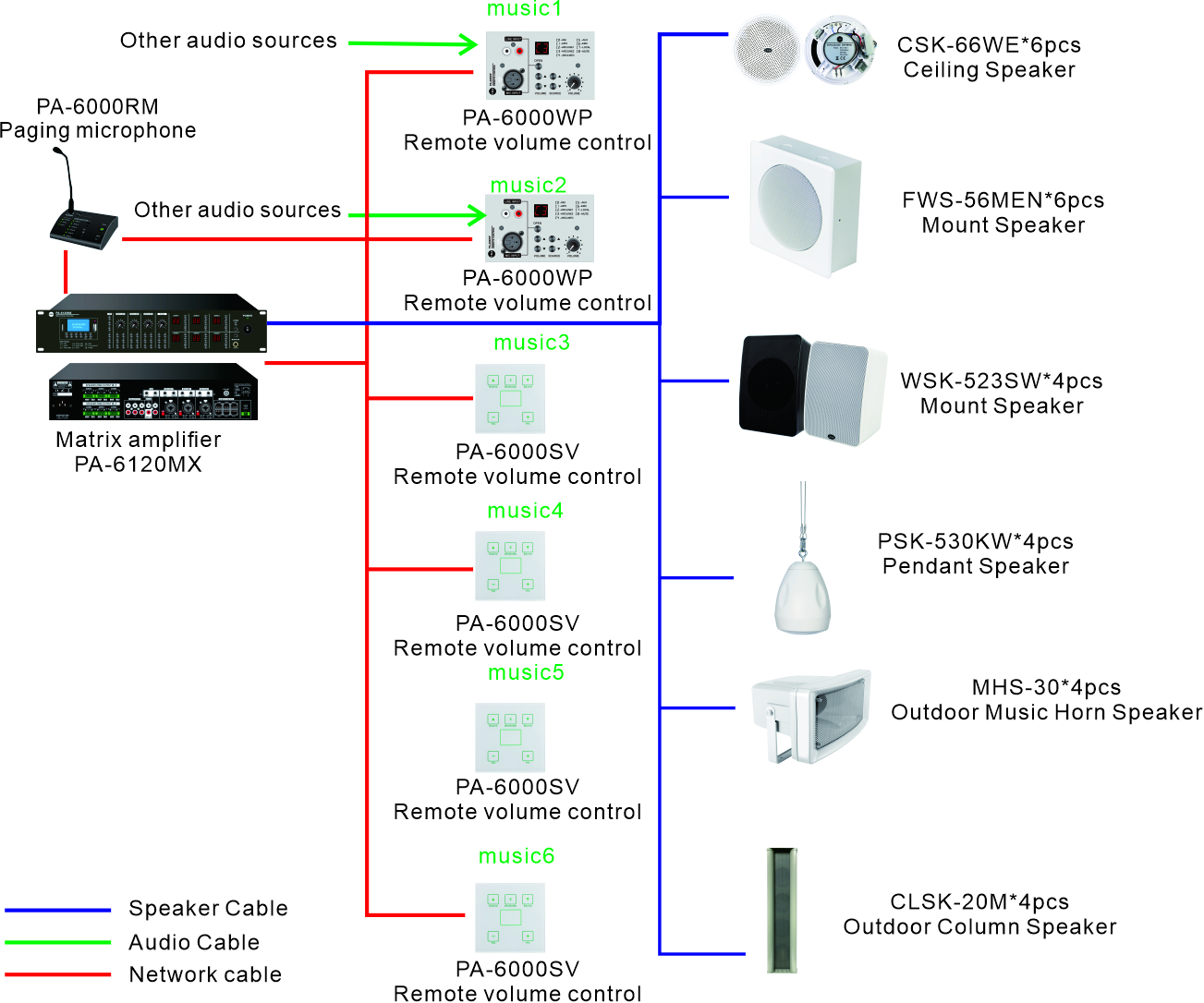

System BOQ:

Model	Feature	QTY
PA-6120MX	6 Zone Matrix mixer amplifier +USB/SD/FM/Bluetooth, 6×120W, 6 music matrix broadcasting simultaneouly, 100V/8 Ohm, with EMC input	1
PA-6000RM	6 zone remote paging microphone for matrix amplifier range	1
PA-6000SV	Remote volume control & channel selector for matrix amplifier range, with bluetooth input.	4
PA-6000WP	Remote volume control & channel selector for matrix amplifier range, with Line input,Mic input	2
CSK-66WE	6.5' Waterproof Ceiling Speaker, 6-3W, ABS, IP55, Bathroom Speaker	6
FWS-56MEN	EN54-24 5' Wall Mount Speaker, 6-3-1.5W, 100V, ceramic connector, thermal fuse and fire resistable cable, with EN54-24 certificate	6
WSK-523SW	5.25' 2-Way Wall Mount Speaker,30-15-7.5-3.75W/8ohm&100V/70V,360 Degree Rotatable Bracket Included,ABS,White	4
PSK-530KW	5.25' Pendant Speaker, 30-15-7.5W/100V+ 8 Ohm, ABS white	4
MHS-30	Outdoor Music Horn Speaker, 30-15-7.5W/8 Ohm, 100V&8 Ohms, ABS	4
CLSK-20M	2*5' Outdoor Column Speaker, 20-10W, 100V, Aluminum.	4
