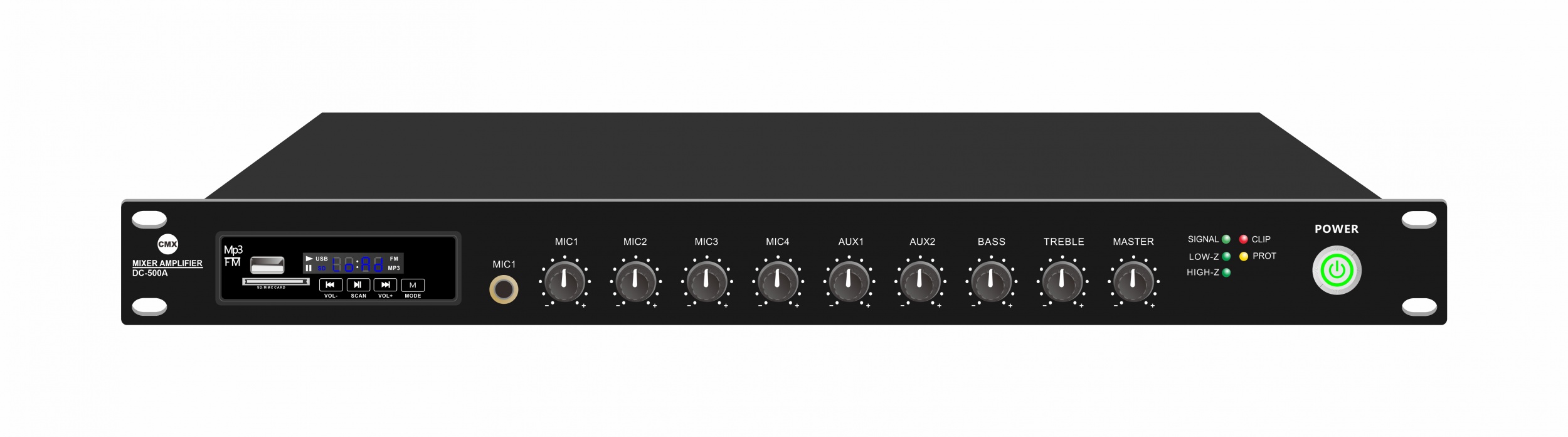

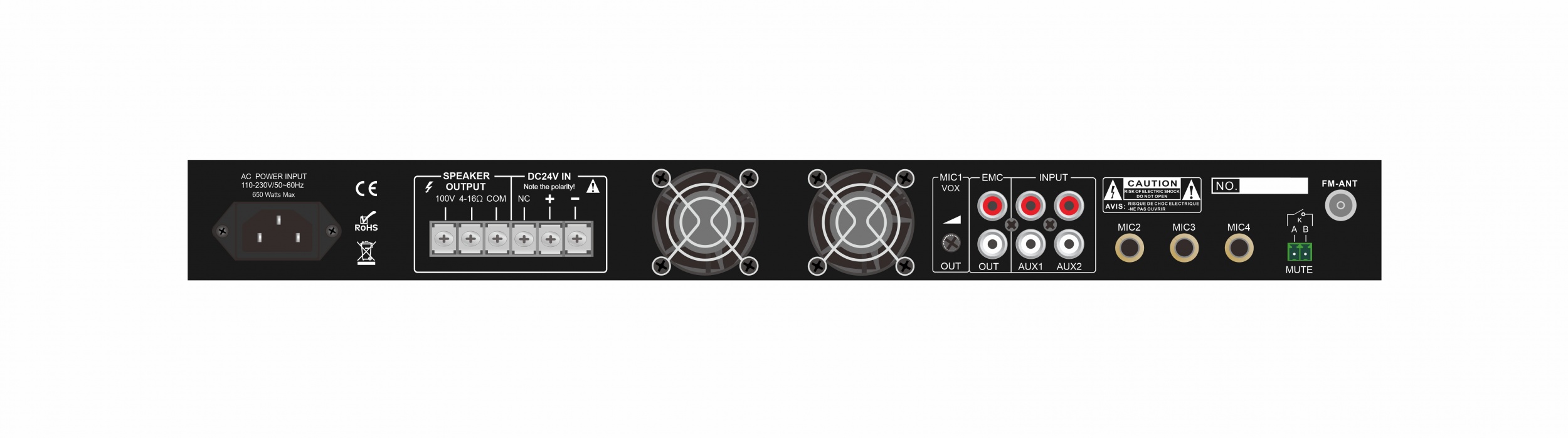

Mixer Amplifier with USB/SD/FM/Bluetooth DC-60A/DC-120A/DC-240A/DC-350A/DC-500A

2025-01-02 17:11:56

Click：

“ Features:Compact 1U size public address amplifierTabletop mixer amplifier with M ”

Features:

Compact 1U size public address amplifier
Tabletop mixer amplifier with Mp3 player, FM radio & blue tooth
Rate power output at 60W, 120W, 240W, 350W to 500W
Speaker output of 100V & 4 Ohm-16 Ohm
Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and Bluetooth
LED indicators for signal, Low-Z, High-Z, clip and protect
Priority MUTE>MIC1>EMC>Others
Mic1-4 switchable inputs unbalanced 6.3mm jack
Aux 1-2 input of RCA input and one EMC output
Volume control for Mic1-4, Aux1-2, bass/treble and master
Complete amplifier protection includes short-circuit, clip, overload and high temp
AC110V-230V switchable power supply system and 24V DC in

Specification:

Model	DC-60A	DC-120A	DC-240A	DC-350A	DC-500A
Description	Mixer Amplifier with USB/SD/FM/Blue Tooth
Rated Power Output	60W	120W	240W	350W	500W
Speaker Outputs	100V & 4 -16 Ohm
Connector	MIC switchable input 1-4 unbalanced 6.3mm jack AUX 1-2 inputs by RCA; EMC output by RCA
Priority	Mute>MIC1>EMC>others
Input	MIC1-4: 25mV; AUX 1-2, 250mV, unbalanced RCA
Output	1000mV,1KΩ
Frequency Response	50Hz-16kHz(±3dB)
S/N Ratio	Mic≥66dB; Aux≥80dB,
THD	Less than 0.5%
Protection	Short-circuit, clip, overload and high temp protection
Power Consumption	80W	150W	310W	450W	650W
Power Supply	AC230V; 50-60Hz
Dimension	484×370×45mm
Weight	4.5kg	4.6kg	4.7kg	4.8kg	5kg
