CMX Bus Station IP Audio System

2024-12-30 10:46:59

Click：

“ System Overview:The station IP broadcasting system can cope with emergencies. Th ”

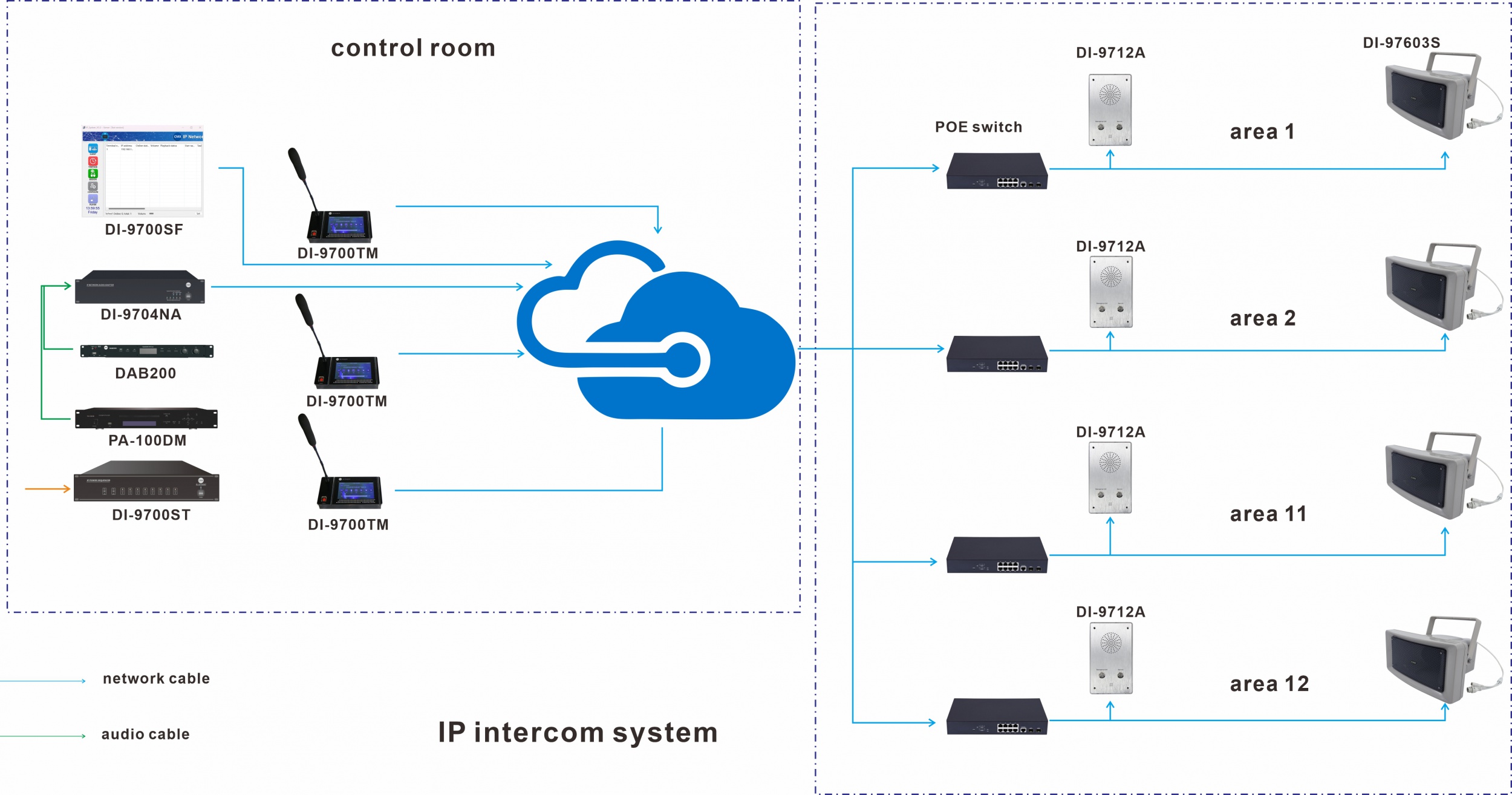

System Overview:

The station IP broadcasting system can cope with emergencies. The driver can quickly contact the station headquarters to report the current situation. Passengers waiting for the station can also contact the broadcasting headquarters for help in case of emergencies. Emergency announcements can be made in case of abnormal weather and traffic accidents, as well as daily news information.

Features:

Utilize network transmission for longer distances and enhanced stability.
Adopt POE (Power over Ethernet) for both signal transmission and power supply through a single Ethernet cable, making installation and wiring at stations more convenient.
Support remote one-to-one calls and one-to-many broadcasting between the bus terminal and various stations.
Enable broadcasting to individual station areas or multiple areas simultaneously.
Provide emergency notifications for abnormal weather or traffic incidents.
Play local news updates or product advertisements.

System BOQ
Model	Feature	QTY
D1-9700SF	IP Network PA System Software, built-in server, built-in encoder, built-in media playerbuilt-in status monitor, built-in weekly program timer, support English Windows 7,8, 10.	1
DAB200	Media PlayerwithDAB+/Bluetooth/USB/FM,1U	1
PA-100DM	DVD/CD Player with Mp3 & UsB.1.5U	1
DI-9700TM	IP Network Remote Microphone, with 7" touch screen,5W monitor speaker, USB input tobroadcast pre-recorded voice message to different zoens, control up to 6,000speaker zones	3
DI-9712A	IPIntercom Slave Station,Double button with emergency calling and service,built inspeaker and microphone,SupportDC12V or POE power supply,lP54	20
D1-97603S	Outdoor IP POE Music Horn,built-in amplifier, 30W power output, built-in iP decoder.decode network audio to the amplifier and speaker, one CAT5 or CAT6 cable for datacontrol and power, system capacity of 1200 units, compatible with lEEE 802.3at.support existing LAN/WAN network.	20
DI-9704NA	IP Network Audio Encoder & Decoder,support 2 Mic in, 2 Aux in, 1 Aux out.	1
DI-9700ST	IP Power Sequencer,8 Channels D1-9704NA-P Network Audio Encoder & Decoder	1
