Hotel PA & Voice Evacuation System Solution
2024-11-27 14:31:33
Click：
“
Description：The traditional analog public address system can no longer meet the
”
Description：
The traditional analog public address system can no longer meet the hotel price update, business information, special announcements and emergencies, etc.. With the development of Internet technology, the networked public address system has emerged. The system integrates background music, public address, announcement, and emergency to meet the hotel's demand.
Feature:
- Users can remotely set the partition, group, announce information and control.
- Support SD card built-in independent hotel voice evacuation and emergency evacuation information
- Support independent zone volume control, which can control the volume of BGM on each floor.
- Built-in 6 zone AB speaker line low impedance supervision and support DA-500 amplifier backup switching function
- The hotel rooms use the A5D smart player set, which supports multiple audio source and volume control for easy operation.
- Good sound quality FCS-66FEN and FCS-56CEN ceiling speakers to play graceful music ,which can bring guests better enjoyment and a more pleasant experience
- When there is a power outage，EVAC-500BC can provide power for broadcasting equipment, Timely announce emergency notices, evacuation instructions to ensure everyone's safe and orderly evacuation

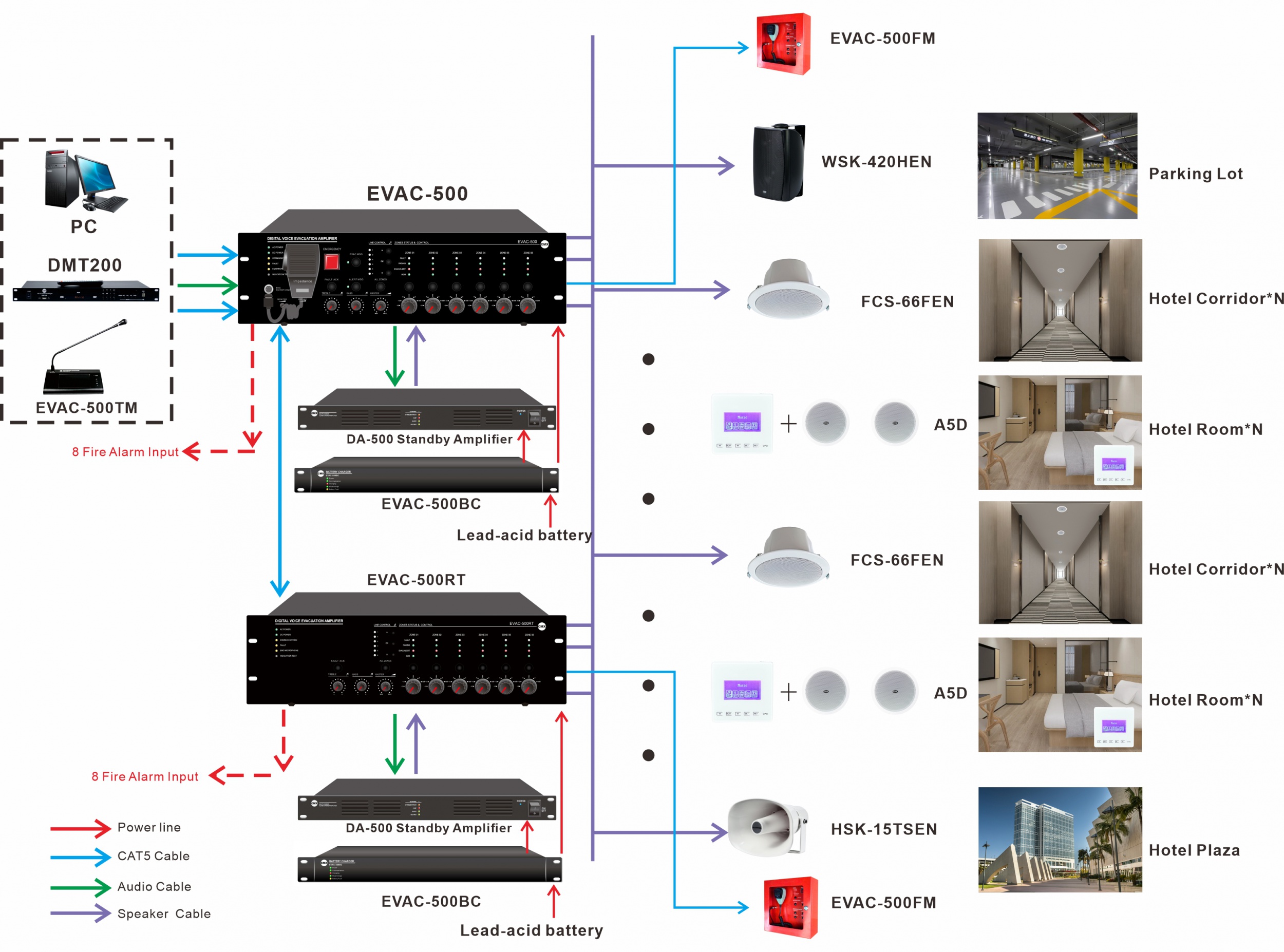

System BOQ
| Model | Feature | QTY |
EVAC-500 | 6 Zone EVAC Controller, built-in 500W class-D amplifier, built-in EVAC and alert voice message by SD card, with fireman microphone, with AB speaker line low impedance supervision, with amplifier auto changeover into standby when fault, with extension amplifier connector, AC and DC battery operation. EN54-16 certificate | 1 |
| EVAC-500RT | 6 Zone Router, built-in 500W class-D amplifier, with 6 zone speaker outputs and volume control, receive sources and fire alarm message from master controller, with AB speaker line low impedance supervision, with amplifier auto changeover into standby when fault, with extension amplifier connector, AC and DC battery operation. EN54-16 certificate | 1 |
| A5D | In-Wall Amplifier with Pair Speaker Set, 15W+15W, USB/FM/Bluetooth/Remote Control | 20 |
| DA-500 | Single Channel Class-D Amplifier, RMS 500W, 100V & 8 Ohm, 1U | 2 |
| WSK-420HEN | EN54-24 4" 2-Way Wall Mount Speaker, 20-10-5-2.5W/100V+ 8 Ohm, phoenix connector, thermal fuse and fire resistant cable, with EN54-24 certificate | 7 |
| FCS-66FEN | EN54-24 6.5" Ceiling Speaker with Fire Dome, 6-3-1.5W, 100V, ceramic connector, thermal fuse and fire resistable cable, with EN54-24 certificate | 42 |
| EVAC-500TM | Remote Paging Microphone, touch screen type, 120 zones capacity, each system can connection up to 32 remote microphone, DC24V power supply, EN54-16 certificate | 1 |
| HSK-15TSEN | EN54-24 Outdoor Horn Speaker, 15-7.5-3.8W/100V+ 8 Ohm, ceramic connector, thermal fuse and fire resistant cable, with EN54-24 certificate | 5 |
| EVAC-500FM | Fireman Microphone, built-in EVAC/Alert message, program button setting, capacity is of 120 zones, DC24V power supply, with door and lock. EN54-16 certificate | 2 |
| EVAC-500BC | Battery Charger and 24V Power Supply, two 15A outputs and one 15A-200A output, AC115V-230V, with RS485 port EN54-16 certificate | 2 |
