EVAC-8500 24 zone Fire alarm evacuation system for Apec Hotel

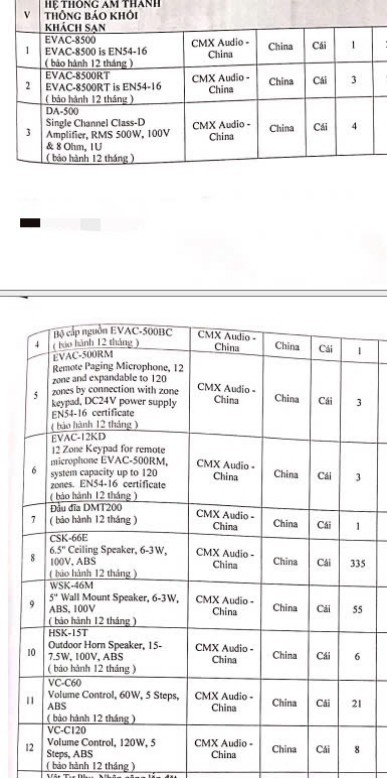

System BOQ

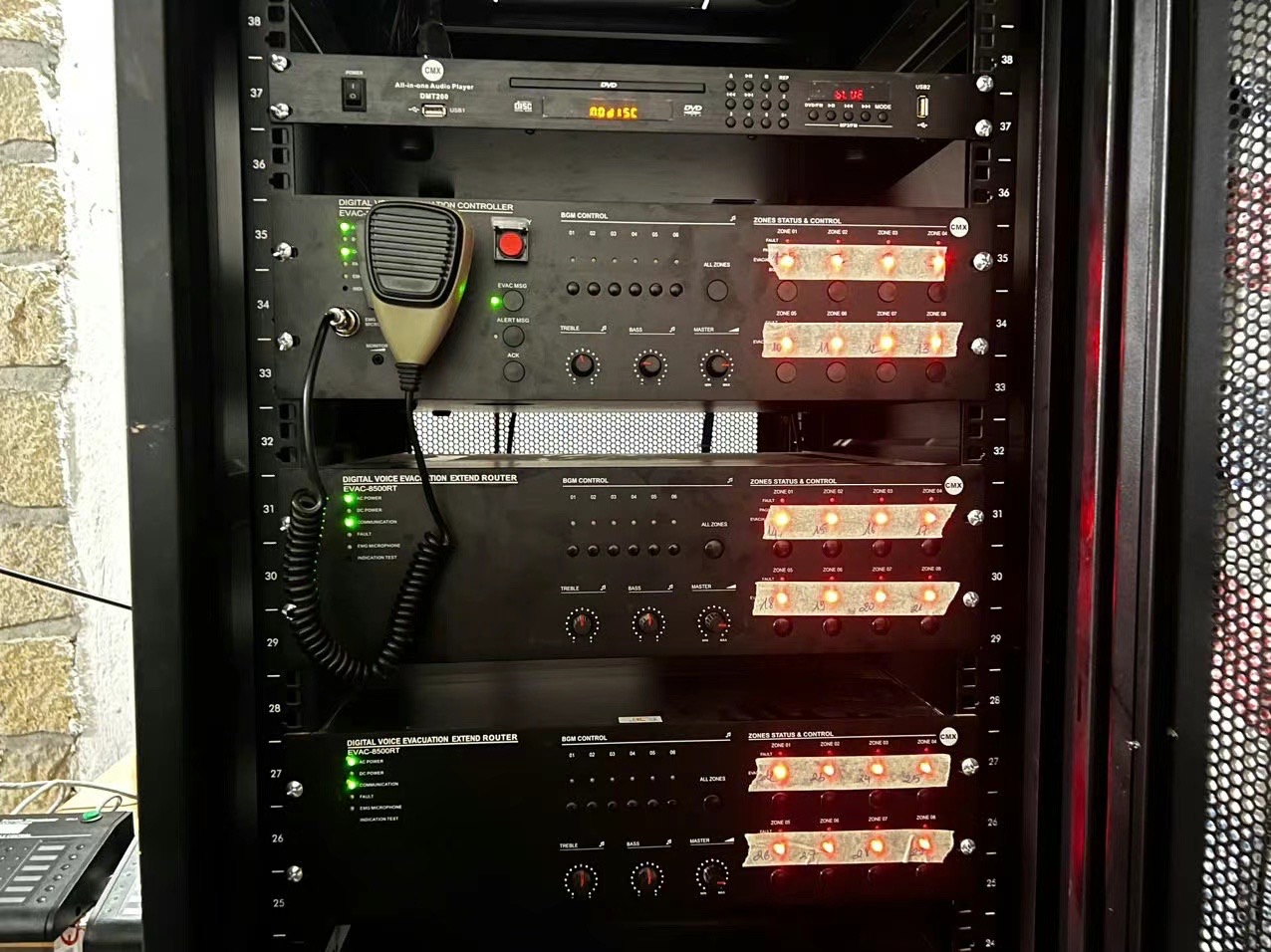

We CMX Audio honorably supply EVAC-8500 system product for esteemed Vietnam customer to install audio system for great APEC VietNam Park In Da Nang City. This EVAC-8500 system play back ground music to every aisle and hall in hotel, EVAC remote page mic speaking and Emergency alarm message with howling have high priority and are able to cut off playing BGM music to send urgent announcement and guide people to escape from fire danger rapidly.

We support project whole system design based on archetechture speaker allocations, remote online debug when installer needs. We guide installer to support maintaince for hotel when need. The voice evacuation controller shall be pre-set through the supplied software over microphone number, zone number, zone loading, fire alarm mode, alert/EVAC message zone output, AC/DC etc, then synchronized the setting to master controller and router. The voice evacuation system strictly follow the Construction products Regulation EN54-16:2008 Voice Alarm Control and Indicating Equipment.

Advantage of our EVAC-8500 system:

●One system could connect total 8 EVAC controllers to controll for 64 zone speakers maximumly

●Remote page mic could select zone and page call to all system zone speakers. And software configure play sound sorce for zones. Achieve to central control

●Each zone could extend power by adding our model PA-100VT with our one channel /one zone amplifier models

●System products acquire EN54-16 certificate as below, recognized by EU, US reputed customers in world

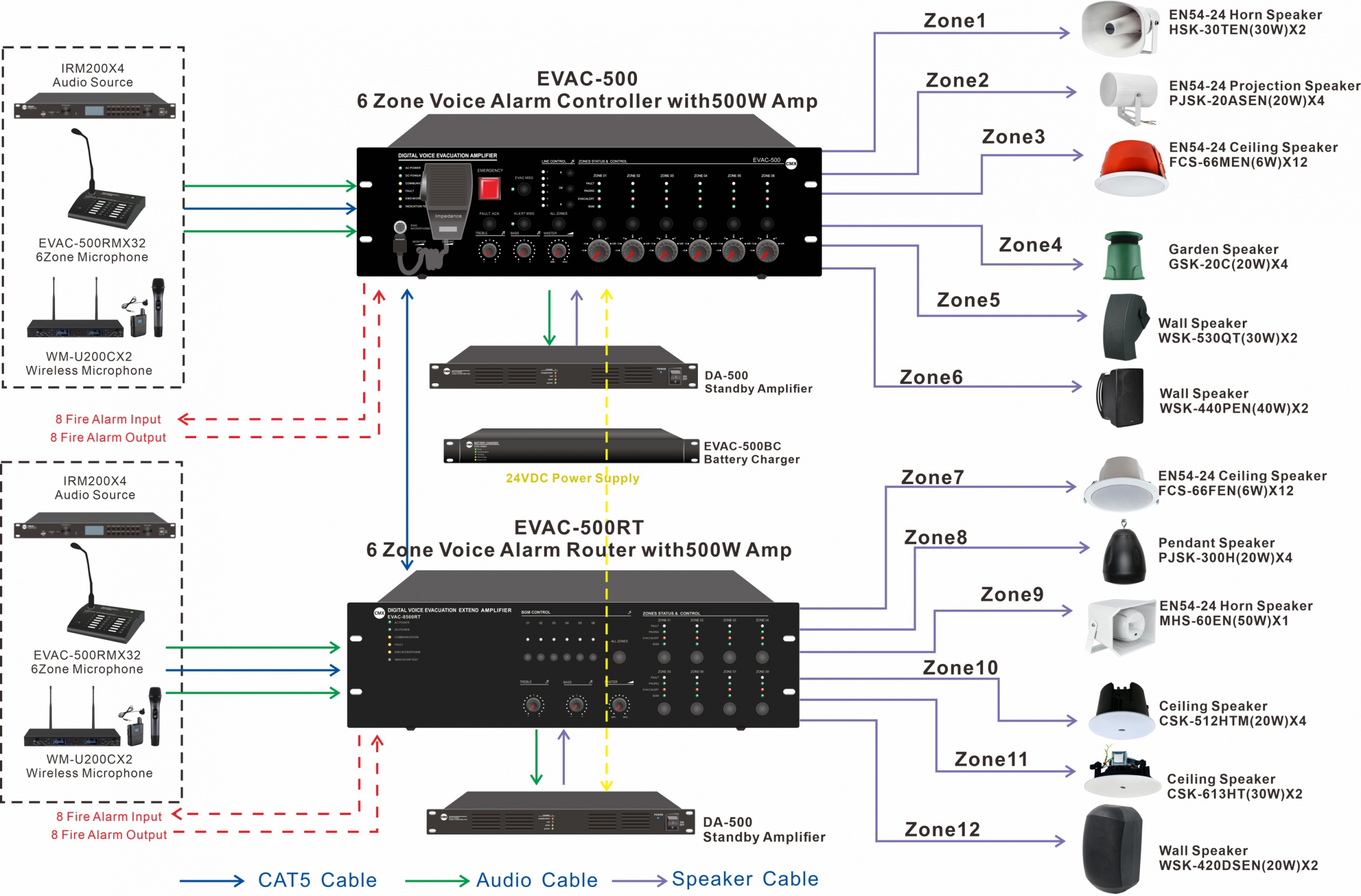

Connect diagram sample
