Frameless Ceiling Speaker 5"/ 6"/ 8" CSK-56HC/66HC /810HC
2024-10-16 14:59:24
Click：
“
Features:Commercial ceiling speaker with 100V transformerBuilt-in 100v/70v trans
”
Features:
- Commercial ceiling speaker with 100V transformer
- Built-in 100v/70v transformer for PA & VA system
- Rated power output 10W-5W at 100V
- 8' full range paper driver unit
- ABS enclosure,aluminum grille in white and with ABS back box
- In-ceiling quick installation by spring clip
Specifications:
Model | CSK-56HC | CSK-66HC | CSK-810HC |
| Description | 5” Frameless Ceiling Speaker | 6” Frameless Ceiling Speaker | 8” Frameless Ceiling Speaker |
| Power Taps 100V | 3W-6W | 3W-6W | 10W-5W |
| Sensitivity 1W/1m | 93±3dB | 93±3dB | 93±3dB |
| Frequency Response | 200-15KHz | 100-15KHz | 100-15KHz |
| Speaker Driver | 5” full range paper driver | 6” full range paper driver | 8” full range paper driver |
| Finish | ABS enclosure,aluminum grille in white and with ABS back box | ABS enclosure,aluminum grille in white and with ABS back box | ABS enclosure,aluminum grille in white and with ABS back box |
| Mounting Way | In-ceiling spring clip quick installation | In-ceiling spring clip quick installation | In-ceiling spring clip quick installation |
| Cutout Size | Ø140mm | Ø170mm | Ø205mm |
| Dimensions | Ø160×92mm | Ø186×110mm | Ø233×142mm |
| Weight | 360g | 520g | 700g |

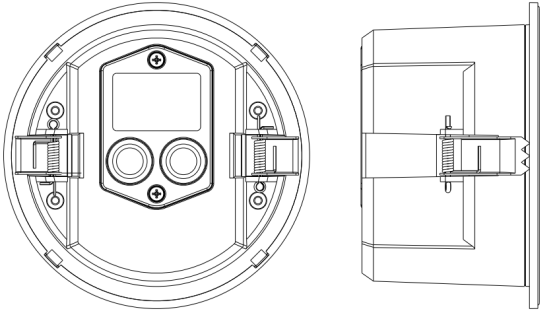

Installation & Wiring diagram:

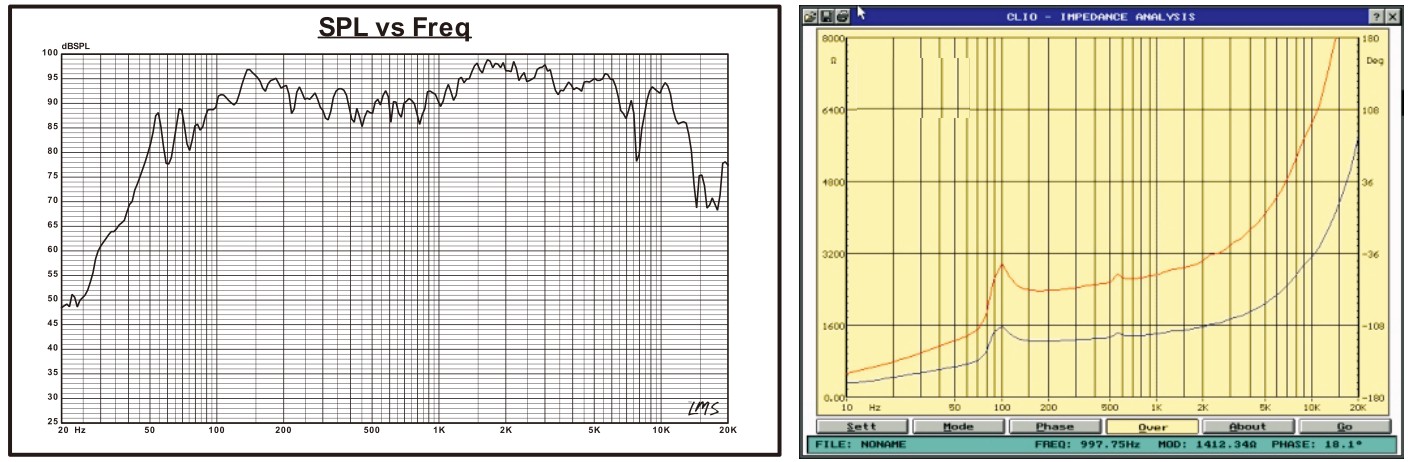

Frequency Response and Impedance Diagram:
