Mosque DSP Sound System Solution

2024-08-23 10:02:29

Click：

“ It adopts PA system design and is equipped with a custom-programmed player to meet the audio needs of the mosque's five prayers a day. It is equipped with multiple sets of wireless microphones to meet the speaking needs of different indoor and outdoor scenes. The microphone has a reverberation function to make the sound more pleasant. It adopts a fire linkage alarm configuration and can be linked with the fire protection system. In case of danger, it can play alarm audio to evacuate the crowd an ”

Clear Audio Quality: Provide high-quality sound output, ensuring that prayers and sermons are clearly heard in every corner of the mosque, with minimal echo and noise interference.
Wide Coverage: Cover the entire mosque area, including both indoor and outdoor spaces, ensuring that worshippers can hear clearly regardless of their location.
Versatility: In addition to broadcasting prayers, systems can be used for emergency announcements, playing background music, and other multimedia content, enhancing the functionality of the mosque.
Remote Control and Management: Support remote control and management, allowing operation and adjustments via smartphones or computers, offering convenience and flexibility.
Customized Design: Can be customized to meet the specific needs of the mosque, selecting the most suitable equipment and configuration to accommodate different sizes and structures.
Stability and Reliability: Typically highly reliable, capable of maintaining stable performance over long periods of use, reducing maintenance costs and time.
Easy Installation and Expansion: Designed for easy installation and can be expanded as needed, with the addition of new speakers or audio sources.
Safety: Usually equipped with protective measures to ensure they continue to operate during power fluctuations or other issues, ensuring that prayers are not disrupted.

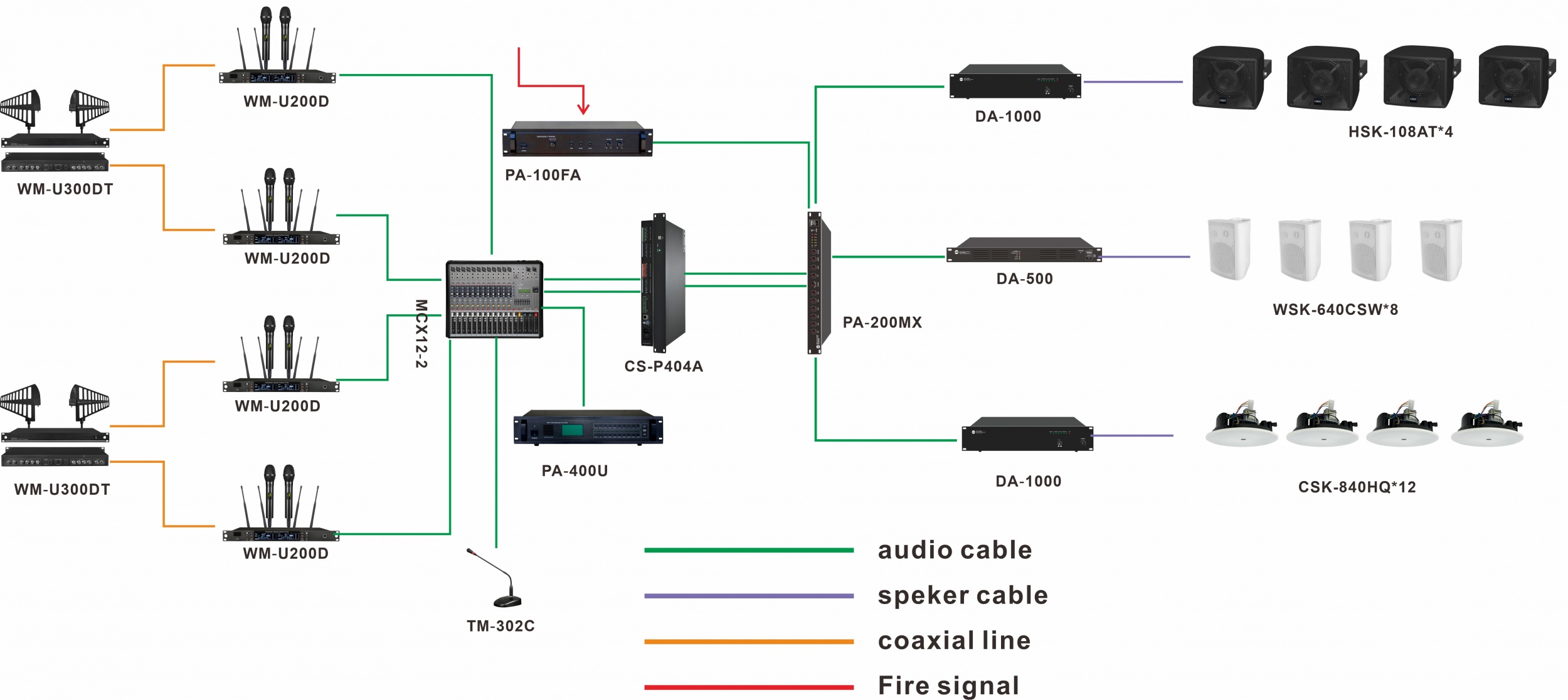

System BOQ
Model	Description	QTY
MCX12-2	12 Channel Mixer, with USB, 16 DSP, 3 Band EQ, 48V phantom power,Aux send,2 group output, monitor out	1
PA-400U	8 Zone Weekly Timer with Mp3 & USB	1
WM-U200D	UHF Wireless Microphone System, Two channel,Handheld Mic or bodypack receiver with lavalier Mic,510-960MHz,adjustable frequency,max received signal distance 108m	4
WM-U300DT	UHF Antenna Distribution System support 2-4 UHF wireless series or other series of automatic selective receivers, sharing a pair of antennas,support 5m cables	2
PA-200MX	Stereo 10 Channel Mixer, Mic1-6 XLR with phantom power, Line1-4, Balanced XLR stereo output	1
HSK-108AT	8” 2-Way Coaxial All Weather Speaker,150-75-37.5W 100V/70V with 8Ω bypass	4
CS-P404A	4 In/4 Out DSP, built-in EQ, three way crossover, DSP, Effector, Limiter	1
DA-1000	1000W High Wattage PA Power Amplifier,Class D,4-8Ω & 100V/70V,2U	2
DA-500	Single Channel Class-D Amplifier, RMS 500W, 100V & 8 Ohm, 1U	1
PA-100FA	Fire Alarm Panel with Recorder	1
PA-200MX	Stereo 10 Channel Mixer, Mic1-6 XLR with phantom power, Line1-4, Balanced XLR stereo output	1
WSK-640CSW	6.5' 2-Way Wall Mount Speaker, 40-20-10W 8 Ohm & 100V, 100V, ABS, white	8
CSK-840HQ	6.5” 2-Way Premier CeilingSpeaker,40W/20W/10W,100V,NEW	12
TM-302C	Condenser Microphone, DC9V or AC power adapter, with chime, ABS base	1
