CMX Audio Install IP Speaker for Thailand Rajamangala University of Technology Thanyaburi

CMX Audio Installed 30 Nos Outdoor IP Column Speaker IP-8030CS, the system is used by Thailand Rajamangala University of Technology Thanyaburi for BGM & paging system use along the river tunnel. It is fully integrate with IP CCTV through Wi-fi network up to 38kms, visit us for more IP based sound & paging solutions.

Digital IP public address system for university sound system

Digital IP public address system include background music system, paging system
With remote software for centralized control sound system over IP
School master talk to different rooms and different areas
Control room technician can monitor every IP equipments working or failure status
Playground of large area could be covered by IP speaker at minimum cable layout
Live speech, pre-recorded message announcement and background music system
Online music and paging system streaming.
Different zone of different music & paging system.
System capacity up to 600 zones.
Outdoor IP speaker built-in class-D amplifier.
Minimum cable and minimum equipment.
Capacity to integration with outdoor wireless router system.
Capacity to integration with outdoor IP CCTV system.
Flexible matrix background music system to different zone loudspeakers with different music programs simultaneously.
Different call stations enable to speech to different zone loudspeakers simultaneously.
Low cost for set up and no cost for maintenance. The system could be built up over existing LAN/ WAN & Internet network, no need dedicated network.
Free on-line system set up and diagnose, each equipments status online monitoring and failure alert.
Capacity of input local analog sources from terminal adapter directly over network.
Network data delay is less than 30 milliseconds.
Sound output quality level nearly to CD level of 44.1k, 16bits.
Each online program takes only about 0.1Mkbps band width.
Backup system of server and embedded controller to standby the system to avoid any failure.
Industrial chip to support 24 hours run on and anti-virus technology.
Optional function: Telephone paging system, power management, program scheduled control, duplex two way intercom system, inter-work with third party system like CCTV, door access, parking system passenger message system etc.

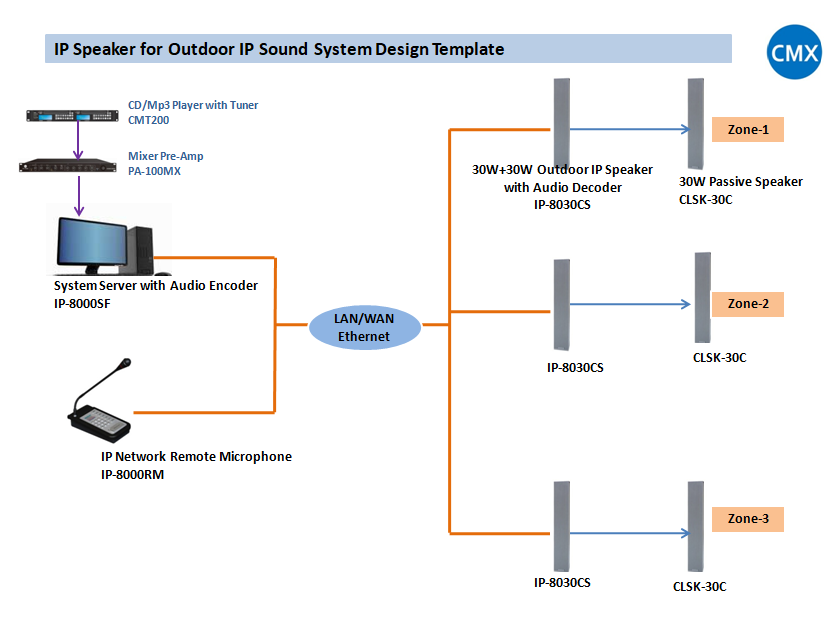

Outdoor IP PA PA System Bill of Material:

IP-8000SF, System Sever Software×1 Set
IP-8000MC, IP PA System Master Controller×1 Set
IP-8000RM, IP Remote Paging Microphone×1 Set
CMT-200, CD/Mp3 Player with Tuner×1 Set
PA-100PR, Mixer Pre-Amplifier×1 Set
IP-8030CS, IP Based Outdoor Powered Column Speaker×30 Units
CLSK-30C, 30W outdoor passive column speaker×30 Units
